Home IEC 61386 Conduit System Caja Chuqui / 3 × 6 Metal Box

Velkor IEC Conduit Boxes

Caja Chuqui / 3 × 6 Metal Box

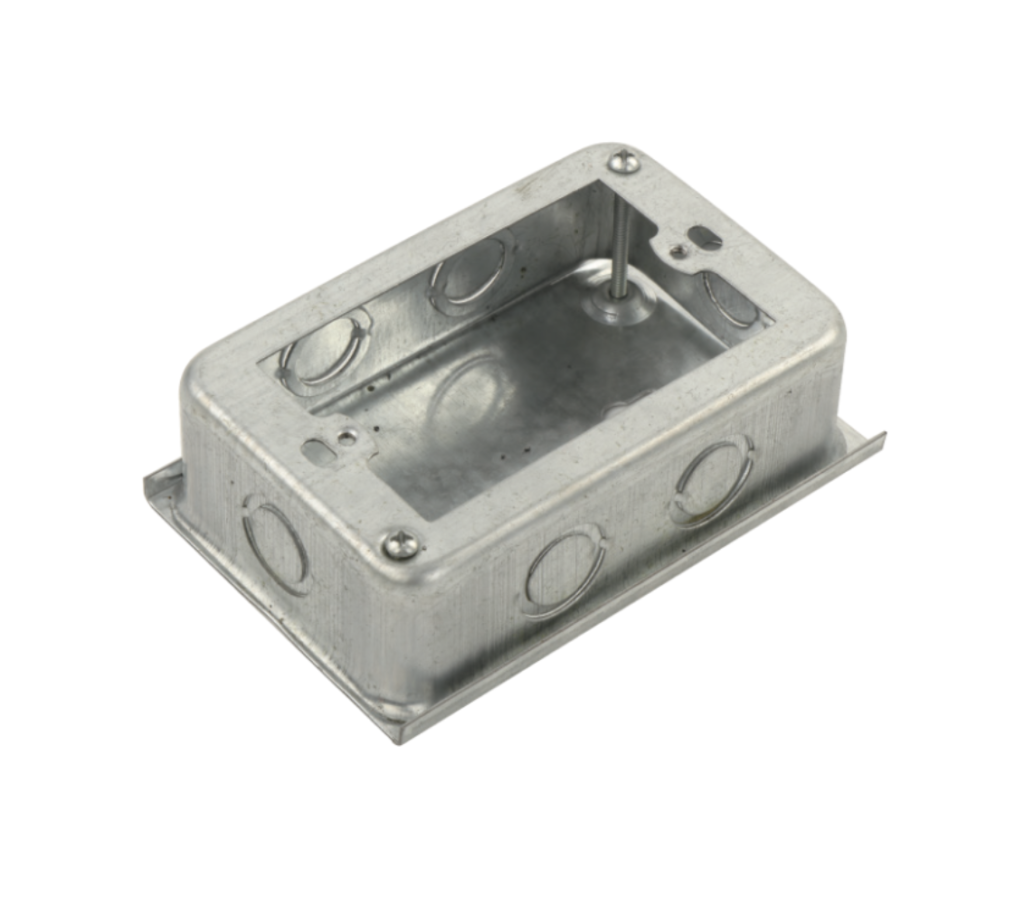

Velkor universal conduit box for the Chile market is formed from steel with a hot-dip galvanized finish. Its 118 × 76 × 40 mm format provides a single compact enclosure option, with a pre-galvanized construction available as an ordering alternative.

A RECOGNIZABLE CHILEAN FORMAT FOR COMPACT WIRING POINTS. The Caja Chuqui is a compact rectangular electrical-box format used in the Chilean market. Its shallow 118 × 76 × 40 mm body provides a defined wiring point where a larger square or rectangular junction box would occupy unnecessary space. VK-001 combines this recognizable local format with […]

MATERIAL

Steel

FINISH

Hot-dip galvanized

LENGTH

TRADE SIZES

118 × 76 × 40 mm

Catalog No.

VK-001

O.D

Wall

Length

ADD TO INQUIRY

REQUEST A QUOTE

A RECOGNIZABLE CHILEAN FORMAT FOR COMPACT WIRING POINTS.

The Caja Chuqui is a compact rectangular electrical-box format used in the Chilean market. Its shallow 118 × 76 × 40 mm body provides a defined wiring point where a larger square or rectangular junction box would occupy unnecessary space.

VK-001 combines this recognizable local format with multiple conduit-entry positions around the box body. Keeping the established Caja Chuqui dimensions and catalog identity helps distributors and project buyers distinguish it from generic utility boxes that may have a different footprint, depth or mounting arrangement. Hot-dip galvanized is the standard finish shown for VK-001, with a pre-galvanized version also available.

Chile-market Caja Chuqui format gives local buyers a familiar and clearly identifiable product type.
Compact 118 × 76 × 40 mm dimensions suit wiring points where a larger junction box is unnecessary.
Multiple conduit-entry positions provide flexibility when coordinating the box with the surrounding raceway layout.
Single VK-001 catalog reference simplifies identification during inquiry, quotation and order confirmation.

TYPICAL APPLICATIONS

Compact Conduit Junction Points

Surface Raceway Connections

Small Wiring and Device Locations

Installations Service Areas

Chile-Market Electrical Systems

Specifications

Caja Chuqui

VK-001

3 x 6 Metal Box

Standard

IEC61386

Material

Steel

Finish

Hot-dip galvanized

Click a row to add it to your inquiry.

Catalog No.	Product Type	Dimensions (L × W × H)	Standard Steel Sheet Thickness	Standard Finish	Alternative Finish
VK-001	Caja Chuqui / 3 × 6 Metal Box	118 × 76 × 40 mm	0.70 mm	Hot-dip Galvanized	Pre-galvanized Available

The value shown is the standard steel sheet thickness and does not include the galvanized coating thickness. Other steel sheet thicknesses can be customized according to project requirements. Dimensions and thicknesses are subject to normal manufacturing tolerances.

Click the row to add this catalog number to your inquiry basket.

CUT SHEET (PDF)

Dimensions are nominal and subject to standard manufacturing tolerances.

Packaging quantities may vary by catalog number. Please confirm project-specific requirements before ordering.
