Home EMT Conduit System EMT Coupling – Compression Type – Zinc Die Cast

Velkor EMT Fittings

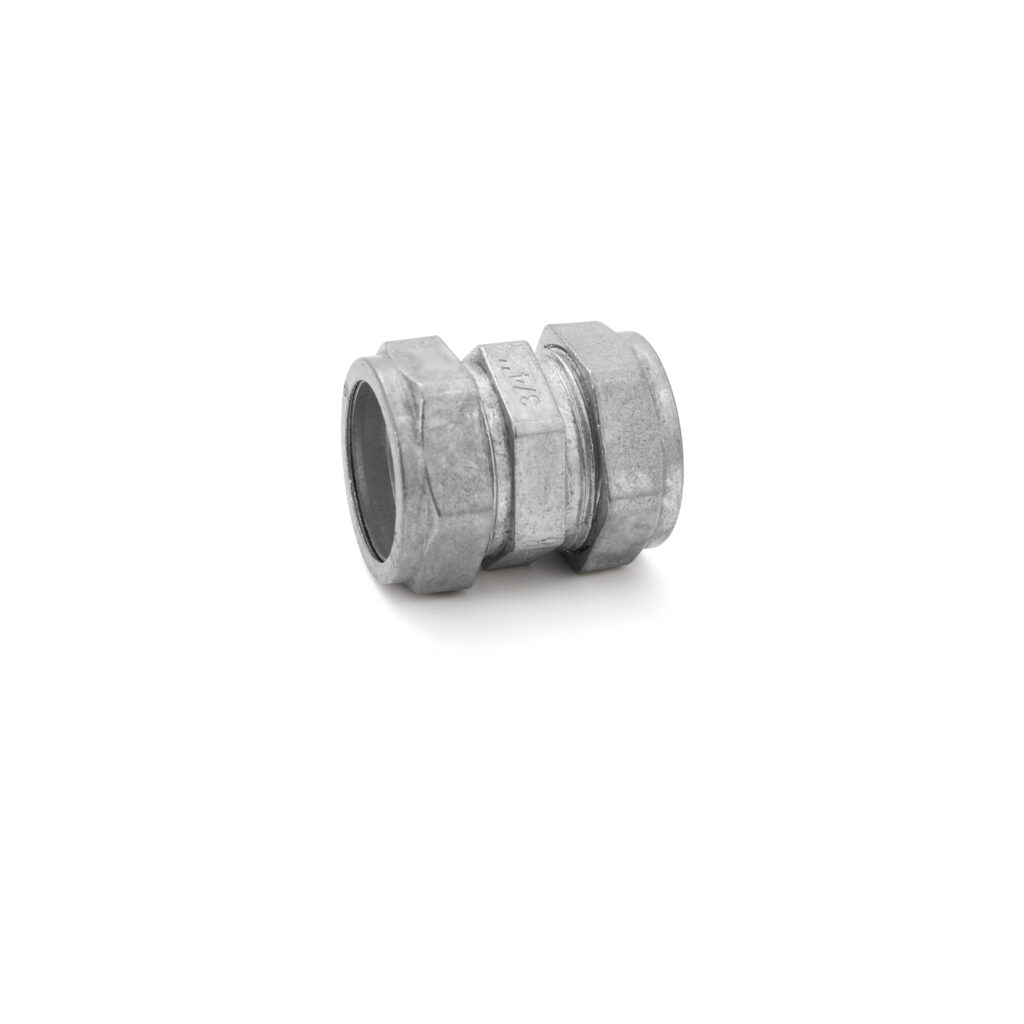

EMT Coupling – Compression Type – Zinc Die Cast

Velkor zinc die-cast compression EMT couplings join two lengths of EMT using independently tightened compression nuts. The compression mechanism grips around each conduit end to support alignment without exposed set screws, while the zinc die-cast body provides a clean, compact profile.

A CLEANER WAY TO CONTINUE THE RUN When a straight EMT run needs to be extended, a compression coupling provides a clean alternative to a set-screw connection. Tightening the two compression nuts secures each conduit end around its circumference, while the central body keeps both sections positioned along the same line. The steel body offers […]

MATERIAL

Zinc Die Cast

FINISH

Natural Zinc Alloy Finish

TRADE SIZES

1/2" – 4"

Catalog No.

VK-611–VK-620

ADD TO INQUIRY

REQUEST A QUOTE

Need technical details? Download Spec Sheet (PDF, 4 MB)

A CLEANER WAY TO CONTINUE THE RUN

When a straight EMT run needs to be extended, a compression coupling provides a clean alternative to a set-screw connection. Tightening the two compression nuts secures each conduit end around its circumference, while the central body keeps both sections positioned along the same line.

The steel body offers dependable mechanical strength, and its electro-galvanized finish provides surface protection for indoor installations. With no projecting set screws, the completed connection also maintains a smoother external profile along the conduit run.

TYPICAL APPLICATIONS

Commercial Buildings

Industrial Facilities

Straight EMT Runs

Conduit Extensions

Indoor Electrical Systems

Specifications

EMT Coupling - Compression Type - Zinc Die Cast

VK-611–VK-620

EMT Coupling - Compression Type - Zinc Die Cast

Standard

UL 514B

Material

Zinc Die Cast

Finish

Natural Zinc Alloy Finish

Click a row to add it to your inquiry.

Catalog No.	Trade Size
VK-611	1/2"
VK-612	3/4"
VK-613	1"
VK-614	1 1/4"
VK-615	1 1/2"
VK-616	2"
VK-617	2 1/2"
VK-618	3"
VK-620	4"

Click any row to add that size to your inquiry.

CUT SHEET (PDF)

Dimensions are nominal and subject to standard manufacturing tolerances.

Standard reference and packaging quantities may vary by catalog number. Please confirm any project-specific requirements before ordering.
