Velkor Conduit Bodies

RIGID Threaded Conduit Bodies

Velkor RIGID threaded conduit bodies provide accessible direction changes and pull points in threaded rigid conduit runs. Available in C, LB, LL, LR, and T configurations, each body is supplied with a cover and gasket.

THREADED ACCESS ALONG THE CONDUIT RUN RIGID threaded conduit bodies provide an accessible change or junction point within a threaded conduit system. Their threaded hubs connect directly with compatible conduit, while the removable-cover arrangement provides access to the internal wire path. The available body configurations allow the conduit route to continue, turn, or branch according […]

MATERIAL

Aluminum

FINISH

Powder coating

TRADE SIZES

1/2" – 4"

Catalog No.

VK-C1 – VK-T10

ADD TO INQUIRY

REQUEST A QUOTE

Need technical details? Download Spec Sheet (PDF, 364 KB)

THREADED ACCESS ALONG THE CONDUIT RUN

RIGID threaded conduit bodies provide an accessible change or junction point within a threaded conduit system. Their threaded hubs connect directly with compatible conduit, while the removable-cover arrangement provides access to the internal wire path.

The available body configurations allow the conduit route to continue, turn, or branch according to the selected catalog type. Buyers should choose the body shape and hub size based on the required routing direction and conduit arrangement.

Threaded hubs: Connect with compatible threaded rigid conduit entries.
Accessible wire path: The body-and-cover arrangement provides a serviceable access point.
Multiple configurations: Supports different turning, continuation, and branching layouts.
Catalog-based selection: Separates body style and hub arrangement for clearer ordering.

TYPICAL APPLICATIONS

Commercial buildings

Industrial facilities

Threaded conduit turns

Branch connections

Pull access points

Specifications

C

VK-C1 – VK-C10

LB

VK-LB1 – VK-LB10

LL

VK-LL1 – VK-LL10

LR

VK-LR1 – VK-LR10

T

VK-T1 – VK-T10

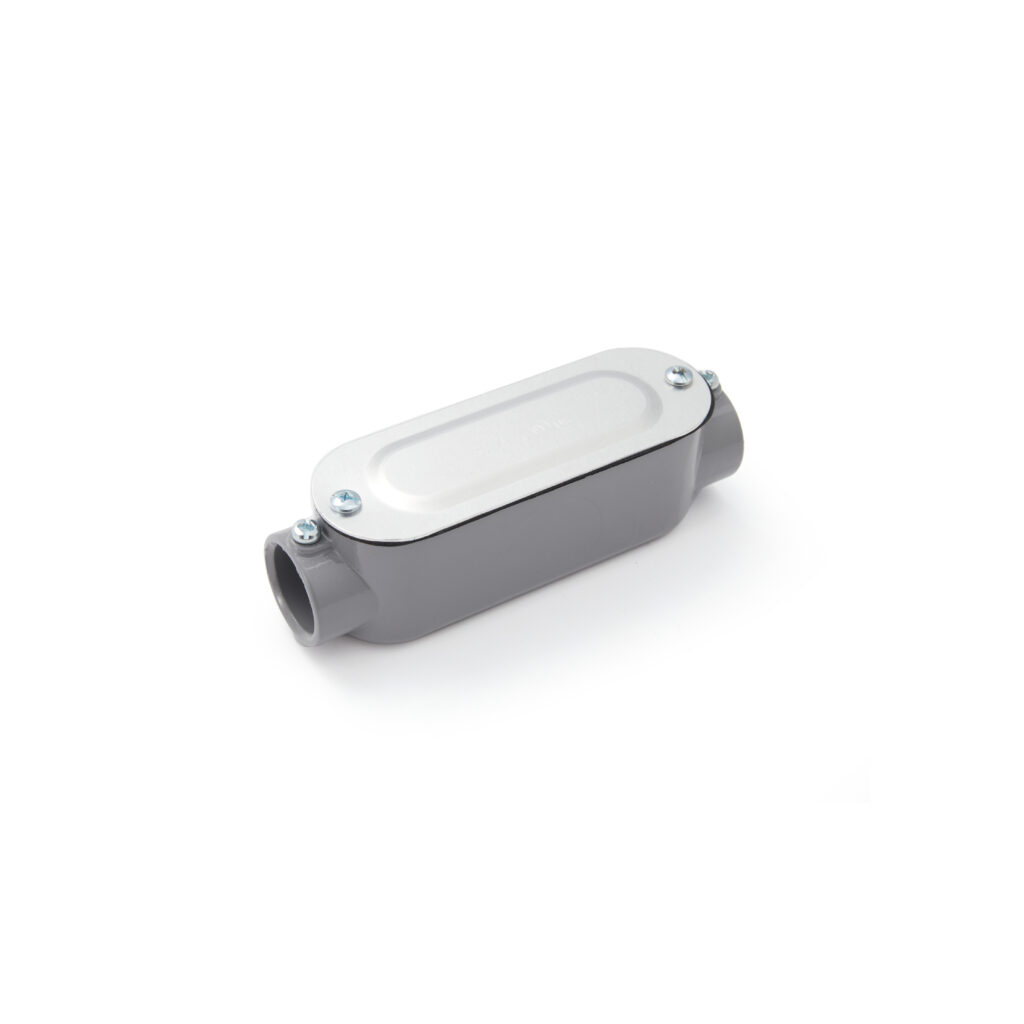

RIGID Threaded Conduit Body – Type C

Standard

UL514A

Material

Aluminum

Finish

Powder coating

Click a row to add it to your inquiry.

Catalog No.	Trade Size
VK-C1	1/2"
VK-C2	3/4"
VK-C3	1"
VK-C4	1 1/4"
VK-C5	1 1/2"
VK-C6	2"
VK-C7	2 1/2"
VK-C8	3"
VK-C10	4"

Supplied with cover and gasket. Click any row to add that size to your inquiry basket.

CUT SHEET (PDF)

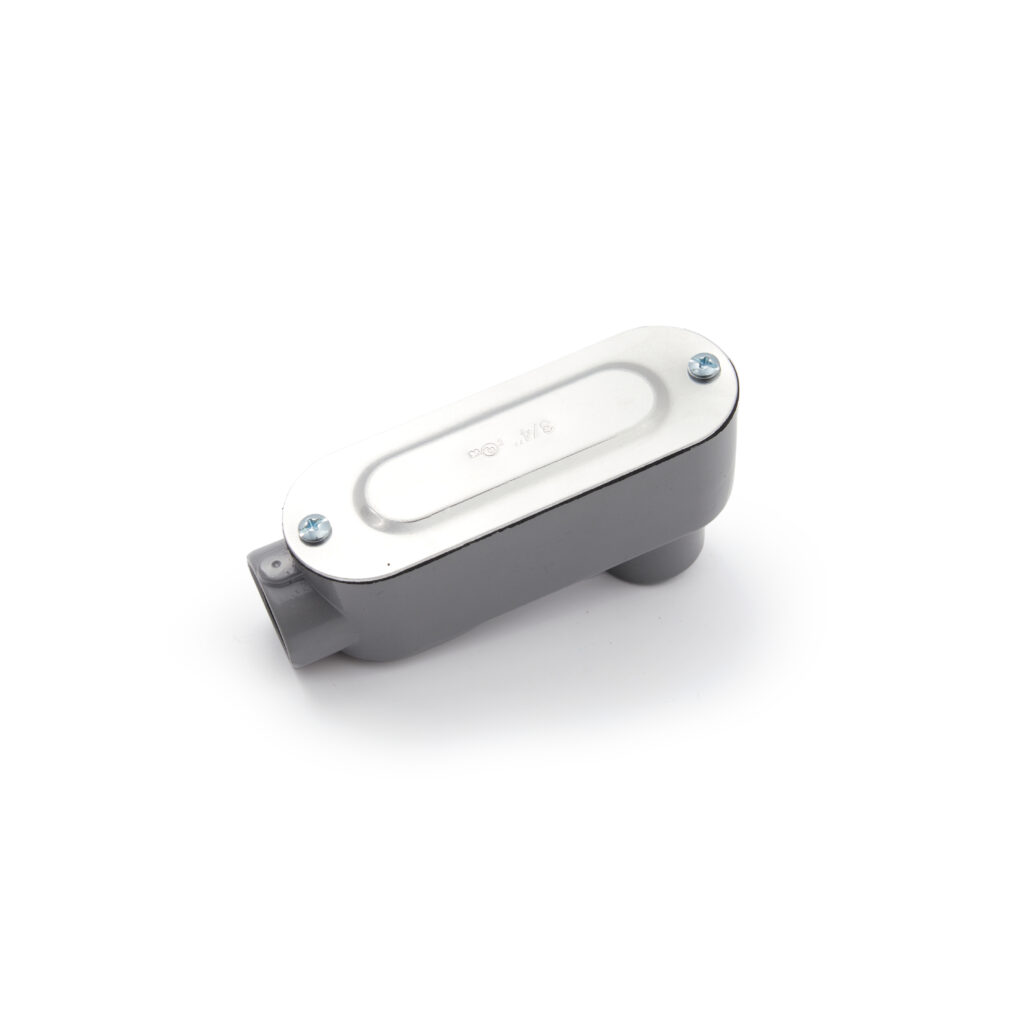

RIGID Threaded Conduit Body – Type LB

Standard

UL514A

Material

Aluminum

Finish

Powder coating

Click a row to add it to your inquiry.

Catalog No.	Trade Size
VK-LB1	1/2"
VK-LB2	3/4"
VK-LB3	1"
VK-LB4	1 1/4"
VK-LB5	1 1/2"
VK-LB6	2"
VK-LB7	2 1/2"
VK-LB8	3"
VK-LB10	4"

Supplied with cover and gasket. Click any row to add that size to your inquiry basket.

CUT SHEET (PDF)

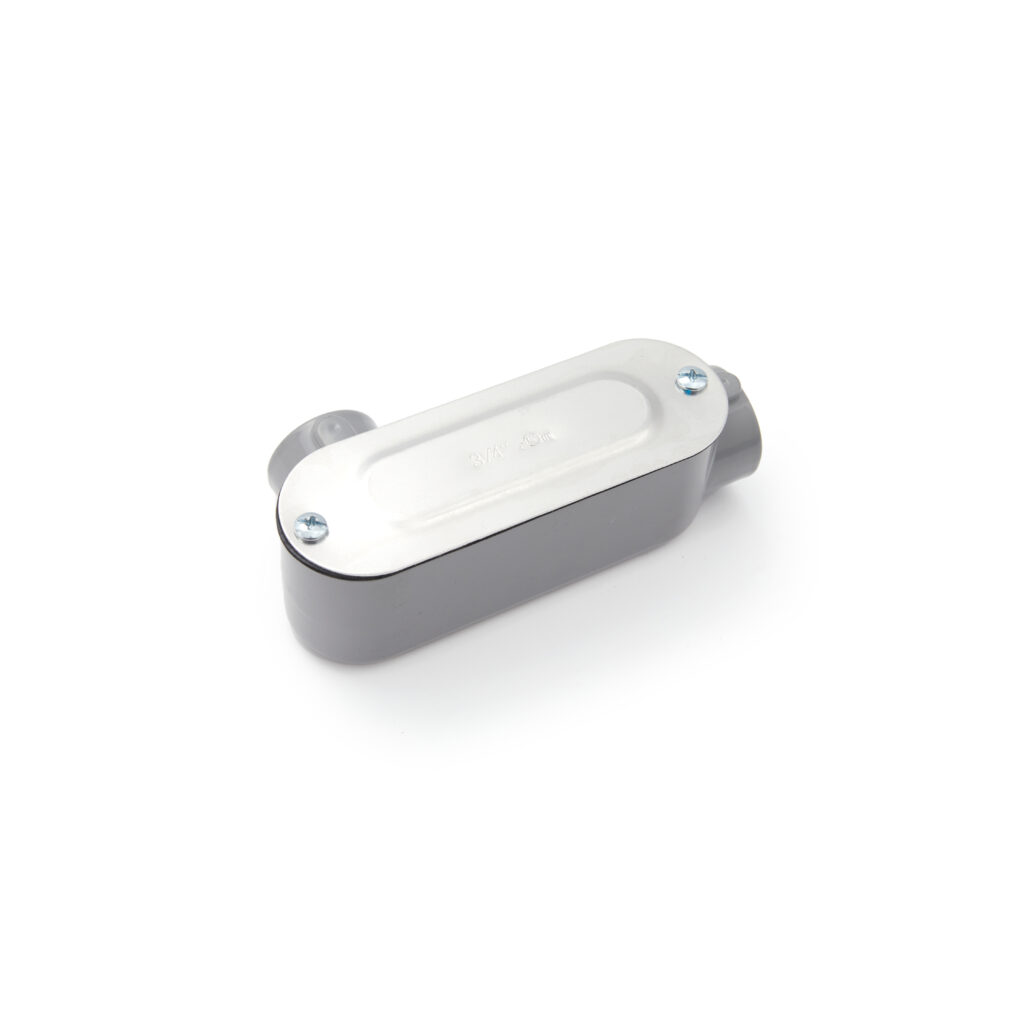

RIGID Threaded Conduit Body – Type LL

Standard

UL514A

Material

Aluminum

Finish

Powder coating

Click a row to add it to your inquiry.

Catalog No.	Trade Size
VK-LL1	1/2"
VK-LL2	3/4"
VK-LL3	1"
VK-LL4	1 1/4"
VK-LL5	1 1/2"
VK-LL6	2"
VK-LL7	2 1/2"
VK-LL8	3"
VK-LL10	4"

Supplied with cover and gasket. Click any row to add that size to your inquiry basket.

CUT SHEET (PDF)

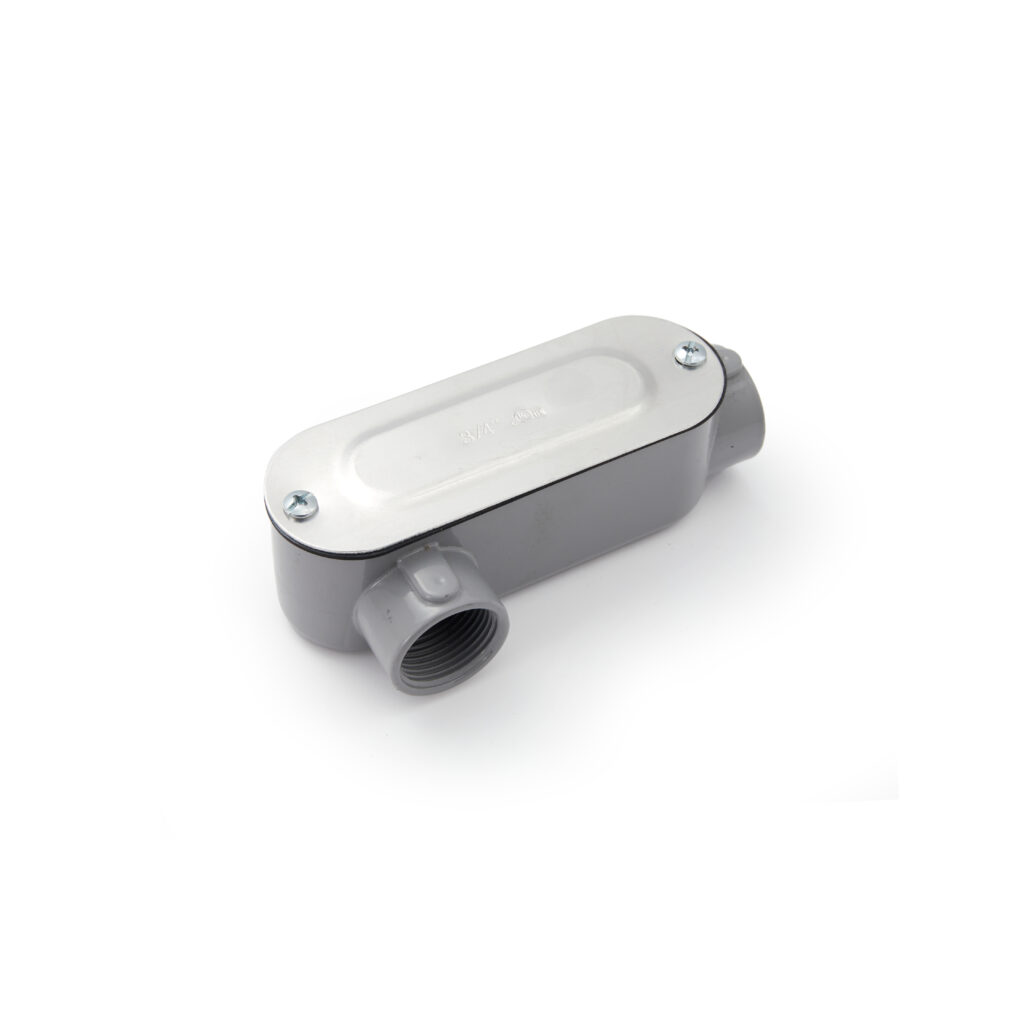

RIGID Threaded Conduit Body – Type LR

Standard

UL514A

Material

Aluminum

Finish

Powder coating

Click a row to add it to your inquiry.

Catalog No.	Trade Size
VK-LR1	1/2"
VK-LR2	3/4"
VK-LR3	1"
VK-LR4	1 1/4"
VK-LR5	1 1/2"
VK-LR6	2"
VK-LR7	2 1/2"
VK-LR8	3"
VK-LR10	4"

Supplied with cover and gasket. Click any row to add that size to your inquiry basket.

CUT SHEET (PDF)

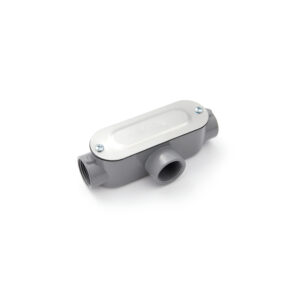

RIGID Threaded Conduit Body – Type T

Standard

UL514A

Material

Aluminum

Finish

Powder coating

Click a row to add it to your inquiry.

Catalog No.	Trade Size
VK-T1	1/2"
VK-T2	3/4"
VK-T3	1"
VK-T4	1 1/4"
VK-T5	1 1/2"
VK-T6	2"
VK-T7	2 1/2"
VK-T8	3"
VK-T10	4"

Supplied with cover and gasket. Click any row to add that size to your inquiry basket.

CUT SHEET (PDF)

Dimensions are nominal and subject to standard manufacturing tolerances.

Packaging quantities may vary by catalog number. Please confirm project-specific requirements before ordering.
