BM Series Modular Switches & Sockets

Specifications

WALL SWITCHES

BM1100 / BM1101 / BM1201 / BM1301

POWER SOCKETS

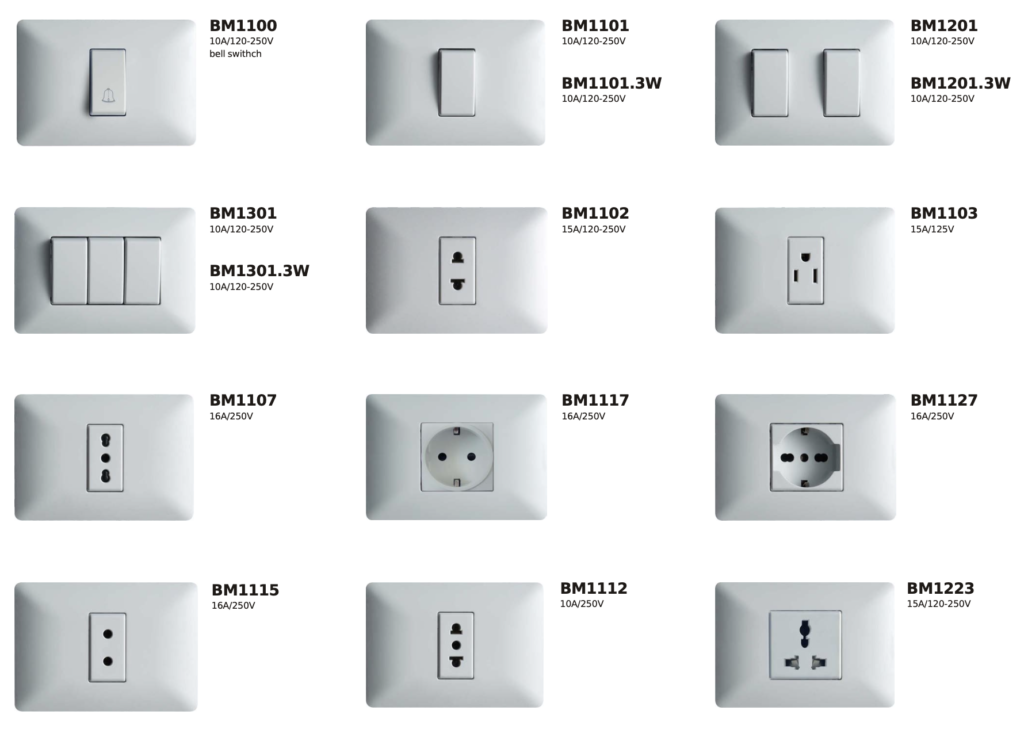

Selected BM Power Outlet Models

USB & DATA

USB / TV / TEL / LAN

COMBINATIONS

Switch + Socket Configurations

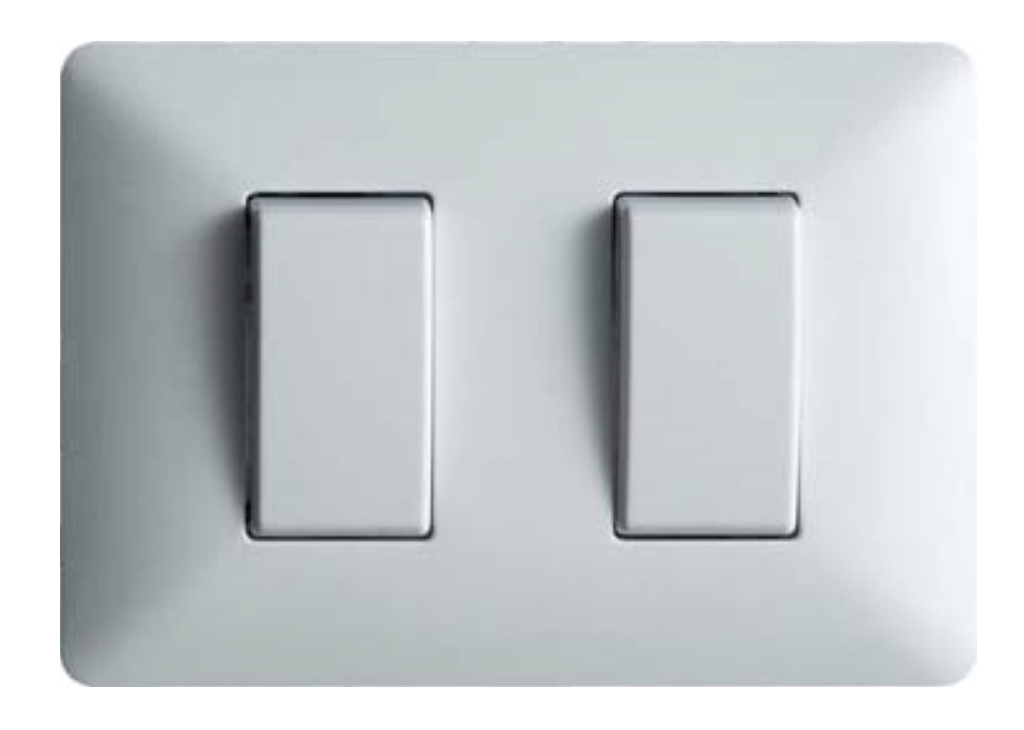

BM SERIES WALL SWITCHES

Finish

White, Silver, Champagne and Wood

Click a row to add it to your inquiry.

White Catalog No.	Function	Configuration	Electrical Rating	Cataloged Plate Colors	Purpose
BM1100	Bell Push Switch	Single Push Button	10A / 120-250V	White; Silver (.SLV); Champagne (.CHP); Wood (.WOD)	Activates a connected bell or chime circuit.
BM1101	Standard Wall Switch	1-Gang / 1 Rocker	10A / 120-250V	White; Silver (.SLV); Champagne (.CHP); Wood (.WOD)	Controls one connected lighting or electrical circuit.
BM1201	Standard Wall Switch	2-Gang / 2 Rockers	10A / 120-250V	White; Silver (.SLV); Champagne (.CHP); Wood (.WOD)	Provides two switch controls in one wall plate.
BM1301	Standard Wall Switch	3-Gang / 3 Rockers	10A / 120-250V	White; Silver (.SLV); Champagne (.CHP); Wood (.WOD)	Provides three switch controls in one wall plate.
BM1101.3W	.3W Wall Switch	1-Gang / 1 Rocker	10A / 120-250V	White; Silver (.SLV); Champagne (.CHP); Wood (.WOD)	Provides the cataloged .3W switching configuration for one circuit.
BM1201.3W	.3W Wall Switch	2-Gang / 2 Rockers	10A / 120-250V	White; Silver (.SLV); Champagne (.CHP); Wood (.WOD)	Combines two cataloged .3W switch controls in one wall plate.
BM1301.3W	.3W Wall Switch	3-Gang / 3 Rockers	10A / 120-250V	White; Silver (.SLV); Champagne (.CHP); Wood (.WOD)	Combines three cataloged .3W switch controls in one wall plate.

```

The .3W designation is preserved from the source catalog. Confirm its exact wiring definition before publication and ordering.

CUT SHEET (PDF)

BM SERIES POWER SOCKET OUTLETS

Finish

Multiple Plate Color Options

Click a row to add it to your inquiry.

Catalog No.	Function	Socket Configuration	Electrical Rating	Cataloged Plate Colors	Purpose
BM1102	Single Power Socket Outlet	Catalog Pattern BM102	15A / 120-250V	White; Silver (.SLV); Champagne (.CHP); Wood (.WOD)	Provides one wall power connection for a compatible plug pattern.
BM1103	Single Power Socket Outlet	Grounded Straight-Blade Pattern	15A / 125V	White; Silver (.SLV); Champagne (.CHP); Wood (.WOD)	Provides one grounded wall power connection for a compatible plug.
BM1107	Single Power Socket Outlet	Three-Round-Pin Pattern	16A / 250V	White; Silver (.SLV); Champagne (.CHP); Wood (.WOD)	Provides one wall power connection for a compatible three-pin plug.
BM1117	Single Power Socket Outlet	Recessed Round-Pin Pattern	16A / 250V	White; Silver (.SLV); Champagne (.CHP); Wood (.WOD)	Provides one recessed wall power connection for a compatible plug.
BM1127	Single Power Socket Outlet	Multi-Pattern Socket	16A / 250V	White; Silver (.SLV); Champagne (.CHP); Wood (.WOD)	Accepts the compatible plug patterns defined for this socket design.
BM1115	Single Power Socket Outlet	Two-Round-Pin Pattern	16A / 250V	White shown in source catalog	Provides one wall power connection for a compatible two-pin plug.
BM1112	Single Power Socket Outlet	Multi-Pattern Socket	10A / 250V	White shown in source catalog	Provides one wall power connection for a compatible plug pattern.
BM1223	Single Power Socket Outlet	Wide Multi-Pattern Socket	15A / 120-250V	White shown in source catalog	Provides a wider-format wall power connection for compatible plugs.
BM1202	Dual Power Socket Outlet	Two Catalog Pattern BM102 Outlets	15A / 120-250V	White shown in source catalog	Provides two power connection points in one wall plate.
BM1203	Dual Power Socket Outlet	Two Grounded Straight-Blade Outlets	15A / 125V	White shown in source catalog	Provides two grounded power connection points in one wall plate.
BM1209	Triple Power Socket Outlet	Three Compact Socket Positions	15A / 120-250V	White shown in source catalog	Provides three power connection positions in one wide wall plate.
BM1204	Dual Power Socket Outlet	Two Two-Pin Socket Positions	15A / 120-250V	White shown in source catalog	Provides two compatible two-pin power connections.
BM1208	Dual Power Socket Outlet	Two Multi-Pattern Socket Positions	15A / 120-250V	White; Silver (.SLV); Champagne (.CHP); Wood (.WOD)	Provides two multi-pattern power connections in one wall plate.
BM1206	Duplex Power Receptacle	Two Straight-Blade Receptacles	15A / 120-250V	White; Silver (.SLV); Champagne (.CHP); Wood (.WOD)	Provides two straight-blade power receptacles in one wall plate.
BM1520	GFCI Receptacle	Single GFCI Device	20A / 125V	White shown in source catalog	Provides ground-fault protection for the connected receptacle circuit, subject to current product verification.
BM1515	GFCI Receptacle	Single GFCI Device	15A / 125V	White shown in source catalog	Provides ground-fault protection for the connected receptacle circuit, subject to current product verification.
BM1205	Dual Power Socket Outlet	Two Round-Pin Socket Positions	10A / 250V	White shown in source catalog	Provides two compatible round-pin power connections.

Socket names above describe the visible catalog patterns and do not establish a national plug standard. Confirm the applicable plug system, wiring, grounding arrangement and market requirements before publication or ordering.

CUT SHEET (PDF)

BM SERIES USB & DATA OUTLETS

Finish

Multiple Plate Color Options

Click a row to add it to your inquiry.

Catalog No.	Function	Interface Configuration	Electrical Rating	Cataloged Plate Colors	Purpose
BM1226	USB and Power Combination Outlet	Dual USB + Catalog Pattern BM102 Socket	USB: 2.1A / 5V; Socket: 15A / 120-250V	White; Silver (.SLV); Champagne (.CHP); Wood (.WOD)	Combines device charging and one compatible AC power connection.
BM1326	USB and Power Combination Outlet	Dual USB + Recessed Round-Pin Socket	USB: 2.1A / 5V; Socket: 16A / 250V	White shown in source catalog	Combines device charging and one compatible recessed AC power connection.
BM1256	USB and Power Combination Outlet	Two-Pin Socket + Dual USB	USB: 2.1A / 5V; Socket: 16A / 250V	White shown in source catalog	Combines device charging and one compatible two-pin AC power connection.
BM1236	USB and Power Combination Outlet	Dual USB + Grounded Straight-Blade Socket	USB: 2.1A / 5V; Socket: 15A / 125V	White; Silver (.SLV); Champagne (.CHP); Wood (.WOD)	Combines device charging and one grounded straight-blade AC power connection.
BM1276	USB and Power Combination Outlet	Recessed Round-Pin Socket + Dual USB	USB: 2.1A / 5V; Socket: 16A / 250V	Silver (.SLV); Champagne (.CHP); Wood (.WOD) shown in source catalog	Combines device charging and one compatible recessed AC power connection.
BM1336	USB and Power Combination Outlet	Multi-Pattern Socket + Dual USB	USB: 2.1A / 5V; Socket: 15A / 120-250V	White shown in source catalog	Combines device charging and one multi-pattern AC power connection.
BM1216	USB Charging Outlet	Four USB Ports	2.1A / 5V	White shown in source catalog	Provides multiple low-voltage USB charging connections.
BM1108	TV Outlet	Coaxial TV Connection	Not stated	White; Silver (.SLV); Champagne (.CHP); Wood (.WOD)	Provides a wall connection point for a compatible television signal cable.
BM1109	Telephone Outlet	Telephone Connection	Not stated	White; Silver (.SLV); Champagne (.CHP); Wood (.WOD)	Provides a wall connection point for a compatible telephone line.
BM1878	TV and Telephone Combination Outlet	TV + Telephone	Not stated	White; Silver (.SLV); Champagne (.CHP); Wood (.WOD)	Combines television and telephone connections in one wall plate.
BM1876	Telephone and Data Combination Outlet	Telephone + LAN	Not stated	White; Silver (.SLV); Champagne (.CHP); Wood (.WOD)	Combines telephone and network-data connections in one wall plate.
BM1885	TV and Data Combination Outlet	TV + LAN	Not stated	White shown in source catalog	Combines television and network-data connections in one wall plate.

Confirm the USB output basis, connector generation, TV connector type, telephone jack type and LAN category before publication and ordering.

CUT SHEET (PDF)

BM SERIES COMBINATION UNITS

Finish

Multiple Plate Color Options

Click a row to add it to your inquiry.

Catalog No.	Function	Configuration	Electrical Rating	Cataloged Plate Colors	Purpose
BM1217	Switch and Power Socket Combination	Three-Round-Pin Socket + 1 Rocker	Switch: 10A / 120-250V; Socket: 16A / 250V	White; Silver (.SLV); Champagne (.CHP); Wood (.WOD)	Combines one switching function and one compatible power connection.
BM1217.3W	.3W Switch and Power Socket Combination	Three-Round-Pin Socket + 1 Rocker	Switch: 10A / 120-250V; Socket: 16A / 250V	White; Silver (.SLV); Champagne (.CHP); Wood (.WOD)	Combines the cataloged .3W switch configuration with one compatible power connection.
BM1212	Switch and Power Socket Combination	Catalog Pattern BM102 Socket + 1 Rocker	Switch: 10A / 120-250V; Socket: 15A / 120-250V	White; Silver (.SLV); Champagne (.CHP); Wood (.WOD)	Combines one switching function and one compatible power connection.
BM1212.3W	.3W Switch and Power Socket Combination	Catalog Pattern BM102 Socket + 1 Rocker	Switch: 10A / 120-250V; Socket: 15A / 120-250V	White; Silver (.SLV); Champagne (.CHP); Wood (.WOD)	Combines the cataloged .3W switch configuration with one compatible power connection.
BM1213	Switch and Power Socket Combination	Grounded Straight-Blade Socket + 1 Rocker	Switch: 10A / 120-250V; Socket: 15A / 125V	White; Silver (.SLV); Champagne (.CHP); Wood (.WOD)	Combines one switching function and one grounded power connection.
BM1213.3W	.3W Switch and Power Socket Combination	Grounded Straight-Blade Socket + 1 Rocker	Switch: 10A / 120-250V; Socket: 15A / 125V	White; Silver (.SLV); Champagne (.CHP); Wood (.WOD)	Combines the cataloged .3W switch configuration with one grounded power connection.
BM1312	Switch and Power Socket Combination	Catalog Pattern BM102 Socket + 2 Rockers	Switches: 10A / 120-250V; Socket: 15A / 120-250V	White shown in source catalog	Combines two switching functions and one compatible power connection.
BM1312.3W	.3W Switch and Power Socket Combination	Catalog Pattern BM102 Socket + 2 Rockers	Switches: 10A / 120-250V; Socket: 15A / 120-250V	White shown in source catalog	Combines two cataloged .3W switch controls and one compatible power connection.
BM1313	Switch and Power Socket Combination	Grounded Straight-Blade Socket + 2 Rockers	Switches: 10A / 120-250V; Socket: 15A / 125V	White shown in source catalog	Combines two switching functions and one grounded power connection.
BM1313.3W	.3W Switch and Power Socket Combination	Grounded Straight-Blade Socket + 2 Rockers	Switches: 10A / 120-250V; Socket: 15A / 125V	White shown in source catalog	Combines two cataloged .3W switch controls and one grounded power connection.
BM1317	Switch and Power Socket Combination	Three-Round-Pin Socket + 2 Rockers	Switches: 10A / 120-250V; Socket: 16A / 250V	White shown in source catalog	Combines two switching functions and one compatible power connection.
BM1317.3W	.3W Switch and Power Socket Combination	Three-Round-Pin Socket + 2 Rockers	Switches: 10A / 120-250V; Socket: 16A / 250V	White shown in source catalog	Combines two cataloged .3W switch controls and one compatible power connection.
BM1327	Switch and Power Socket Combination	Recessed Round-Pin Socket + 1 Rocker	Switch: 10A / 120-250V; Socket: 16A / 250V	White shown in source catalog	Combines one switching function and one recessed power connection.
BM1327.3W	.3W Switch and Power Socket Combination	Recessed Round-Pin Socket + 1 Rocker	Switch: 10A / 120-250V; Socket: 16A / 250V	White shown in source catalog	Combines the cataloged .3W switch configuration with one recessed power connection.
BM1343	Switch and Power Socket Combination	Multi-Pattern Socket + 1 Rocker	Switch: 10A / 120-250V; Socket: 15A / 120-250V	White shown in source catalog	Combines one switching function and one multi-pattern power connection.
BM1343.3W	.3W Switch and Power Socket Combination	Multi-Pattern Socket + 1 Rocker	Switch: 10A / 120-250V; Socket: 15A / 120-250V	White shown in source catalog	Combines the cataloged .3W switch configuration with one multi-pattern power connection.

For combination units, confirm the rating and wiring requirement of each individual function. The presence of two functions on one plate does not imply that they share the same rating or circuit.

CUT SHEET (PDF)

Select the required function group first, then use the specification table to identify the electrical configuration and cataloged plate-color option.

White products normally use the base catalog number. The suffixes .SLV, .CHP and .WOD identify Silver, Champagne and Wood versions where those combinations are specifically listed in the catalog.
