Home Strut Channel System 41 × 21 mm Strut Channel – Plain and Slotted

Velkor Strut Channel System

41 × 21 mm Strut Channel – Plain and Slotted

Velkor 41 × 21 mm strut channel is available in plain and slotted 3-meter configurations. The lower-profile section uses a standard 2.5 mm thickness, while other thicknesses and four finish options are available for project-specific ordering.

A LOWER-PROFILE CHANNEL FOR COMPACT SUPPORT LAYOUTS. The 41 × 21 mm strut-channel range provides a shallower profile for support layouts that do not require a full 41 × 41 mm section. Buyers can select the VK-4121 slotted version or the VK-4121P plain version. The VK-4121 slotted channel uses confirmed 14 × 28 mm slots […]

MATERIAL

Steel

FINISH

PL Plain · PG Pre-galvanized · EG Electro-galvanized · HD Hot-dip galvanized

LENGTH

3 meters

TRADE SIZES

41 × 21 mm

Catalog No.

VK-4121 · VK-4121P

Wall

2.5 mm standard thickness

ADD TO INQUIRY

REQUEST A QUOTE

A LOWER-PROFILE CHANNEL FOR COMPACT SUPPORT LAYOUTS.

The 41 × 21 mm strut-channel range provides a shallower profile for support layouts that do not require a full 41 × 41 mm section. Buyers can select the VK-4121 slotted version or the VK-4121P plain version.

The VK-4121 slotted channel uses confirmed 14 × 28 mm slots at a 50 mm pitch. Any section parameters documented specifically for VK-4121 should remain associated with that model and should not automatically be transferred to the plain VK-4121P version.

41 × 21 mm nominal section provides a lower-profile channel format.

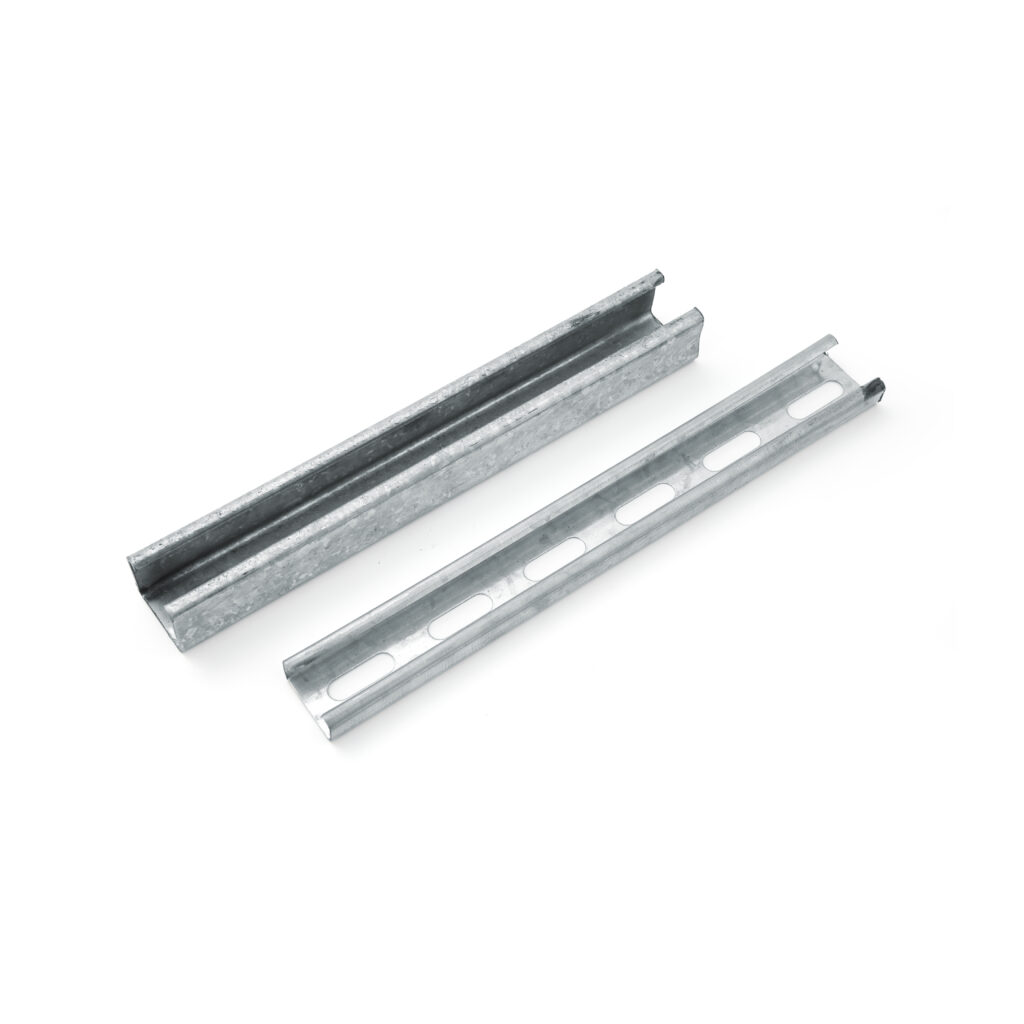

Plain and slotted options are provided by VK-4121P and VK-4121 respectively.
14 × 28 mm slots are documented for the VK-4121 slotted channel.
50 mm slot pitch provides the confirmed spacing pattern for VK-4121.

TYPICAL APPLICATIONS

Compact Conduit Supports

Equipment Mounting Rails

Light Support Frames

Space-Conscious Installations

Mechanical and Electrical Support Systems

Specifications

41 × 21 mm Channel

VK-4121 · VK-4121P

41 × 21 mm Strut Channel – Plain and Slotted

Material

Steel

Finish

PL Plain · PG Pre-galvanized · EG Electro-galvanized · HD Hot-dip galvanized

Length

3 meters

Click a row to add it to your inquiry.

Type	Catalog No.	Channel Size	Gauge	Thickness	Length	Slot Pattern	Approx. Weight (kg/m)	Approx. Weight (kg/3 m)
Plain	VK-4121P	41 × 21 mm	12	2.5 mm	3 m	Unslotted	1.90	5.71
Plain	VK-4121P	41 × 21 mm	13	2.3 mm	3 m	Unslotted	1.75	5.25
Plain	VK-4121P	41 × 21 mm	14	2.0 mm	3 m	Unslotted	1.52	4.57
Plain	VK-4121P	41 × 21 mm	15	1.8 mm	3 m	Unslotted	1.37	4.11
Plain	VK-4121P	41 × 21 mm	16	1.5 mm	3 m	Unslotted	1.14	3.43
Plain	VK-4121P	41 × 21 mm	17	1.3 mm	3 m	Unslotted	0.99	2.97
Plain	VK-4121P	41 × 21 mm	18	1.2 mm	3 m	Unslotted	0.91	2.74
Slotted	VK-4121	41 × 21 mm	12	2.5 mm	3 m	14 × 28 mm slots · 50 mm pitch	1.77	5.30
Slotted	VK-4121	41 × 21 mm	13	2.3 mm	3 m	14 × 28 mm slots · 50 mm pitch	1.62	4.87
Slotted	VK-4121	41 × 21 mm	14	2.0 mm	3 m	14 × 28 mm slots · 50 mm pitch	1.41	4.24
Slotted	VK-4121	41 × 21 mm	15	1.8 mm	3 m	14 × 28 mm slots · 50 mm pitch	1.27	3.82
Slotted	VK-4121	41 × 21 mm	16	1.5 mm	3 m	14 × 28 mm slots · 50 mm pitch	1.06	3.18
Slotted	VK-4121	41 × 21 mm	17	1.3 mm	3 m	14 × 28 mm slots · 50 mm pitch	0.92	2.76
Slotted	VK-4121	41 × 21 mm	18	1.2 mm	3 m	14 × 28 mm slots · 50 mm pitch	0.85	2.54

Approximate theoretical weights are calculated using a 97 mm developed strip width and a steel density of 7,850 kg/m³. Slotted-channel calculations assume approximately 60 obround slots per 3 m length. Actual finished weight may vary with dimensional tolerances, bend radii, slot quantity and surface treatment. Please confirm production weight before ordering.

Click any row to add that channel type to your inquiry basket.

CUT SHEET (PDF)

Dimensions are nominal and subject to standard manufacturing tolerances.

Packaging quantities may vary by catalog number. Please confirm project-specific requirements before ordering.
