Velkor Weatherproof Boxes

Single-Gang Weatherproof Boxes

Velkor single-gang weatherproof boxes provide cast aluminum wiring space for surface-mounted devices and conduit terminations. Hole-pattern variants are organized by opening arrangement, including side-opening models identified by an X suffix.

ONE DEVICE POSITION. MULTIPLE CONDUIT-ENTRY OPTIONS. Single-gang weatherproof boxes provide a compact enclosure format for one device position while offering several conduit-entry arrangements. The grouped catalog options make it easier to select the required number and location of openings without treating every hole pattern as a separate product page. The aluminum body uses a powder-coated […]

MATERIAL

Aluminum

FINISH

Powder-coated

Catalog No.

FSB50-3 – DB100-5X

ADD TO INQUIRY
REQUEST A QUOTE

ONE DEVICE POSITION. MULTIPLE CONDUIT-ENTRY OPTIONS.

Single-gang weatherproof boxes provide a compact enclosure format for one device position while offering several conduit-entry arrangements. The grouped catalog options make it easier to select the required number and location of openings without treating every hole pattern as a separate product page.

The aluminum body uses a powder-coated finish, and the catalog structure distinguishes ordinary patterns from side-opening versions. Models with side openings carry the X suffix, helping buyers identify the required configuration during selection and ordering.

  • Single-gang format: Provides a compact enclosure layout for one device position.
  • Multiple hole patterns: Offers several conduit-entry arrangements within one product family.
  • Aluminum construction: Keeps the enclosure body comparatively lightweight.
  • Clear model identification: Uses the X suffix to distinguish side-opening configurations.

TYPICAL APPLICATIONS

Commercial buildings

Industrial facilities

Conduit junction points

Branch circuit layouts

Surface-mounted wiring

4" Square Conduit Boxes, 2"x4" Handy Boxes, Conduit Bodies, Weatherproof Boxes Single Gang, BS standard Switch Boxes, IEC 61386 Standard Electra Box A01, A11

Specifications

3 Hole

FSB50-3 · FSB75-3 · FSB100-3 · DB50-3 · DB75-3 · DB100-3

4 Hole

FSB50-4 · FSB75-4 · DB50-4 · DB75-4

5 Hole

FSB50-5 · FSB75-5

5 Hole Side Opening

FSB50-5X · FSB75-5X · DB50-5X · DB75-5X · DB100-5X
Single-Gang Weatherproof Boxes – 3 Hole
Standard

UL514A

Material

Aluminum

Finish

Powder-coated

Click a row to add it to your inquiry.

Catalog No. Hole Size Depth Capacity Outlet Configuration
FSB50-3 1/2" 2" 18.3 cu. in. Top: 1 · Bottom: 1 · Back: 1 · Total: 3
FSB75-3 3/4" 2" 18.3 cu. in. Top: 1 · Bottom: 1 · Back: 1 · Total: 3
FSB100-3 1" 2" 18.3 cu. in. Top: 1 · Bottom: 1 · Back: 1 · Total: 3
DB50-3 1/2" 2-5/8" 23.8 cu. in. Top: 1 · Bottom: 1 · Back: 1 · Total: 3
DB75-3 3/4" 2-5/8" 23.8 cu. in. Top: 1 · Bottom: 1 · Back: 1 · Total: 3
DB100-3 1" 2-5/8" 23.8 cu. in. Top: 1 · Bottom: 1 · Back: 1 · Total: 3

Click any row to add that catalog number to your inquiry basket.

CUT SHEET (PDF)
Single-Gang Weatherproof Boxes – 4 Hole
Standard

UL514A

Material

Aluminum

Finish

Powder-coated

Click a row to add it to your inquiry.

Catalog No. Hole Size Depth Capacity Outlet Configuration
FSB50-4 1/2" 2" 18.3 cu. in. Top: 2 · Bottom: 1 · Back: 1 · Total: 4
FSB75-4 3/4" 2" 18.3 cu. in. Top: 2 · Bottom: 1 · Back: 1 · Total: 4
DB50-4 1/2" 2-5/8" 23.8 cu. in. Top: 2 · Bottom: 1 · Back: 1 · Total: 4
DB75-4 3/4" 2-5/8" 23.8 cu. in. Top: 2 · Bottom: 1 · Back: 1 · Total: 4

Click any row to add that catalog number to your inquiry basket.

CUT SHEET (PDF)
Single-Gang Weatherproof Boxes – 5 Hole
Standard

UL514A

Material

Aluminum

Finish

Powder-coated

Click a row to add it to your inquiry.

Catalog No. Hole Size Depth Capacity Outlet Configuration
FSB50-5 1/2" 2" 18.3 cu. in. Top: 2 · Bottom: 2 · Back: 1 · Total: 5
FSB75-5 3/4" 2" 18.3 cu. in. Top: 2 · Bottom: 2 · Back: 1 · Total: 5

Click any row to add that catalog number to your inquiry basket.

CUT SHEET (PDF)
Single-Gang Weatherproof Boxes – 5 Hole Side Opening
Standard

UL514A

Material

Aluminum

Finish

Powder-coated

Click a row to add it to your inquiry.

Catalog No. Hole Size Depth Capacity Outlet Configuration
FSB50-5X 1/2" 2" 18.3 cu. in. Top: 1 · Bottom: 1 · Side 1: 1 · Side 2: 1 · Back: 1 · Total: 5
FSB75-5X 3/4" 2" 18.3 cu. in. Top: 1 · Bottom: 1 · Side 1: 1 · Side 2: 1 · Back: 1 · Total: 5
DB50-5X 1/2" 2-5/8" 23.8 cu. in. Top: 1 · Bottom: 1 · Side 1: 1 · Side 2: 1 · Back: 1 · Total: 5
DB75-5X 3/4" 2-5/8" 23.8 cu. in. Top: 1 · Bottom: 1 · Side 1: 1 · Side 2: 1 · Back: 1 · Total: 5
DB100-5X 1" 2-5/8" 23.8 cu. in. Top: 1 · Bottom: 1 · Side 1: 1 · Side 2: 1 · Back: 1 · Total: 5

Click any row to add that catalog number to your inquiry basket.

CUT SHEET (PDF)

Dimensions are nominal and subject to standard manufacturing tolerances.

Packaging quantities may vary by catalog number. Please confirm project-specific requirements before ordering.

Modern Standards for Traditional Products

Verified

Product verified against Velkor quality standards before it ships.

PRECISE

Precision in every detail, from engineering drawing to final delivery.

RELIABLE

Stable quality and dependable lead times you can plan a project around.

SYSTEMATIC

A structured process that keeps complex projects consistent and on track.

PARTNER

More than a supplier — we build long-term partnerships with our clients.

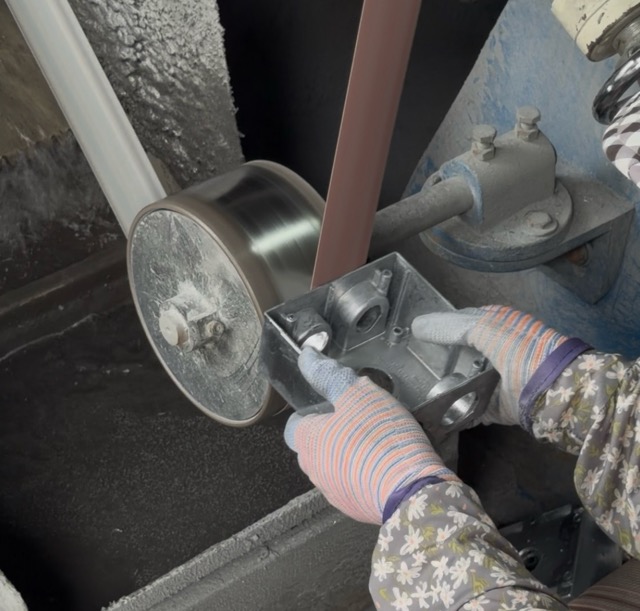

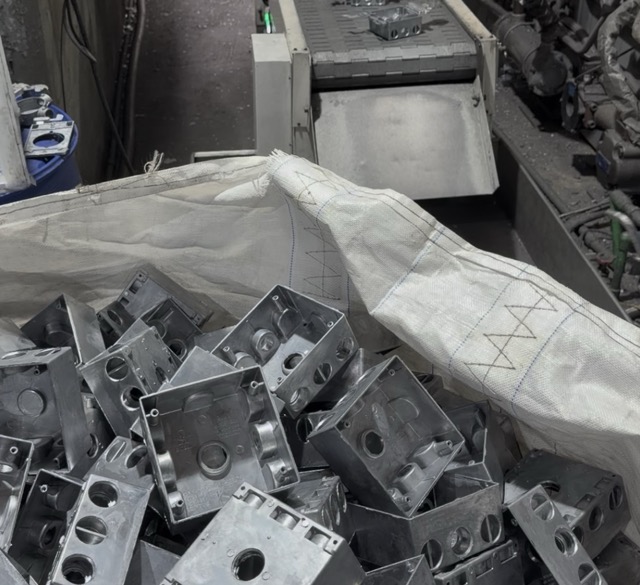

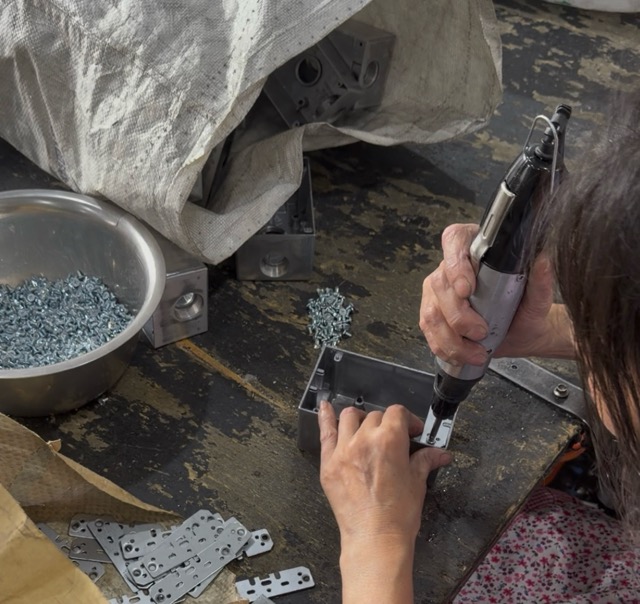

Manufacturing Center of Excellence

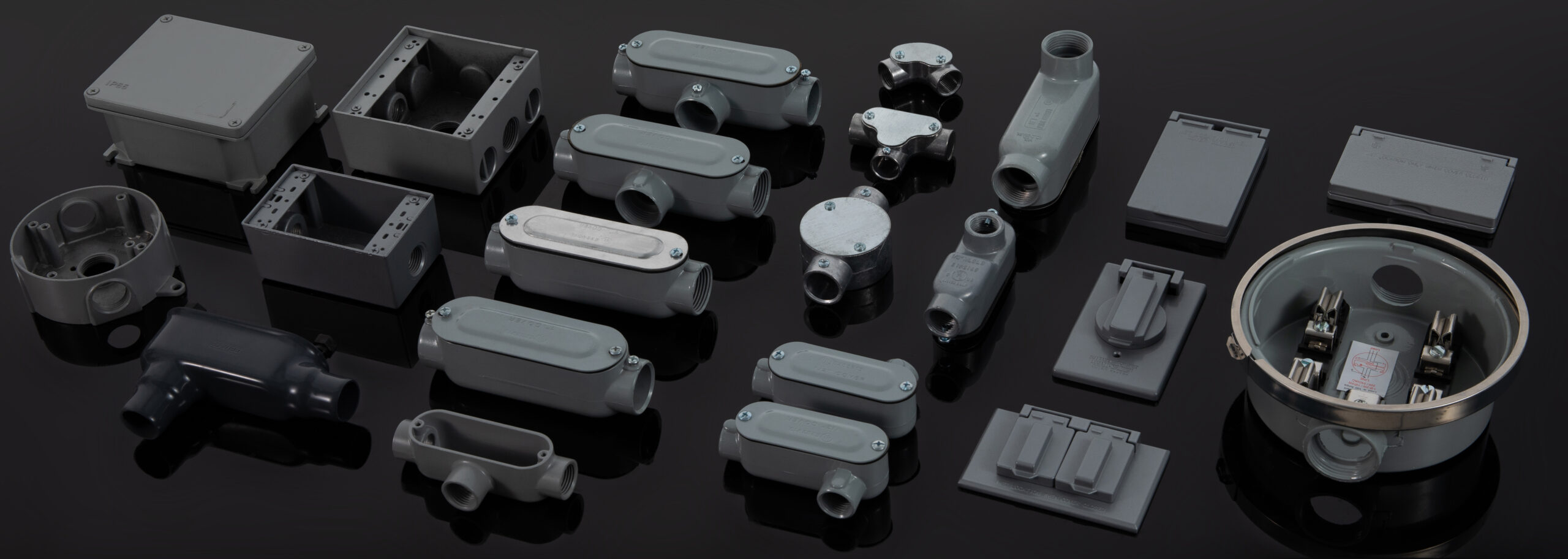

WEATHERPROOF BOX, Conduit Bodies, Velkor Industries
Velkor Factory

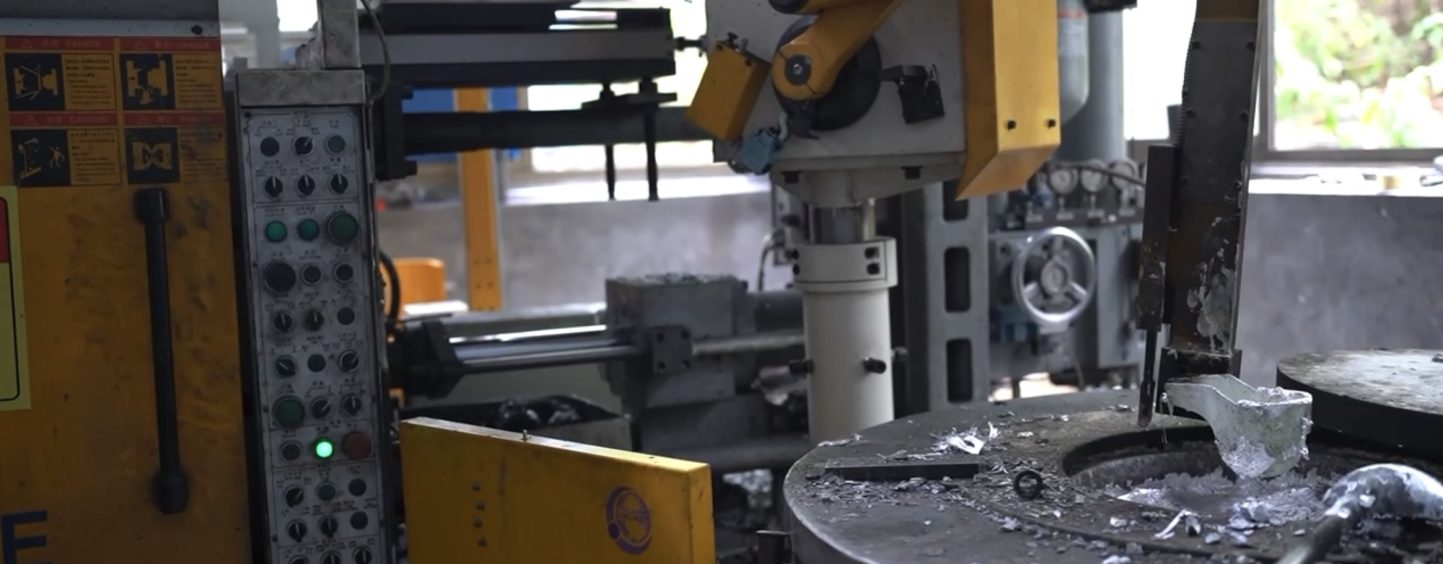

Zinc Die Cast Machine
