IEC 61386 Conduit System
-

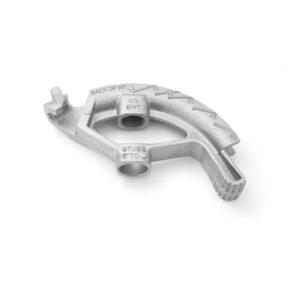

Manual Metric Conduit Bender – Malleable IronVelkor Manual Metric Conduit Benders use a malleable-iron head to form bends in compatible conduit on site. Separate tools are listed for 20, 25 and 32 mm conduit, allowing the bender selection to follow the tube size used in the installation.MALLEABLE-IRON HEAD FOR MANUAL CONDUIT BENDING This manual bender forms bends in metric conduit on site. The malleable-iron head supports the tube as it is bent, while cast-in markings help the installer repeat the required angle. Forming bends from straight conduit reduces the need for separate elbow fittings at those positions. Malleable-iron head provides the […]
VIEWINQUIRY -
Zinc Die-Cast Flexible Conduit-to-EMT CouplingVelkor Flexible Conduit-to-EMT Couplings join an EMT conduit run to a compatible flexible section. This transition lets the fixed route continue toward an offset equipment entry using flexible conduit, with ten zinc die-cast size selections from 16 to 110 mm. Complies with IEC 61386-1.SET-SCREW TRANSITION FROM EMT TO FLEXIBLE CONDUIT Velkor EMT-to-flex couplings connect a fixed EMT run directly to a flexible conduit section near equipment. A set screw secures the EMT end, so the tube does not need threading. The body is die-cast zinc alloy with a natural zinc finish. This coupling is for dry locations and […]
VIEWINQUIRY -

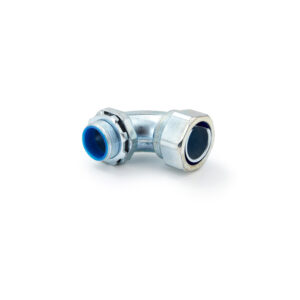

Zinc Die-Cast 90° Flexible Conduit Connector – HexagonVelkor 90° Flexible Conduit Connectors turn the conduit connection at a compatible enclosure entry. The angled arrangement helps direct the flexible run alongside a panel or machine, with zinc die-cast bodies in ten metric sizes from 16 to 110 mm. Complies with IEC 61386-1.90° ENTRY WITH AN INSULATED THROAT Velkor 90° connectors bring flexible conduit into a box or cabinet from the side, avoiding a separate conduit bend directly outside the entry. The body is die-cast zinc alloy, and the insulated throat helps protect wire insulation from abrasion. A supplied locknut secures the connector to the enclosure. Sizes […]
VIEWINQUIRY -

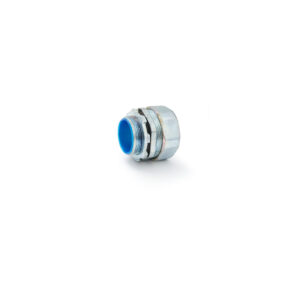

Zinc Die-Cast Straight Flexible Conduit ConnectorVelkor Straight Flexible Conduit Connectors terminate a flexible conduit at a compatible box, cabinet or equipment enclosure. The straight geometry suits a conduit approach aligned with the entry, and the zinc die-cast range covers ten metric sizes from 16 to 110 mm. Complies with IEC 61386-1.STRAIGHT ENTRY FOR FLEXIBLE METAL CONDUIT Velkor straight connectors secure flexible metal conduit at boxes, cabinets and equipment enclosures. Die casting forms the zinc-alloy body close to its finished shape, reducing the machining needed. A supplied locknut secures the connector at the enclosure entry. The range covers ten metric sizes from 16 to 110 mm. […]
VIEWINQUIRY -
Metric EMT Coupling – Autofijación Type – SteelVelkor Autofijación Steel EMT Couplings connect two matching conduit lengths in a straight route. The series covers 20–50 mm metric EMT and is intended for layouts specifying Autofijación fittings. Complies with IEC 61386-1 and IEC 61386-21.ZINC-PLATED STEEL FOR STRAIGHT EMT JOINTS This Autofijación coupling joins two metric EMT lengths in dry indoor installations. Its steel body encloses the ends of both tubes and provides mechanical protection at the joint. An electro-galvanized finish helps protect the steel against corrosion. The range covers 20, 25, 32, 40 and 50 mm EMT. Steel […]
VIEWINQUIRY -
Metric EMT Connector – Autofijación Type – SteelVelkor Autofijación Steel EMT Connectors provide the transition from matching metric conduit to a box or cabinet. Five sizes cover 20, 25, 32, 40 and 50 mm conduit for installations specifying the Autofijación fitting format. Complies with IEC 61386-1 and IEC 61386-21.ELECTRO-GALVANIZED STEEL FOR EMT BOX CONNECTIONS This Autofijación connector joins metric EMT to a box or cabinet in dry indoor installations. The steel body provides mechanical protection at the entry, and its zinc plating helps protect the steel from rust. The metric threaded end fastens the connector to the enclosure. Steel body provides a metal […]
VIEWINQUIRY -
Service Entrance Cap (Weatherhead)Velkor Service Entrance Caps terminate the upper end of an overhead service raceway and guide conductors toward downward-facing exits. The weatherhead arrangement helps reduce rain entry at the raceway opening while providing the transition from enclosed conduit to overhead conductors. Complies with UL 514B.RAIN PROTECTION AT THE SERVICE ENTRY Velkor service entrance caps fit at the top of an overhead service conduit. The hood and downward-facing wire exits help keep rain out of the conduit while allowing the service wires to pass through. The range covers 1/2 to 1-1/2 inches, corresponding to 20-50mm for metric size. Hooded entry […]
VIEWINQUIRY -

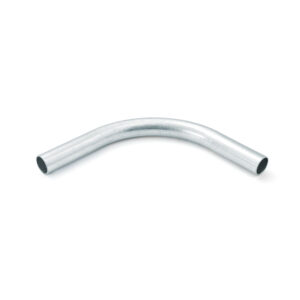

90° Metric EMT Conduit Elbow – SteelVelkor 90° Metric EMT Steel Elbows provide a curved direction change between conduit sections. Five sizes from 20 to 50 mm allow the route to turn through 90 degrees without forming that bend from straight conduit on site. Complies with IEC 61386-1 and IEC 61386-21.PRE-FORMED 90° BENDS FOR METRIC EMT This steel elbow provides a ready-made 90° turn in an EMT run. Using a pre-formed bend removes the need to make that bend on site and gives repeated corners the same angle. The curved steel tube keeps the conductors enclosed through the change in direction. Pre-formed 90° angle reduces […]
VIEWINQUIRY -

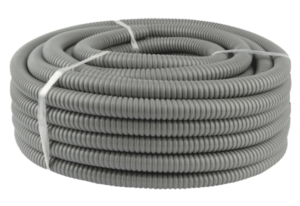

UV-Resistant Flexible Metal ConduitVelkor UV Series combines a flexible steel core with a UV-resistant, halogen-free thermoplastic jacket for cable protection along routes exposed to sunlight. Available in sizes from 20 to 50 mm, it provides a flexible connection between fixed conduit and equipment.STEEL CORE WITH A UV-RESISTANT, HALOGEN-FREE JACKET The flexible steel core provides mechanical protection for wiring and accommodates changes in routing direction. The outer jacket combines UV resistance with a halogen-free thermoplastic formulation. Jacket thickness is 0.5 mm on 20–32 mm sizes and 0.7 mm on 40–50 mm sizes. UV-resistant jacket for cable routes exposed […]
VIEWINQUIRY
LOAD MORE PRODUCTS
