Electrical Metallic Tubing

Velkor manufactures Electrical Metallic Tubing (EMT) for commercial, industrial, and residential electrical installations. Every conduit is produced from premium low-carbon steel, delivering smooth bending performance, dimensional consistency, and dependable installation efficiency. Whether you need a cost-effective standard solution or maximum corrosion protection for demanding environments, Velkor offers the right zinc coating option for your project.

Three Zinc Coating Options

5-Star – Signature EMT Conduit

VK050S–VK400S

Hot-Dip Galvanized EMT Conduit

VK050H–VK400H

3-Star – Economic EMT Conduit

VK050–VK400

5 Star Signature EMT Conduit

Standard

This conduit is not conforms to UL797 standard

Material

Premium low-carbon steel

Finish

Premium pre-galvanized, 275g/m2 zinc coating

Length

3000 mm

Click a row to add it to your inquiry.

Trade Size	Catalog No.	O.D. (mm)	Wall (mm)	Length (mm)	Weight (kg)	Zinc Coating (μm)
1/2"	VK-050S	17.9	1.00	3000	1.25	30–40
3/4"	VK-075S	23.4	1.2	3000	1.97	30–40
1"	VK-100S	29.5	1.4	3000	2.91	30–40
1 1/4"	VK-125S	38.4	1.6	3000	4.36	30–40
1 1/2"	VK-150S	44.2	1.6	3000	5.04	30–40
2"	VK-200S	55.8	1.6	3000	6.42	30–40
2 1/2"	VK-250S	73	1.8	3000	9.48	30–40
3"	VK-300S	88.9	1.8	3000	11.60	30–40
3 1/2"	VK-350S	101.6	2.1	3000	15.46	30–40
4"	VK-400S	114.3	2.1	3000	17.43	30–40

Click any row to add that size to your inquiry.

CUT SHEET (PDF)

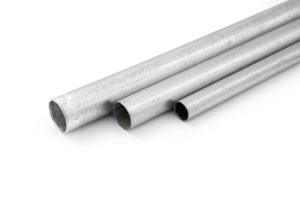

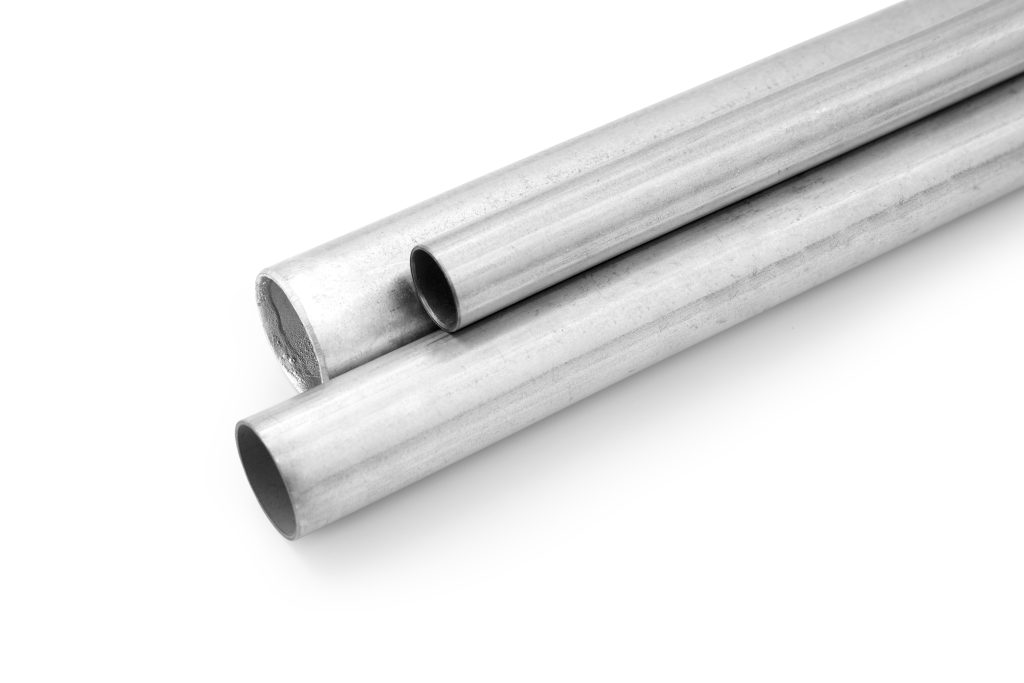

Hot-Dip Galvanized EMT Conduit

Standard

ANSI C80.3, UL797

Material

Premium low-carbon steel

Finish

Hot-dip galvanized

Length

3050 mm

Click a row to add it to your inquiry.

Trade Size	Catalog No.	O.D. (mm)	Wall (mm)	Length (mm)	Weight (kg)	Zinc Coating (μm)
1/2"	VK-050H	17.9	1.07	3050	1.388	40–60
3/4"	VK-075H	23.4	1.25	3050	2.135	40–60
1"	VK-100H	29.5	1.45	3050	3.136	40–60
1 1/4"	VK-125H	38.4	1.65	3050	4.675	40–60
1 1/2"	VK-150H	44.2	1.65	3050	5.413	40–60
2"	VK-200H	55.8	1.65	3050	6.888	40–60
2 1/2"	VK-250H	73	1.83	3050	10.041	40–60
3"	VK-300H	88.9	1.83	3050	12.284	40–60
3 1/2"	VK-350H	101.6	2.11	3050	16.184	40–60
4"	VK-400H	114.3	2.11	3050	18.25	40–60

Click any row to add that size to your inquiry.

CUT SHEET (PDF)

3-Star Economic EMT Conduit

Standard

This conduit is not conforms to UL797 standard

Material

Premium low-carbon steel

Finish

Pre-galvanized

Length

3.00 m

Click a row to add it to your inquiry.

Trade Size	Catalog No.	O.D. (mm)	Wall (mm)	Length (mm)	Weight (kg)	Zinc Coating (μm)
1/2"	VK-050	17.9	1.00	3000	1.25	5–10
3/4"	VK-075	23.4	1.2	3000	1.97	5–10
1"	VK-100	29.5	1.4	3000	2.91	5–10
1 1/4"	VK-125	38.4	1.6	3000	4.36	5–10
1 1/2"	VK-150	44.2	1.6	3000	5.04	5–10
2"	VK-200	55.8	1.6	3000	6.42	5–10
2 1/2"	VK-250	73	1.8	3000	9.48	5–10
3"	VK-300	88.9	1.8	3000	11.60	5–10
3 1/2"	VK-350	101.6	2.1	3000	15.46	5–10
4"	VK-400	114.3	2.1	3000	17.43	5–10

Click any row to add that size to your inquiry.

CUT SHEET (PDF)

Zinc coating data are obtained from 30 individual thickness measurements for each coating type.

*Compliance note: 3-star and 5-star EMT conduits are not UL Listed or CSA certified and are not represented as conforming to UL 797 or CSA C22.2 No. 83.1. For applications requiring these standards, please select Velkor Hot-Dip Galvanized EMT Conduit.
