Home EMT Conduit System EMT Connector – Set Screw Type – Zinc Die Cast

Velkor EMT Fittings

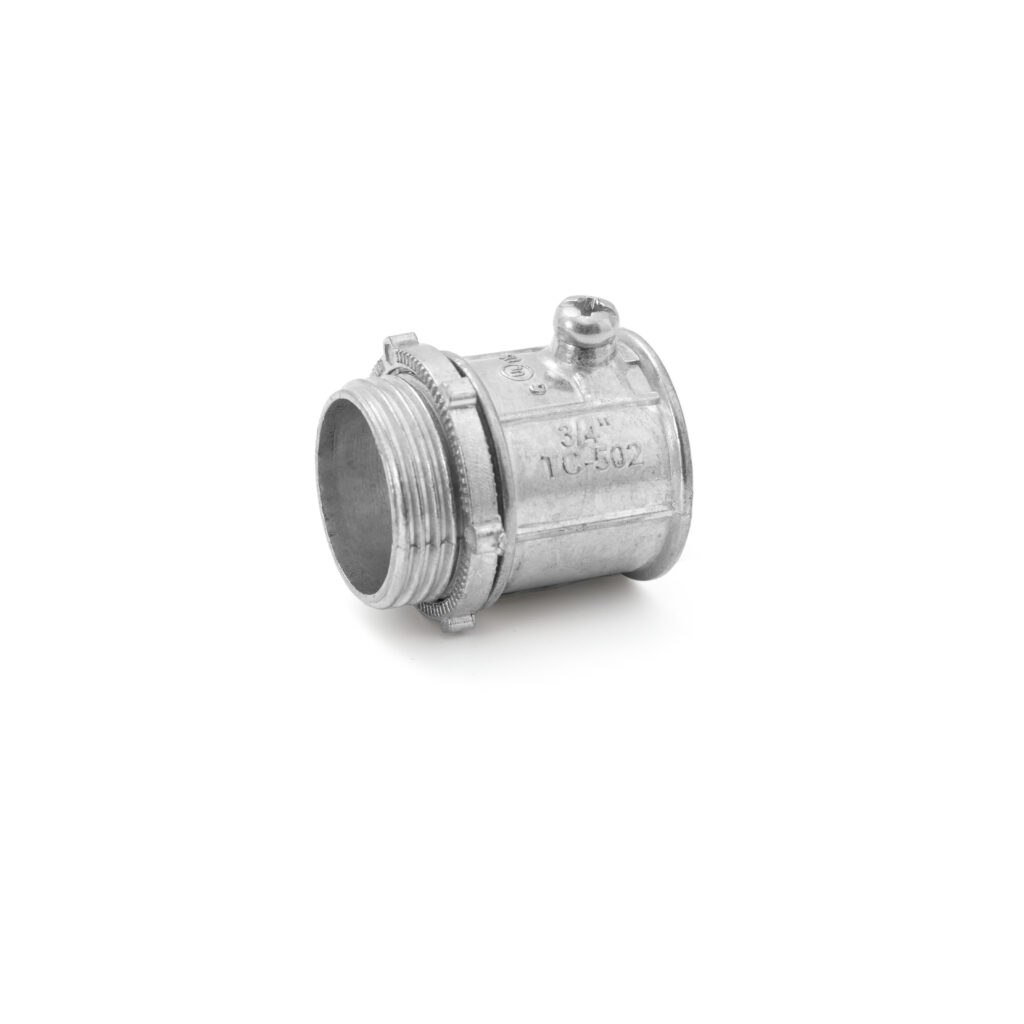

EMT Connector – Set Screw Type – Zinc Die Cast

Velkor set-screw EMT connectors are die-cast from virgin zinc alloy rather than lower-grade recycled material. Maintaining a controlled alloy composition helps reduce brittleness and the risk of cracking, giving the fitting greater toughness during installation, handling and transport.

BETTER FITTINGS BEGIN WITH BETTER ZINC The performance of a die-cast fitting begins with the metal poured into the mold. At Velkor, we use virgin zinc alloy with a controlled material composition to produce fittings with consistent strength, cleaner cast surfaces and reduced brittleness. Lower-grade recycled material may contain inconsistent alloying elements or impurities that […]

MATERIAL

Zinc Die Cast

FINISH

Natural Zinc Alloy Finish

TRADE SIZES

1/2" – 4"

Catalog No.

VK501-VK510

ADD TO INQUIRY

REQUEST A QUOTE

Need technical details? Download Spec Sheet (PDF, 4 MB)

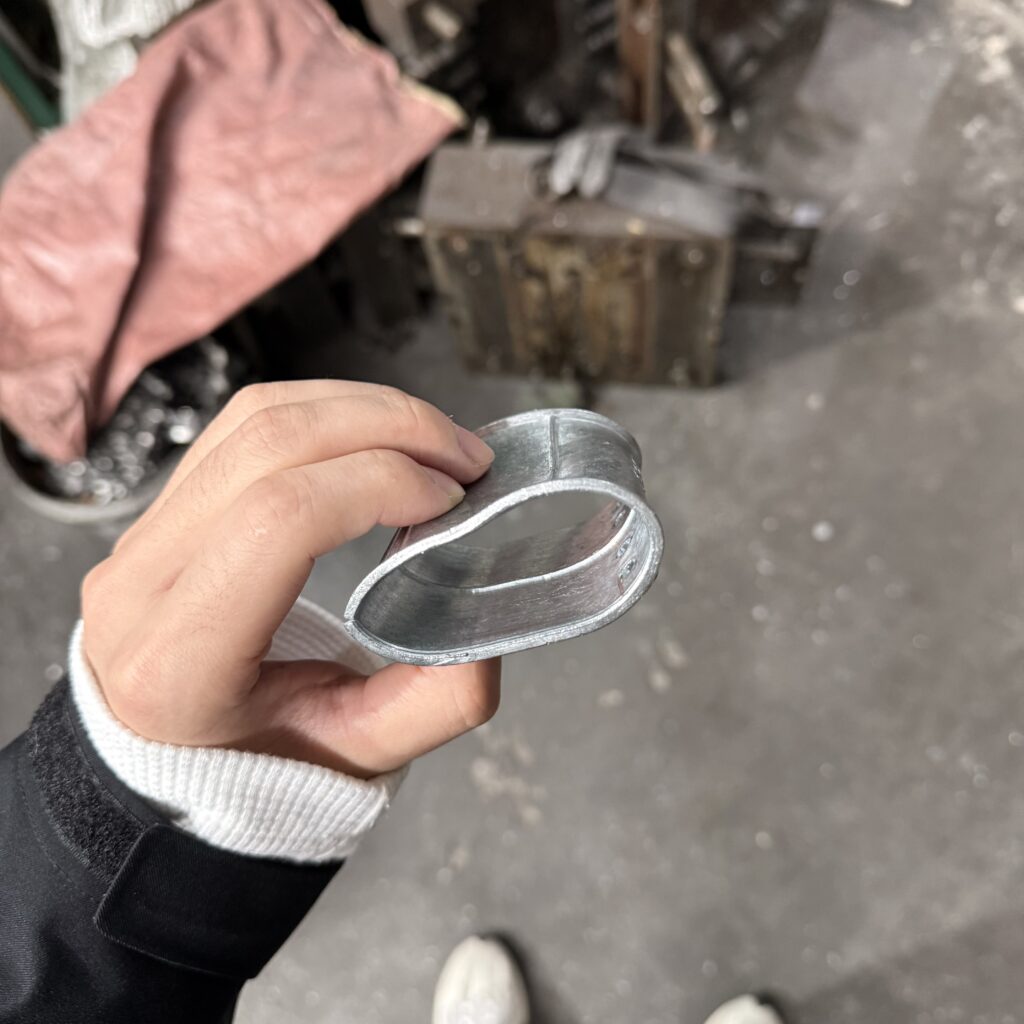

BETTER FITTINGS BEGIN WITH BETTER ZINC

The performance of a die-cast fitting begins with the metal poured into the mold. At Velkor, we use virgin zinc alloy with a controlled material composition to produce fittings with consistent strength, cleaner cast surfaces and reduced brittleness.

Lower-grade recycled material may contain inconsistent alloying elements or impurities that increase the possibility of cracking under impact or installation pressure. Our zinc fittings are made to withstand demanding handling and resist the sudden brittle failure sometimes found in lower-quality cast products.

This material choice costs more, but it produces a fitting that installers can handle with greater confidence—because reliability should be built into the product before it leaves the mold.

One-piece die-cast body provides consistent shape and dimensions.
Set-screw connection allows simple conduit installation and removal.
Integral threaded end fits electrical boxes and enclosures.
Brand new material — Velkor set-screw EMT connectors are die-cast from virgin zinc alloy rather than lower-grade recycled material. Maintaining a controlled alloy composition helps reduce brittleness and the risk of cracking, giving the fitting greater toughness during installation, handling, and transport.

TYPICAL APPLICATIONS

Commercial Buildings

Industrial Facilities

General Indoor EMT Runs

Cabinets

Electrical Panels

Specifications

EMT Connector - Set Screw Type - Zinc Die Cast

VK501-VK510

EMT Connector - Set Screw Type - Zinc Die Cast

Standard

UL514B

Material

Steel

Finish

Natural Zinc Alloy Finish

Click a row to add it to your inquiry.

Catalog No.	Trade Size
VK501	1/2"
VK502	3/4"
VK503	1"
VK504	1 1/4"
VK505	1 1/2"
VK506	2"
VK507	2 1/2"
VK508	3"
VK510	4"

Click any row to add that size to your inquiry.

CUT SHEET (PDF)

Dimensions are nominal and subject to standard manufacturing tolerances.

Packaging quantities may vary by catalog number. Please confirm any project-specific or certification requirements before ordering.
