Set-Screw Termination from Metric EMT to an Enclosure

Metric EMT Connector – Set-Screw Type – Zinc

Velkor Zinc Set-Screw EMT Connectors terminate unthreaded metric conduit at junction boxes, cabinets and panels. The conduit-side screw secures the tube, while the threaded enclosure end forms the box entry. Sizes run from 16 to 110 mm. Complies with IEC 61386-1 and IEC 61386-21.

BEST-SELLING CONDUIT FITTINGS Velkor Metric EMT Connectors are manufactured using 100% brand-new zinc material. The connector body is zinc die-cast, while the locknut and screw are made of steel. Reinforcing ribs along the body provide additional structural strength and help maintain the connector’s rigidity during installation. High-quality tooling, combined with experienced mold technicians and controlled […]

MATERIAL

Zinc

TRADE SIZES

16–110 mm

Catalog No.

IEC-500–IEC-509

ADD TO INQUIRY

REQUEST A QUOTE

BEST-SELLING CONDUIT FITTINGS

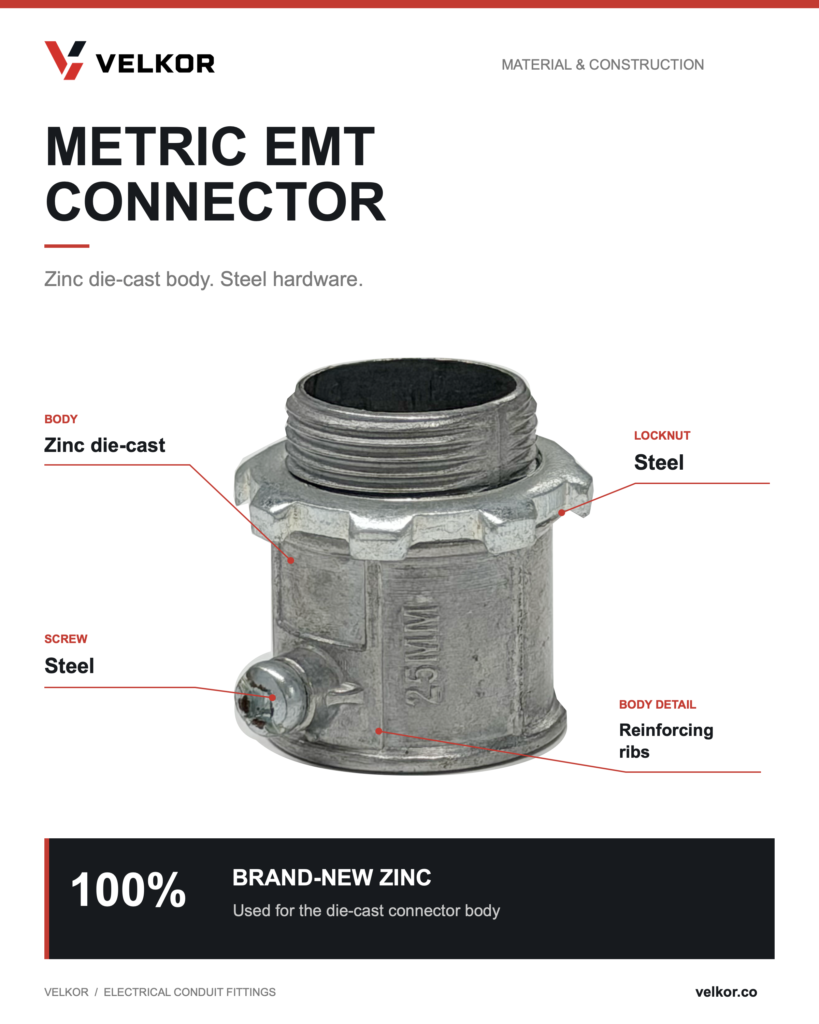

Velkor Metric EMT Connectors are manufactured using 100% brand-new zinc material. The connector body is zinc die-cast, while the locknut and screw are made of steel.

Reinforcing ribs along the body provide additional structural strength and help maintain the connector’s rigidity during installation. High-quality tooling, combined with experienced mold technicians and controlled die-casting processes, helps minimize porosity and maintain consistent, even wall thickness throughout the connector body.

The use of brand-new zinc material also provides excellent toughness and ductility. Under heavy impact, the connector is designed to deform rather than crack or fracture—even when struck directly with a hammer.

TYPICAL APPLICATIONS

Commercial buildings

Industrial facilities

Specifications

ZINC SET-SCREW CONNECTOR

IEC-500–IEC-509

METRIC EMT SET-SCREW CONNECTOR

Standard

IEC 61386-1; IEC 61386-21

Material

Zinc

Click a row to add it to your inquiry.

Catalog No.	Metric Conduit Size
IEC-500	16 mm
IEC-501	20 mm
IEC-502	25 mm
IEC-503	32 mm
IEC-504	40 mm
IEC-505	50 mm
IEC-506	63 mm
IEC-507	75 mm
IEC-508	90 mm
IEC-509	110 mm

Choose a connector for a box entry; choose a coupling when joining two EMT lengths.

CUT SHEET (PDF)

The stated conduit size is not a knockout-hole dimension. Match the entry opening and enclosure wall thickness to the connector dimensions.

Leave access to the set screw after adjacent conduits and fittings are installed. Closely spaced entries need clearance for both the fitting body and the installation tool.
