Steel Box Entry for Autofijación Metric EMT Systems

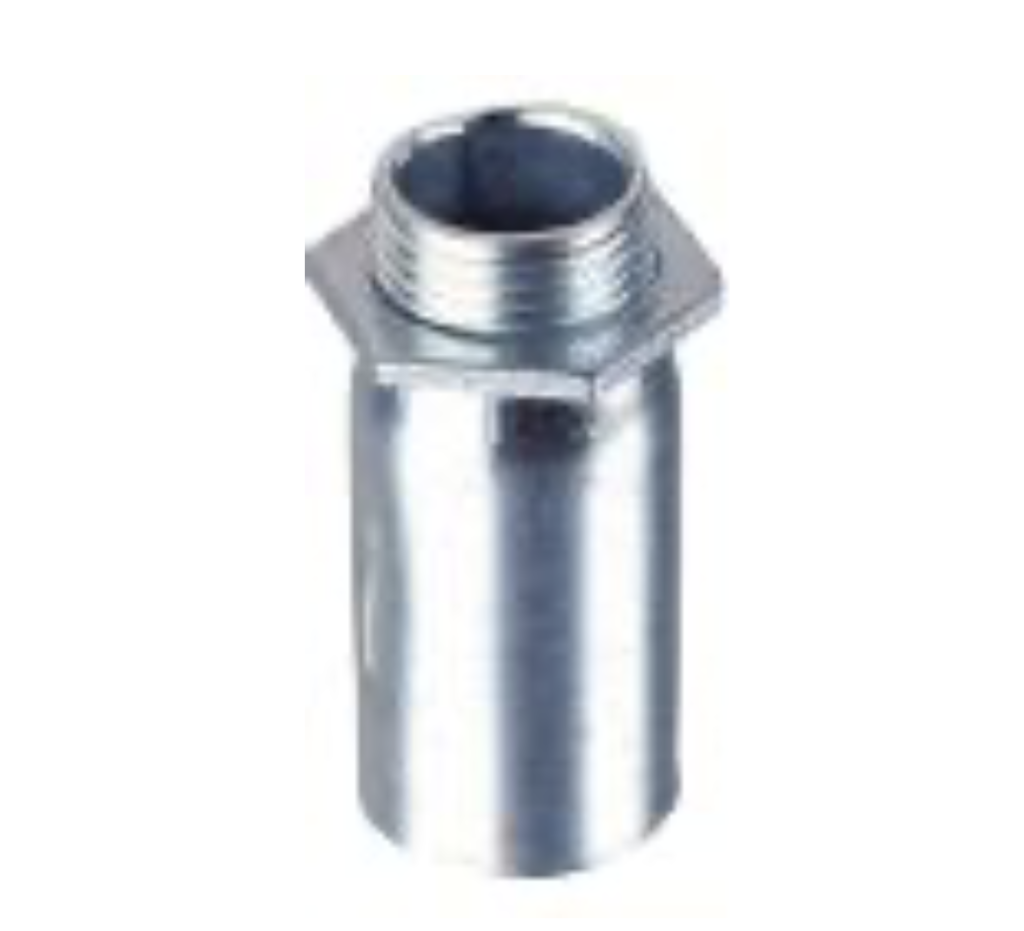

Metric EMT Connector – Autofijación Type – Steel

Velkor Autofijación Steel EMT Connectors provide the transition from matching metric conduit to a box or cabinet. Five sizes cover 20, 25, 32, 40 and 50 mm conduit for installations specifying the Autofijación fitting format. Complies with IEC 61386-1 and IEC 61386-21.

ELECTRO-GALVANIZED STEEL FOR EMT BOX CONNECTIONS This Autofijación connector joins metric EMT to a box or cabinet in dry indoor installations. The steel body provides mechanical protection at the entry, and its zinc plating helps protect the steel from rust. The metric threaded end fastens the connector to the enclosure. Steel body provides a metal […]

MATERIAL

Steel

TRADE SIZES

20–50 mm

Catalog No.

IEC-501S–IEC-505S

ADD TO INQUIRY

REQUEST A QUOTE

ELECTRO-GALVANIZED STEEL FOR EMT BOX CONNECTIONS

This Autofijación connector joins metric EMT to a box or cabinet in dry indoor installations. The steel body provides mechanical protection at the entry, and its zinc plating helps protect the steel from rust. The metric threaded end fastens the connector to the enclosure.

TYPICAL APPLICATIONS

Commercial buildings

Industrial facilities

Data & power

Specifications

STEEL AUTOFIJACIÓN CONNECTOR

IEC-501S–IEC-505S

METRIC EMT AUTOFIJACIÓN STEEL CONNECTOR

Standard

IEC 61386-1; IEC 61386-21

Material

Steel

Finish

Electro-galvanized

Click a row to add it to your inquiry.

Catalog No.	Metric Conduit Size
IEC-501S	20 mm
IEC-502S	25 mm
IEC-503S	32 mm
IEC-504S	40 mm
IEC-505S	50 mm

Use the connector at the enclosure and the Autofijación coupling between conduit lengths.

CUT SHEET (PDF)

The body is steel with an electro-galvanized finish; the box-entry end has a metric thread.

Matching Autofijación couplings are listed separately under IEC-511S–IEC-515S.
