Metric Unthreaded Steel Conduit for Cable Routing and Protection

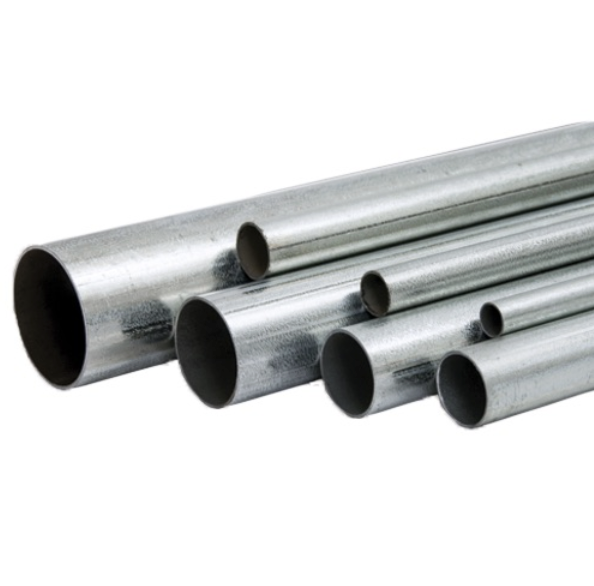

Metric EMT Steel Conduit – Unthreaded

Velkor Metric EMT Steel Conduit is an unthreaded metallic raceway for routing and protecting electrical conductors. Six metric sizes are supplied in 3 m lengths, with confirmed outside-diameter limits, wall thickness, piece weight and bundle quantity shown for each catalog number.

A LIGHTER, UNTHREADED ALTERNATIVE TO RMC Choose this pre-galvanized EMT when the installation calls for classification 4422 and an unthreaded metric conduit system rather than heavy-wall, threaded RMC. With 1.00–1.40 mm walls across the range, it uses less steel and has a lower piece weight than the corresponding RMC sizes, reducing the load that installers […]

MATERIAL

Steel

FINISH

Pre-galvanized

LENGTH

3 m

TRADE SIZES

16–50 mm

Catalog No.

IEC-16EMT–IEC-50EMT

O.D

16 - 50 mm

Wall

1.0 - 1.5 mm

ADD TO INQUIRY

REQUEST A QUOTE

A LIGHTER, UNTHREADED ALTERNATIVE TO RMC

Choose this pre-galvanized EMT when the installation calls for classification 4422 and an unthreaded metric conduit system rather than heavy-wall, threaded RMC. With 1.00–1.40 mm walls across the range, it uses less steel and has a lower piece weight than the corresponding RMC sizes, reducing the load that installers and logistics teams need to handle.

Straight runs are completed with matching EMT connectors and couplings, so conduit ends do not need to be threaded in the field. Select Hot-Dip Galvanized RMC instead when the project specification requires classification 5577, a heavier wall, threaded connections or a hot-dip galvanized finish.

Classification 4422 identifies the specified performance class for this pre-galvanized EMT range.
Pre-galvanized steel construction hot dip galvanized type is alsooffered in this metric product line.
Unthreaded connection system works with matching EMT connectors and couplings without field-threading the conduit ends.
Lighter than the corresponding RMC sizes with 1.00–1.40 mm walls and lower piece weights for handling and transport planning.

TYPICAL APPLICATIONS

Projects specifying classification 4422

Unthreaded metric conduit runs

Installations using matching EMT connectors and couplings

Projects prioritizing lower conduit weight than RMC

Specifications

METRIC EMT CONDUIT

IEC-16EMT–IEC-50EMT

METRIC EMT STEEL CONDUIT

Standard

IEC 61386 · Classification 4422

Material

Steel

Finish

Pre-galvanized

Length

3 m

Click a row to add it to your inquiry.

Catalog No.	Nominal Size	Min. O.D.	Max. O.D.	Wall Thickness	Length	Weight/Pc	Qty/Bundle
IEC-16EMT	16 mm	15.80 mm	16.00 mm	1.00 mm	3 m	1.095 kg	10
IEC-20EMT	20 mm	19.70 mm	20.00 mm	1.00 mm	3 m	1.383 kg	10
IEC-25EMT	25 mm	24.80 mm	25.00 mm	1.20 mm	3 m	2.095 kg	10
IEC-32EMT	32 mm	31.70 mm	32.00 mm	1.40 mm	3 m	3.138 kg	5
IEC-40EMT	40 mm	39.70 mm	40.00 mm	1.40 mm	3 m	3.967 kg	5
IEC-50EMT	50 mm	49.60 mm	50.00 mm	1.40 mm	3 m	4.992 kg	5

Select the metric size that matches the fittings and installation specification for the project.

CUT SHEET (PDF)

Complies with IEC 61386 requirements for conduit systems and meets classification code 4422.

Classification 4422 represents 1,250 N compression resistance, 6 J impact resistance, a minimum temperature classification of −5 °C, and a maximum temperature classification of +90 °C.

Modern Standards for Traditional Products

Verified

Product verified against Velkor quality standards before it ships.

PRECISE

Precision in every detail, from engineering drawing to final delivery.

RELIABLE

Stable quality and dependable lead times you can plan a project around.

SYSTEMATIC

A structured process that keeps complex projects consistent and on track.

PARTNER

More than a supplier — we build long-term partnerships with our clients.

Manufacturing Center of Excellence

Contact & Inquiry

Let's Make Sourcing Simple.

Send us your specifications, drawings, or project requirements. We’ll help you find the right fit and get things moving. We respond within 8 hours.

Info@velkor.co

China: +86 158-6717-8588

ADDRESS

Puyang Industrial Zone, Hangzhou, Zhejiang, China

NAME COMPANY EMAIL PHONE PRODUCT OF INTEREST MESSAGE

Send Inquiry

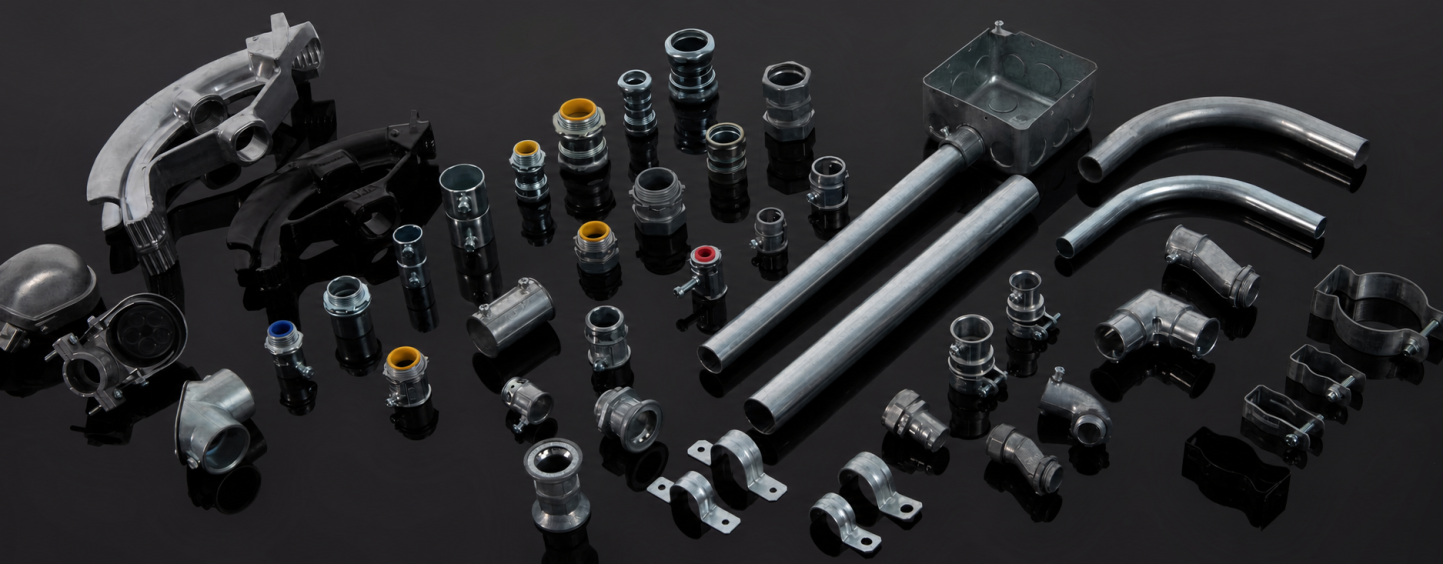

Electrical Metallic Tubing
