Home IEC 61386 Conduit System Metric RMC Steel Conduit – Hot-Dip Galvanized

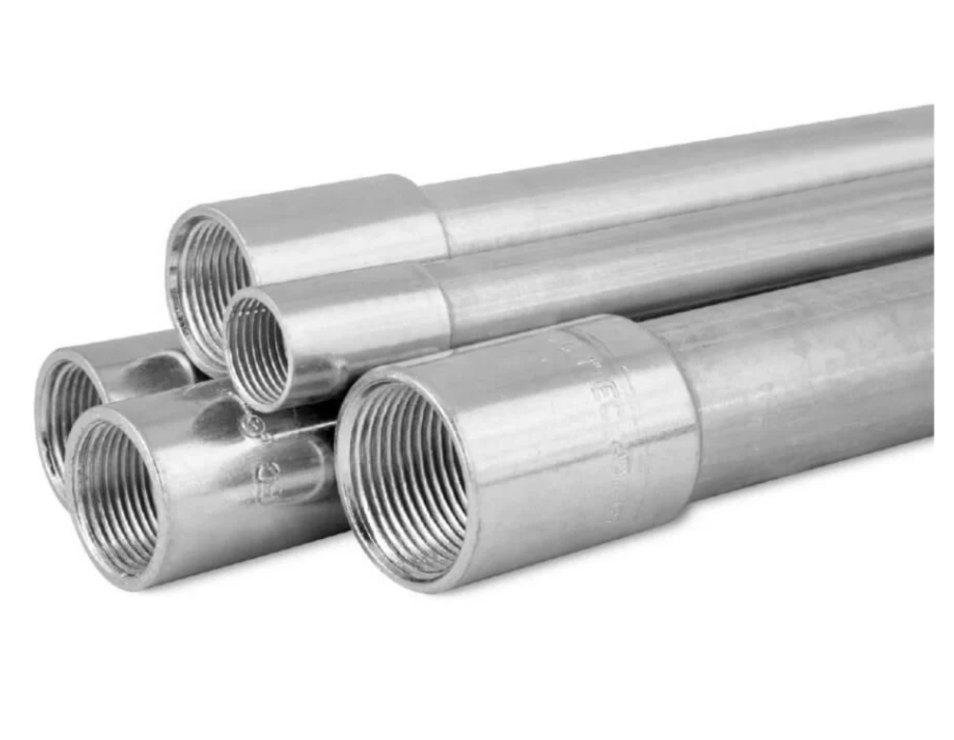

Threaded Metric Rigid Conduit with a Hot-Dip Galvanized Finish

Metric RMC Steel Conduit – Hot-Dip Galvanized

Velkor Metric RMC Steel Conduit is a heavier-wall metallic raceway with threaded ends for compatible rigid-conduit connections. The supplied table covers 20–110 mm sizes in 3 m lengths and records diameter limits, wall thickness, piece weight and package quantity for each model.

WHEN THE SPECIFICATION CALLS FOR MORE THAN EMT Choose this Hot-Dip Galvanized RMC when the installation requires classification 5577, a heavier steel wall and threaded rigid-conduit connections. Wall thickness ranges from 2.50 mm to 4.50 mm, substantially heavier than Velkor’s pre-galvanized EMT range. This is the appropriate step up from EMT when the project specifies […]

MATERIAL

Steel

FINISH

Hot-Dip Galvanized

LENGTH

3 m

TRADE SIZES

20–110 mm

Catalog No.

IEC-20RMC–IEC-110RMC

ADD TO INQUIRY

REQUEST A QUOTE

WHEN THE SPECIFICATION CALLS FOR MORE THAN EMT

Choose this Hot-Dip Galvanized RMC when the installation requires classification 5577, a heavier steel wall and threaded rigid-conduit connections. Wall thickness ranges from 2.50 mm to 4.50 mm, substantially heavier than Velkor’s pre-galvanized EMT range.

This is the appropriate step up from EMT when the project specifies RMC construction rather than a lighter unthreaded raceway. Match the nominal diameter and thread requirements to the approved RMC fittings before ordering.

Classification 5577 is the specified performance class for this Hot-Dip Galvanized RMC range.
Heavier-wall construction uses size-specific steel walls from 2.50 mm to 4.50 mm.
Threaded RMC format requires matching rigid-conduit fittings rather than unthreaded EMT fittings.
20-110 mm size range covers nine cataloged sizes in 3 m lengths with listed piece weights.

TYPICAL APPLICATIONS

Commercial buildings

Industrial facilities

Heavy-wall metric raceway systems

Projects specifying a hot-dip galvanized conduit finish

Disaster places

Specifications

METRIC RIGID CONDUIT

IEC-20RMC–IEC-110RMC

METRIC RMC STEEL CONDUIT

Standard

IEC 61386 Classification 5577

Material

Steel

Finish

Hot-Dip Galvanized

Length

3 m

Click a row to add it to your inquiry.

Catalog No.	Nominal Size	Min. O.D.	Max. O.D.	Wall Thickness	Length	Weight/Pc	Qty/Package
IEC-20RMC	20 mm	19.70 mm	20.00 mm	2.50 mm	3 m	3.301 kg	10
IEC-25RMC	25 mm	24.80 mm	25.00 mm	2.50 mm	3 m	4.245 kg	10
IEC-32RMC	32 mm	31.70 mm	32.00 mm	3.00 mm	3 m	6.565 kg	5
IEC-40RMC	40 mm	39.70 mm	40.00 mm	3.25 mm	3 m	9.013 kg	5
IEC-50RMC	50 mm	49.60 mm	50.00 mm	3.25 mm	3 m	11.465 kg	5
IEC-63RMC	63 mm	62.60 mm	63.00 mm	3.50 mm	3 m	15.715 kg	3
IEC-75RMC	75 mm	74.60 mm	75.00 mm	3.50 mm	3 m	18.884 kg	3
IEC-90RMC	90 mm	89.60 mm	90.00 mm	4.50 mm	3 m	29.034 kg	2
IEC-110RMC	110 mm	109.60 mm	110.00 mm	4.50 mm	3 m	35.825 kg	2

Match the nominal diameter and thread requirements to the approved conduit fittings for the installation.

CUT SHEET (PDF)

Complies with IEC 61386 requirements for conduit systems and meets classification code 5577.

Hot-Dip Galvanized

Modern Standards for Traditional Products

Verified

Product verified against Velkor quality standards before it ships.

PRECISE

Precision in every detail, from engineering drawing to final delivery.

RELIABLE

Stable quality and dependable lead times you can plan a project around.

SYSTEMATIC

A structured process that keeps complex projects consistent and on track.

PARTNER

More than a supplier — we build long-term partnerships with our clients.

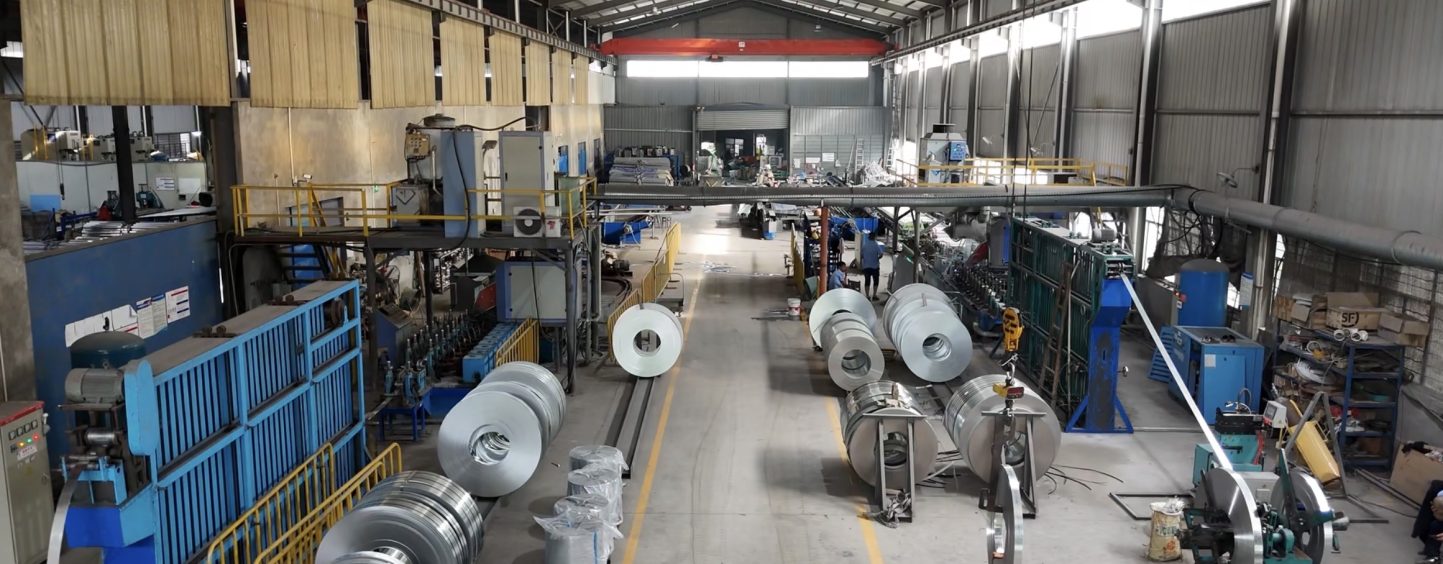

Manufacturing Center of Excellence
