Steel Straight Joint for Autofijación Metric EMT Systems

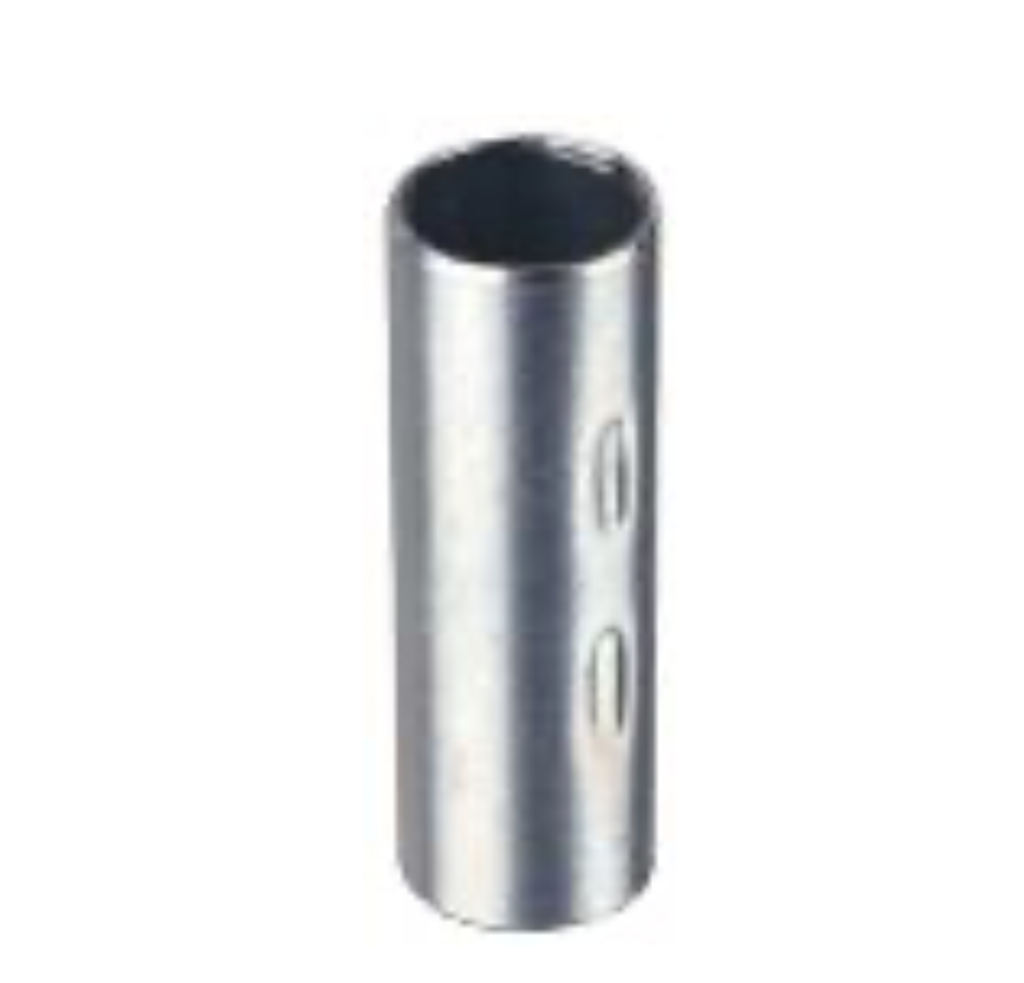

Metric EMT Coupling – Autofijación Type – Steel

Velkor Autofijación Steel EMT Couplings connect two matching conduit lengths in a straight route. The series covers 20–50 mm metric EMT and is intended for layouts specifying Autofijación fittings. Complies with IEC 61386-1 and IEC 61386-21.

ZINC-PLATED STEEL FOR STRAIGHT EMT JOINTS This Autofijación coupling joins two metric EMT lengths in dry indoor installations. Its steel body encloses the ends of both tubes and provides mechanical protection at the joint. An electro-galvanized finish helps protect the steel against corrosion. The range covers 20, 25, 32, 40 and 50 mm EMT. Steel […]

MATERIAL

Steel

FINISH

Electro-galvanized

TRADE SIZES

20–50 mm

Catalog No.

IEC-511S–IEC-515S

ADD TO INQUIRY

REQUEST A QUOTE

ZINC-PLATED STEEL FOR STRAIGHT EMT JOINTS

This Autofijación coupling joins two metric EMT lengths in dry indoor installations. Its steel body encloses the ends of both tubes and provides mechanical protection at the joint. An electro-galvanized finish helps protect the steel against corrosion. The range covers 20, 25, 32, 40 and 50 mm EMT.

TYPICAL APPLICATIONS

Commercial buildings

Industrial facilities

Data & power

Specifications

STEEL AUTOFIJACIÓN COUPLING

IEC-511S–IEC-515S

METRIC EMT AUTOFIJACIÓN STEEL COUPLING

Standard

IEC 61386-1; IEC 61386-21

Material

Steel

Click a row to add it to your inquiry.

Catalog No.	Metric Conduit Size
IEC-511S	20 mm
IEC-512S	25 mm
IEC-513S	32 mm
IEC-514S	40 mm
IEC-515S	50 mm

Use the coupling to continue the conduit route; select the connector where the route ends at a box.

CUT SHEET (PDF)

The steel body has an electro-galvanized finish. This series is for dry indoor locations.

Matching Autofijación box connectors are listed separately under IEC-501S–IEC-505S.
