Velkor Weatherproof Boxes

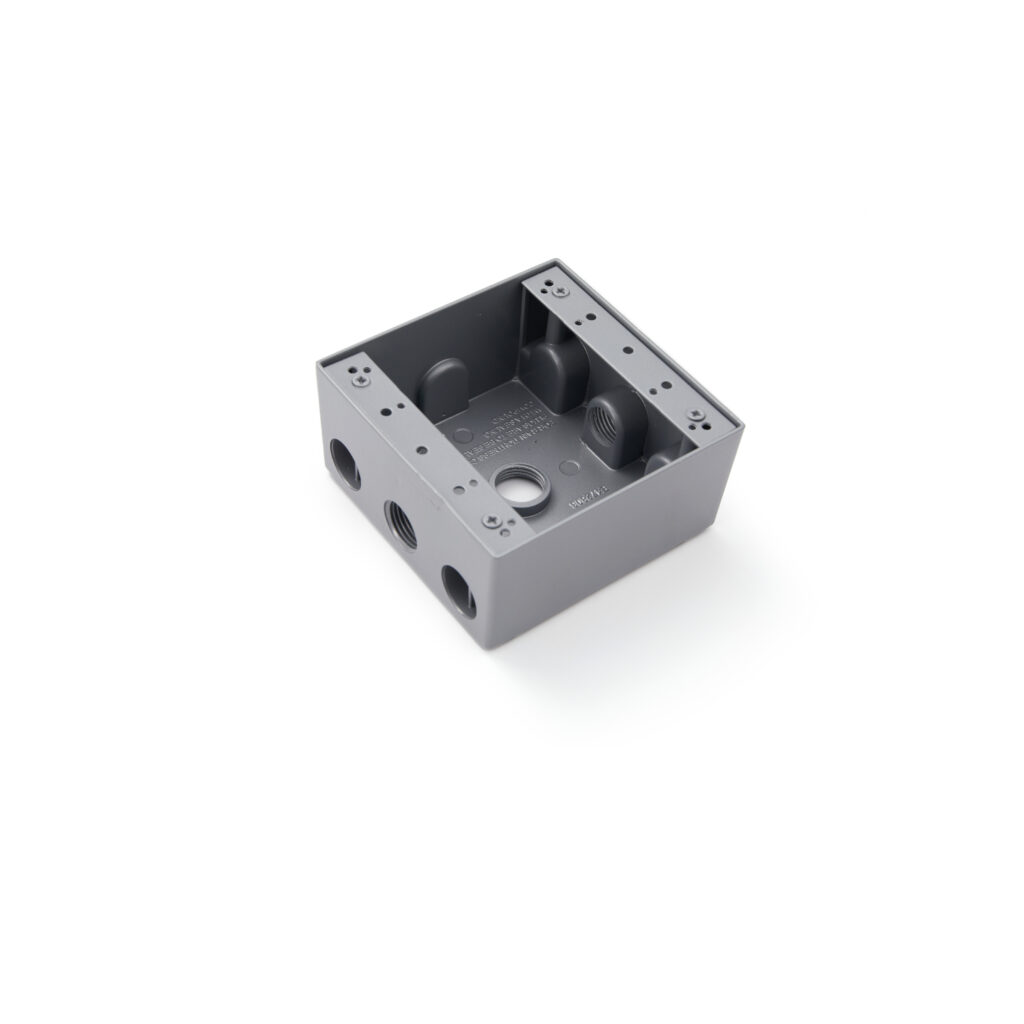

Double Gang Weatherproof Boxes

Velkor double gang weatherproof boxes provide cast aluminum wiring space for multi-device surface installations and conduit entry arrangements. The grouped catalog structure separates standard and side-opening hole patterns, with X suffixes reserved for side-opening models.

MORE DEVICE SPACE WITH CLEARLY GROUPED ENTRY PATTERNS Double- and triple-gang weatherproof boxes provide additional wiring and device space for installations that require more than a single-gang enclosure. The catalog range groups the available hole patterns by gang size, opening count, and entry arrangement so buyers can compare configurations on one page. The powder-coated aluminum […]

MATERIAL

Aluminum

FINISH

Powder-coated

Catalog No.

TGB50-3 – WB100-7

ADD TO INQUIRY
REQUEST A QUOTE

MORE DEVICE SPACE WITH CLEARLY GROUPED ENTRY PATTERNS

Double- and triple-gang weatherproof boxes provide additional wiring and device space for installations that require more than a single-gang enclosure. The catalog range groups the available hole patterns by gang size, opening count, and entry arrangement so buyers can compare configurations on one page.

The powder-coated aluminum construction keeps the larger enclosure formats manageable during installation. Ordinary models and side-opening versions remain clearly separated, with the X suffix identifying catalog numbers that include side openings.

  • Multi-gang capacity: Supports double- and triple-gang device and wiring arrangements.
  • Grouped configurations: Organizes different hole counts and entry patterns for easier comparison.
  • Powder-coated aluminum: Combines a lightweight metal body with a confirmed applied finish.
  • Consistent suffix rule: Identifies side-opening models with an X at the end of the catalog number.

TYPICAL APPLICATIONS

Commercial buildings

Industrial facilities

Muti-device installations

Compatible multi-gang covers

Conduit distribution points

4" Square Conduit Boxes, 2"x4" Handy Boxes, Conduit Bodies, Weatherproof Boxes Single Gang, BS standard Switch Boxes, IEC 61386 Standard Electra Box A01, A11

Specifications

3 Hole

TGB50-3 · TGB75-3 · TGB100-3

4 Hole

TGB50-4 · TGB75-4 · TGB100-4

5 Hole

TGB50-5 · TGB75-5 · DTB50-5 · DTB75-5 · DTB100-5

5 Hole Side Opening

TGB50-5X · TGB75-5X · TGB100-5X

6 Hole Side Opening

TGB50-6X · TGB75-6X

Ordinary 7 Hole

TGB50-7 · TGB75-7

7 Hole Side Opening

TGB50-7X · TGB75-7X · DTB50-7X · DTB75-7X · DTB100-7X

Triple-Gang Ordinary 7 Hole

WB50-7 · WB75-7 · WB100-7
Double-Gang Weatherproof Boxes – 3 Hole
Standard

UL514A

Material

Aluminum

Finish

Powder-coated

Click a row to add it to your inquiry.

Catalog No. Hole Size Depth Capacity Outlet Configuration
TGB50-3 1/2" 2" 31 cu. in. Top: 1 · Bottom: 1 · Back: 1 · Total: 3
TGB75-3 3/4" 2" 31 cu. in. Top: 1 · Bottom: 1 · Back: 1 · Total: 3
TGB100-3 1" 2" 31 cu. in. Top: 1 · Bottom: 1 · Back: 1 · Total: 3

Click any row to add that catalog number to your inquiry basket.

CUT SHEET (PDF)
Double-Gang Weatherproof Boxes – 4 Hole
Standard

UL514A

Material

Aluminum

Finish

Powder-coated

Click a row to add it to your inquiry.

Catalog No. Hole Size Depth Capacity Outlet Configuration
TGB50-4 1/2" 2" 31 cu. in. Top: 2 · Bottom: 1 · Back: 1 · Total: 4
TGB75-4 3/4" 2" 31 cu. in. Top: 2 · Bottom: 1 · Back: 1 · Total: 4
TGB100-4 1" 2" 31 cu. in. Top: 2 · Bottom: 1 · Back: 1 · Total: 4

Click any row to add that catalog number to your inquiry basket.

CUT SHEET (PDF)
Double-Gang Weatherproof Boxes – 5 Hole
Standard

UL514A

Material

Aluminum

Finish

Powder-coated

Click a row to add it to your inquiry.

Catalog No. Hole Size Depth Capacity Outlet Configuration
TGB50-5 1/2" 2" 31 cu. in. Top: 2 · Bottom: 2 · Back: 1 · Total: 5
TGB75-5 3/4" 2" 31 cu. in. Top: 2 · Bottom: 2 · Back: 1 · Total: 5
DTB50-5 1/2" 2-5/8" 40 cu. in. Top: 2 · Bottom: 2 · Back: 1 · Total: 5
DTB75-5 3/4" 2-5/8" 40 cu. in. Top: 2 · Bottom: 2 · Back: 1 · Total: 5
DTB100-5 1" 2-5/8" 40 cu. in. Top: 2 · Bottom: 2 · Back: 1 · Total: 5

Click any row to add that catalog number to your inquiry basket.

CUT SHEET (PDF)
Double-Gang Weatherproof Boxes – 5 Hole Side Opening
Standard

UL514A

Material

Aluminum

Finish

Powder-coated

Click a row to add it to your inquiry.

Catalog No. Hole Size Depth Capacity Outlet Configuration
TGB50-5X 1/2" 2" 31 cu. in. Top: 1 · Bottom: 1 · Side 1: 1 · Side 2: 1 · Back: 1 · Total: 5
TGB75-5X 3/4" 2" 31 cu. in. Top: 1 · Bottom: 1 · Side 1: 1 · Side 2: 1 · Back: 1 · Total: 5
TGB100-5X 1" 2" 31 cu. in. Top: 1 · Bottom: 1 · Side 1: 1 · Side 2: 1 · Back: 1 · Total: 5

Click any row to add that catalog number to your inquiry basket.

CUT SHEET (PDF)
Double-Gang Weatherproof Boxes – 6 Hole Side Opening
Standard

UL514A

Material

Aluminum

Finish

Powder-coated

Click a row to add it to your inquiry.

Catalog No. Hole Size Depth Capacity Outlet Configuration
TGB50-6X 1/2" 2" 31 cu. in. Top: 2 · Bottom: 1 · Side 1: 1 · Side 2: 1 · Back: 1 · Total: 6
TGB75-6X 3/4" 2" 31 cu. in. Top: 2 · Bottom: 1 · Side 1: 1 · Side 2: 1 · Back: 1 · Total: 6

Click any row to add that catalog number to your inquiry basket.

CUT SHEET (PDF)
Double-Gang Weatherproof Boxes – Ordinary 7 Hole
Standard

UL514A

Material

Aluminum

Finish

Powder-coated

Click a row to add it to your inquiry.

Catalog No. Hole Size Depth Capacity Outlet Configuration
TGB50-7 1/2" 2" 31 cu. in. Top: 3 · Bottom: 3 · Back: 1 · Total: 7
TGB75-7 3/4" 2" 31 cu. in. Top: 3 · Bottom: 3 · Back: 1 · Total: 7

Click any row to add that catalog number to your inquiry basket.

CUT SHEET (PDF)
Double-Gang Weatherproof Boxes – 7 Hole Side Opening
Standard

UL514A

Material

Aluminum

Finish

Powder-coated

Click a row to add it to your inquiry.

Catalog No. Hole Size Depth Capacity Outlet Configuration
TGB50-7X 1/2" 2" 31 cu. in. Top: 2 · Bottom: 2 · Side 1: 1 · Side 2: 1 · Back: 1 · Total: 7
TGB75-7X 3/4" 2" 31 cu. in. Top: 2 · Bottom: 2 · Side 1: 1 · Side 2: 1 · Back: 1 · Total: 7
DTB50-7X 1/2" 2-5/8" 40 cu. in. Top: 2 · Bottom: 2 · Side 1: 1 · Side 2: 1 · Back: 1 · Total: 7
DTB75-7X 3/4" 2-5/8" 40 cu. in. Top: 2 · Bottom: 2 · Side 1: 1 · Side 2: 1 · Back: 1 · Total: 7
DTB100-7X 1" 2-5/8" 40 cu. in. Top: 2 · Bottom: 2 · Side 1: 1 · Side 2: 1 · Back: 1 · Total: 7

Click any row to add that catalog number to your inquiry basket.

CUT SHEET (PDF)
Triple-Gang Weatherproof Boxes – Ordinary 7 Hole
Standard

UL514A

Material

Aluminum

Finish

Powder-coated

Click a row to add it to your inquiry.

Catalog No. Hole Size Depth Capacity Outlet Configuration
WB50-7 1/2" 2" 54 cu. in. Top: 3 · Bottom: 3 · Back: 1 · Total: 7
WB75-7 3/4" 2" 54 cu. in. Top: 3 · Bottom: 3 · Back: 1 · Total: 7
WB100-7 1" 2" 54 cu. in. Top: 3 · Bottom: 3 · Back: 1 · Total: 7

Click any row to add that catalog number to your inquiry basket.

CUT SHEET (PDF)

Dimensions are nominal and subject to standard manufacturing tolerances.

Packaging quantities may vary by catalog number. Please confirm project-specific requirements before ordering.
