Home EMT Conduit System EMT Offset Connector – Set Screw – Zinc Die Cast

Set-Screw Zinc Die-Cast Offset Connector for EMT Box Entry

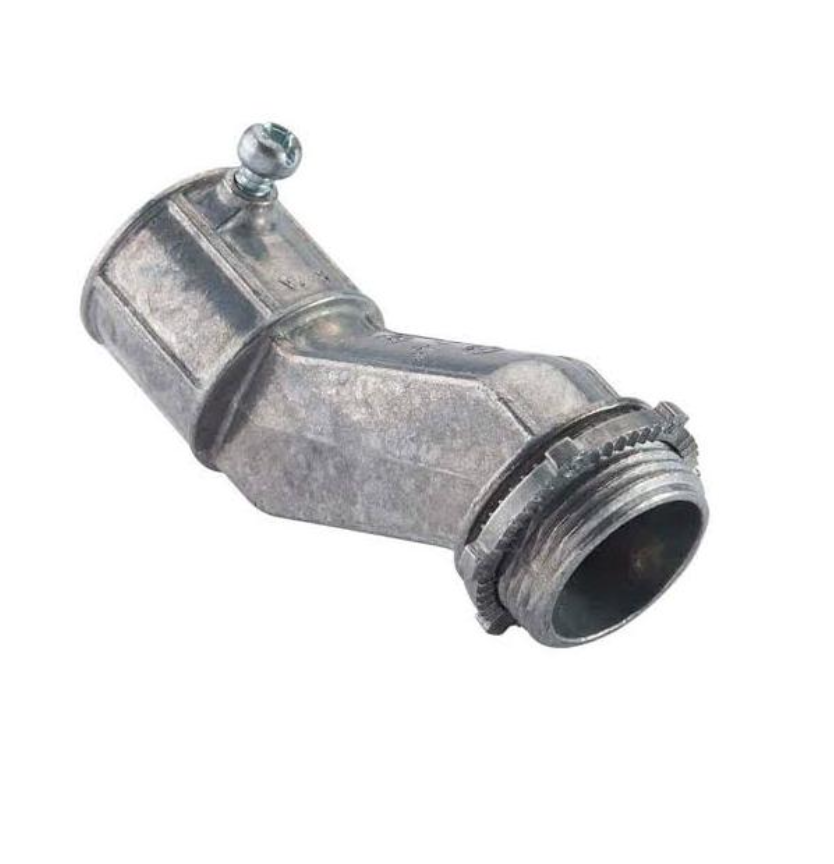

EMT Offset Connector – Set Screw – Zinc Die Cast

Velkor set-screw EMT offset connectors shift the conduit centerline before the threaded enclosure entry, helping align EMT with an offset box or knockout. Direct screw fastening makes the conduit connection easy to see and adjust during installation.

ALIGN THE ENTRY, NOT THE WHOLE CONDUIT RUN Small alignment differences near a box can otherwise force installers to rework the conduit route or create an additional field offset. This connector builds the lateral shift into the fitting so the EMT can meet a displaced knockout more cleanly. The set-screw version is the practical choice […]

MATERIAL

Zinc Die Cast

FINISH

Natural Zinc Alloy Finish

TRADE SIZES

1/2, 3/4 and 1 in

Catalog No.

VK-771–VK-773

ADD TO INQUIRY

REQUEST A QUOTE

Need technical details? Download Spec Sheet (PDF, 4 MB)

ALIGN THE ENTRY, NOT THE WHOLE CONDUIT RUN

Small alignment differences near a box can otherwise force installers to rework the conduit route or create an additional field offset. This connector builds the lateral shift into the fitting so the EMT can meet a displaced knockout more cleanly.

The set-screw version is the practical choice when direct fastening and visible screw access are preferred. Choose the compression version when a circumferential grip and a smoother exterior profile are more important.

Built-in offset corrects conduit-to-knockout alignment at the enclosure entry.
Set-screw fastening is direct to install, inspect and release.
Threaded box end provides the enclosure-side connection geometry.
Three trade sizes cover common small EMT runs from 1/2 to 1 inch.

TYPICAL APPLICATIONS

Offset knockouts

Cabinet entries

Retrofit alignment

Equipment connections

Specifications

Set-Screw Offset

VK-771–VK-773

Set-Screw EMT Offset Connector

Standard

UL514B

Material

Zinc Die Cast

Finish

Natural Zinc Alloy Finish

Click a row to add it to your inquiry.

Catalog No.	Trade Size
VK-771	1/2 in
VK-772	3/4 in
VK-773	1 in

CUT SHEET (PDF)

Confirm the required lateral offset against the current drawing; offset distance may vary by trade size and must match the box layout.

Plan screwdriver access to the set screw before fixing the enclosure or conduit against an adjacent wall or obstruction.
