Home EMT Conduit System EMT-to-Flex Connector – Zinc Die Cast

Compression-to-Screw-In Transition from EMT to Flexible Metal Conduit

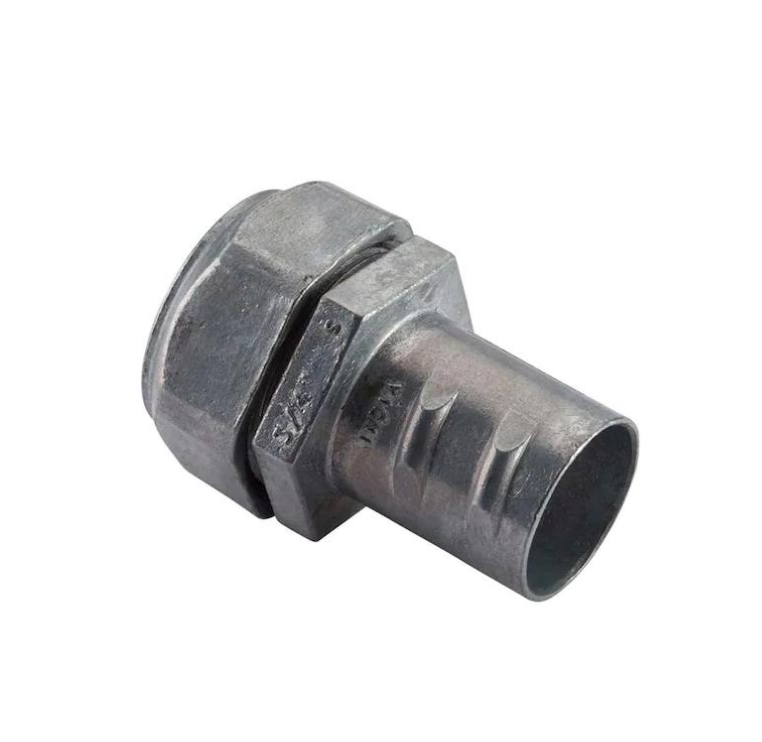

EMT-to-Flex Connector – Zinc Die Cast

Velkor EMT-to-Flex connectors combine a compression connection for EMT with a screw-in connection for flexible metal conduit. The one-piece transition replaces an improvised multi-fitting changeover and helps buyers coordinate a fixed EMT run with a flexible final section at equipment or other movement-sensitive connection points.

ONE FITTING FOR THE RIGID-TO-FLEXIBLE HANDOFF EMT is useful for the fixed portion of a raceway; flexible metal conduit is useful where the final approach needs movement or routing freedom. This connector is designed for the point where those two systems meet, with a compression interface on the EMT side and a screw-in interface on […]

MATERIAL

Zinc Die Cast

FINISH

Natural Zinc Alloy Finish

TRADE SIZES

1/2-to-1/2, 3/4-to-3/4 and 1-to-1 in

Catalog No.

VK-131–VK-133

ADD TO INQUIRY

REQUEST A QUOTE

ONE FITTING FOR THE RIGID-TO-FLEXIBLE HANDOFF

EMT is useful for the fixed portion of a raceway; flexible metal conduit is useful where the final approach needs movement or routing freedom. This connector is designed for the point where those two systems meet, with a compression interface on the EMT side and a screw-in interface on the flexible-conduit side.

Choose it when both sides use the same trade size and the flexible-conduit construction is compatible with the screw-in end. It is different from an EMT connector, which terminates EMT at an enclosure, and from a straight coupling, which joins two lengths of the same conduit type.

Two-system transition connects EMT directly to compatible flexible metal conduit.
Compression EMT end grips the tube without a projecting set screw.
Screw-in flex end gives the flexible conduit a dedicated mechanical interface.
Matched trade sizes simplify selection across the three cataloged variants.

TYPICAL APPLICATIONS

Motor approaches

Machinery connections

Lighting runs

Raceway transitions

Specifications

EMT-to-Flex

VK-131–VK-133

EMT-to-Flex Connector

Material

Zinc Die Cast

Finish

Natural Zinc Alloy Finish

Click a row to add it to your inquiry.

Catalog No.	EMT Side	Flex Side
VK-131	1/2 in	1/2 in
VK-132	3/4 in	3/4 in
VK-133	1 in	1 in

Include the catalog number, trade size and quantity in your inquiry.

CUT SHEET (PDF)

The flexible-conduit side is a screw-in connection. Confirm the exact FMC construction and inside profile before selecting a catalog number.

The catalog pairs equal nominal sizes on both ends; verify the EMT outside diameter and flexible-conduit fit before production release.
