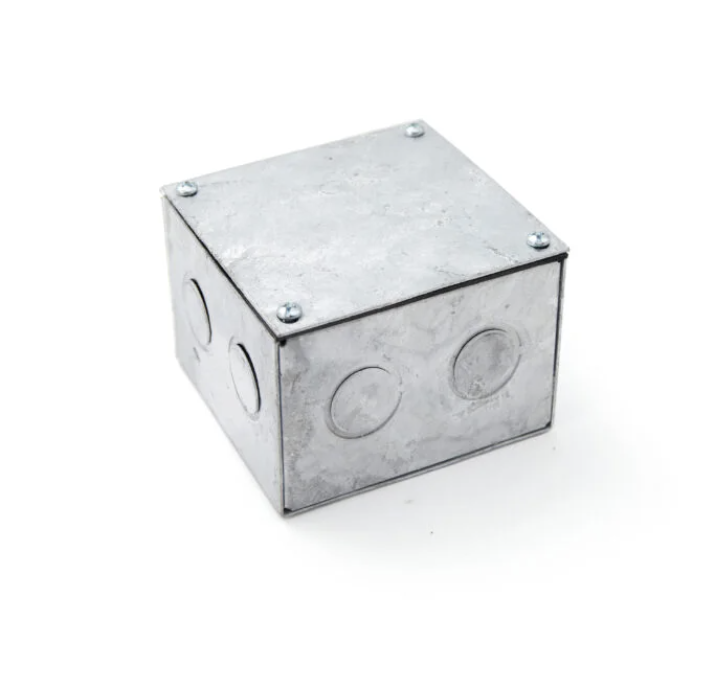

Hot-Dip Galvanized Electrical Junction Boxes – Chile Market

Velkor conduit boxes for the Chile market are formed from steel and finished by hot-dip galvanizing. Nine catalog sizes cover compact branch points through larger junction arrangements, with pre-galvanized construction also available as an ordering option.

FROM COMPACT JUNCTIONS TO LARGER PULLING SPACE. A conduit-box system has to accommodate more than one installation condition. A compact junction point, a multi-direction conduit connection and a larger conductor-pulling location can require very different box dimensions. This Chile-market range addresses those differences with nine square and rectangular configurations instead of forcing every installation into […]

MATERIAL

Steel

FINISH

Hot-dip galvanized

LENGTH

TRADE SIZES

100 × 65 × 65 - 400 × 300 × 150 mm

Catalog No.

VK-A01 – VK-C34

O.D

Wall

Length

ADD TO INQUIRY

REQUEST A QUOTE

FROM COMPACT JUNCTIONS TO LARGER PULLING SPACE.

A conduit-box system has to accommodate more than one installation condition. A compact junction point, a multi-direction conduit connection and a larger conductor-pulling location can require very different box dimensions. This Chile-market range addresses those differences with nine square and rectangular configurations instead of forcing every installation into one standard box size.

The range begins with the compact 100 × 65 × 65 mm VK-A01 and extends to 400 × 300 × 150 mm models for installations requiring a larger footprint or additional depth. Buyers can select the box according to the required internal working space and conduit arrangement, with hot-dip galvanized as the standard finish shown for this series and pre-galvanized versions also available.

Nine dimensional configurations provide practical choices for compact junction points and larger conductor-pulling locations.
Square and rectangular formats allow the box footprint to be matched to the planned conduit layout.
Three available depth ranges include 65 mm, 100 mm and 150 mm configurations.
Hot-dip galvanized finish meets projects that specifically call for this surface-treatment option.
Pre-galvanized alternatives are also available when a different finish specification is required.

TYPICAL APPLICATIONS

Conduit Junction Points

Conductor Pulling Points

Conduit Branch Connections

Raceway Direction Changes

Chile-Market Conduit Systems

Specifications

Chile Market Conduit Boxes

VK-A01 · VK-A11 · VK-B12 · VK-B15 · VK-B22 · VK-B23 · VK-B34 · VK-C23 · VK-C34

Hot-Dip Galvanized Conduit Boxes – Chile Market

Standard

IEC61386

Material

Steel

Finish

Hot-dip galvanized

Click a row to add it to your inquiry.

Catalog No.	Dimensions (L × W × H)	Standard Steel Sheet Thickness	Standard Finish	Alternative Finish
VK-A01	100 × 65 × 65 mm	1.00 mm	Hot-dip Galvanized	Pre-galvanized Available
VK-A11	100 × 100 × 65 mm	1.00 mm	Hot-dip Galvanized	Pre-galvanized Available
VK-B12	200 × 100 × 100 mm	1.00 mm	Hot-dip Galvanized	Pre-galvanized Available
VK-B15	150 × 150 × 100 mm	1.00 mm	Hot-dip Galvanized	Pre-galvanized Available
VK-B22	200 × 200 × 100 mm	1.00 mm	Hot-dip Galvanized	Pre-galvanized Available
VK-B23	300 × 200 × 100 mm	1.20 mm	Hot-dip Galvanized	Pre-galvanized Available
VK-B34	400 × 300 × 100 mm	1.20 mm	Hot-dip Galvanized	Pre-galvanized Available
VK-C23	300 × 200 × 150 mm	1.20 mm	Hot-dip Galvanized	Pre-galvanized Available
VK-C34	400 × 300 × 150 mm	1.20 mm	Hot-dip Galvanized	Pre-galvanized Available

The values shown are standard steel sheet thicknesses and do not include the galvanized coating thickness. Other steel sheet thicknesses can be customized according to project requirements. Dimensions and thicknesses are subject to normal manufacturing tolerances.

Click any row to add that catalog number to your inquiry basket.

CUT SHEET (PDF)

Dimensions are nominal and subject to standard manufacturing tolerances.

Packaging quantities may vary by catalog number. Please confirm project-specific requirements before ordering.
