Home IMC/RMC Conduit System Rigid 90° Pull Elbow – Rigid-to-Rigid – Zinc Die Cast

Threaded Zinc Die-Cast Pull Elbow for RMC/IMC Raceway Turns

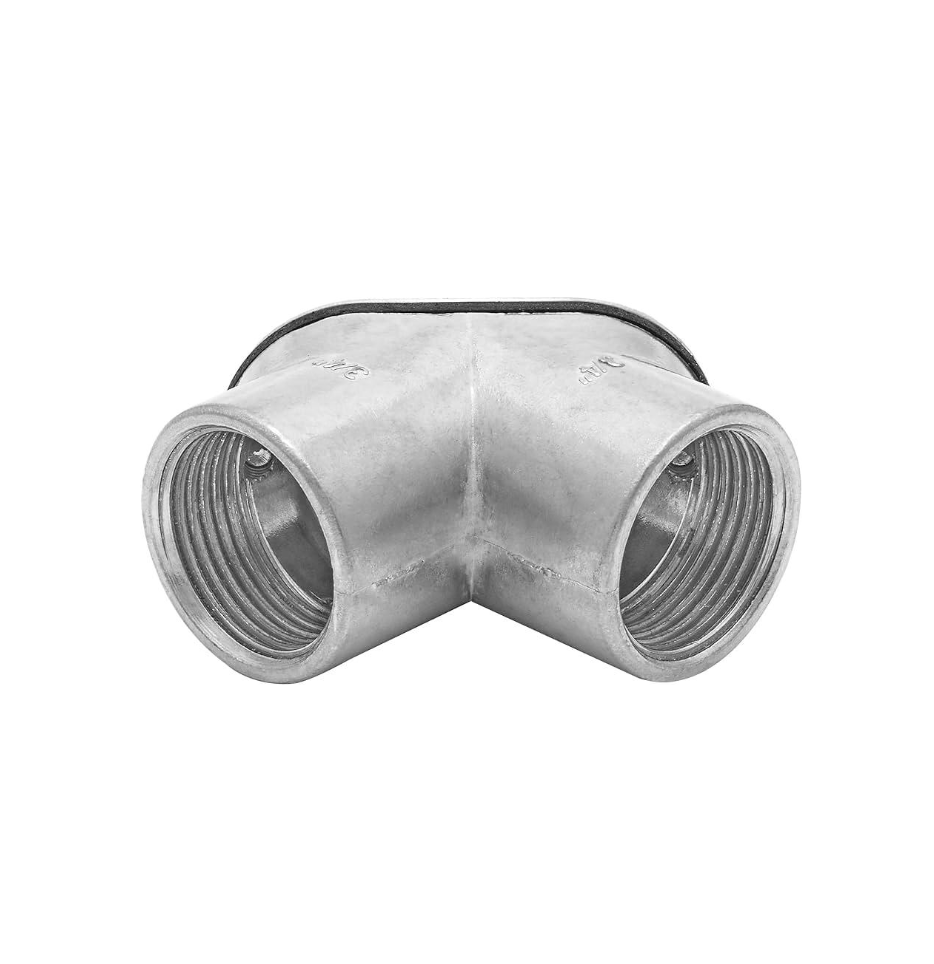

Rigid 90° Pull Elbow – Rigid-to-Rigid – Zinc Die Cast

Velkor RIGID-to-RIGID pull elbows create an accessible 90-degree transition between two threaded RMC or IMC runs. Threaded conduit interfaces on both ends distinguish this fitting from the box-entry version and make it suited to continuing the raceway through a close turn.

CONTINUE THE THREADED RACEWAY THROUGH A TIGHT TURN A conventional rigid elbow creates a smooth fixed bend; a pull elbow prioritizes compact routing and access. This RIGID-to-RIGID model places threaded conduit connections on both sides of the 90-degree body so the raceway can continue through the fitting without terminating at a box. Choose it when […]

MATERIAL

Zinc Die Cast

FINISH

Natural Zinc Alloy Finish

TRADE SIZES

1/2–2 in

Catalog No.

VK-351–VK-356

ADD TO INQUIRY

REQUEST A QUOTE

CONTINUE THE THREADED RACEWAY THROUGH A TIGHT TURN

A conventional rigid elbow creates a smooth fixed bend; a pull elbow prioritizes compact routing and access. This RIGID-to-RIGID model places threaded conduit connections on both sides of the 90-degree body so the raceway can continue through the fitting without terminating at a box.

Choose it when the layout needs an accessible close turn between two conduit runs. If the second side is an enclosure entry rather than conduit, use the RIGID-to-box pull elbow instead.

Two threaded conduit ends continue an RMC or IMC raceway through the turn.
Accessible conductor path supports pulling and service at the 90-degree change.
Compact turn geometry fits layouts that cannot accept a broad-radius elbow.
Six trade sizes cover threaded conduit runs from 1/2 inch through 2 inches.

TYPICAL APPLICATIONS

Threaded raceway turns

Equipment routes

Obstruction bypasses

Accessible bends

Specifications

RIGID-to-RIGID Pull Elbow

VK-351–VK-356

RIGID-to-RIGID 90° Pull Elbow

Material

Zinc Die Cast

Finish

Natural Zinc Alloy Finish

Click a row to add it to your inquiry.

Catalog No.	Trade Size
VK-351	1/2 in
VK-352	3/4 in
VK-353	1 in
VK-354	1-1/4 in
VK-355	1-1/2 in
VK-356	2 in

CUT SHEET (PDF)

Both conduit ends are threaded interfaces. Confirm thread form and engagement length against the current drawing before ordering.

Allow service clearance for the pull-access cover and confirm the supplied cover, gasket and screw configuration for the selected model.
