Home IEC 61386 Conduit System Zinc Die-Cast 90° Flexible Conduit Connector – Hexagon

Angled Entry for Flexible Conduit Running Alongside an Enclosure

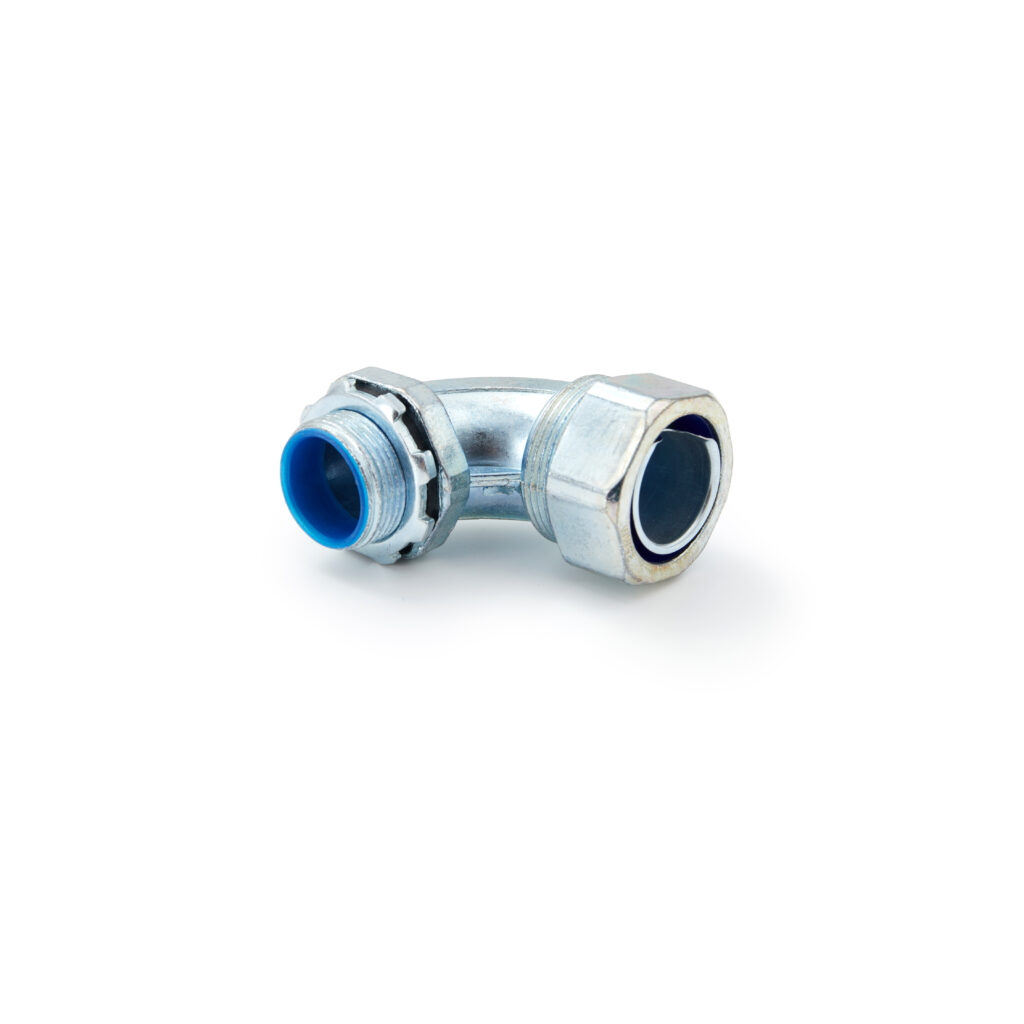

Zinc Die-Cast 90° Flexible Conduit Connector – Hexagon

Velkor 90° Flexible Conduit Connectors turn the conduit connection at a compatible enclosure entry. The angled arrangement helps direct the flexible run alongside a panel or machine, with zinc die-cast bodies in ten metric sizes from 16 to 110 mm. Complies with IEC 61386-1.

90° ENTRY WITH AN INSULATED THROAT Velkor 90° connectors bring flexible conduit into a box or cabinet from the side, avoiding a separate conduit bend directly outside the entry. The body is die-cast zinc alloy, and the insulated throat helps protect wire insulation from abrasion. A supplied locknut secures the connector to the enclosure. Sizes […]

MATERIAL

Zinc Die Cast

FINISH

Natural Zinc Alloy Finish

TRADE SIZES

16–110 mm

Catalog No.

IEC-490–IEC-499

ADD TO INQUIRY

REQUEST A QUOTE

90° ENTRY WITH AN INSULATED THROAT

Velkor 90° connectors bring flexible conduit into a box or cabinet from the side, avoiding a separate conduit bend directly outside the entry. The body is die-cast zinc alloy, and the insulated throat helps protect wire insulation from abrasion. A supplied locknut secures the connector to the enclosure. Sizes range from 16 to 110 mm.

TYPICAL APPLICATIONS

Commercial buildings

Industrial facilities

Data & power

Specifications

90° FLEX CONNECTOR

IEC-490–IEC-499

90° FLEXIBLE CONDUIT CONNECTOR — ZINC DIE CAST

Standard

IEC 61386-1

Material

Zinc Die Cast

Finish

Natural Zinc Alloy Finish

Click a row to add it to your inquiry.

Catalog No.	Metric Size	Geometry
IEC-490	16 mm	90°
IEC-491	20 mm	90°
IEC-492	25 mm	90°
IEC-493	32 mm	90°
IEC-494	40 mm	90°
IEC-495	50 mm	90°
IEC-496	63 mm	90°
IEC-497	75 mm	90°
IEC-498	90 mm	90°
IEC-499	110 mm	90°

CUT SHEET (PDF)

Supplied with a locknut and an insulated throat to help protect wire insulation at the entry.

For a straight entry in the same size range, see IEC-470–IEC-479.
