Home IEC 61386 Conduit System Zinc Die-Cast Straight Flexible Conduit Connector

Direct Flexible-Conduit Entry into Boxes, Cabinets and Equipment

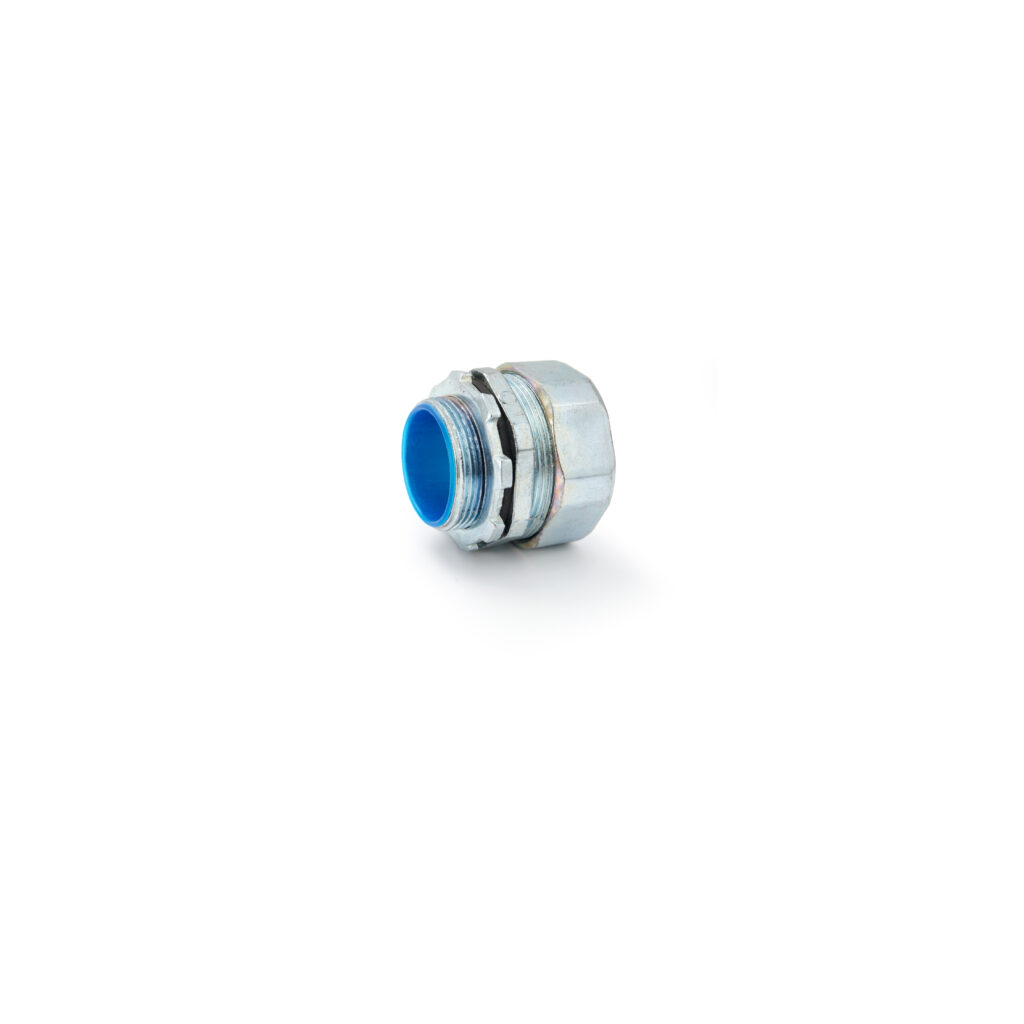

Zinc Die-Cast Straight Flexible Conduit Connector

Velkor Straight Flexible Conduit Connectors terminate a flexible conduit at a compatible box, cabinet or equipment enclosure. The straight geometry suits a conduit approach aligned with the entry, and the zinc die-cast range covers ten metric sizes from 16 to 110 mm. Complies with IEC 61386-1.

STRAIGHT ENTRY FOR FLEXIBLE METAL CONDUIT Velkor straight connectors secure flexible metal conduit at boxes, cabinets and equipment enclosures. Die casting forms the zinc-alloy body close to its finished shape, reducing the machining needed. A supplied locknut secures the connector at the enclosure entry. The range covers ten metric sizes from 16 to 110 mm. […]

MATERIAL

Zinc Die Cast

FINISH

Natural Zinc Alloy Finish

TRADE SIZES

16–110 mm

Catalog No.

IEC-470–IEC-479

ADD TO INQUIRY

REQUEST A QUOTE

STRAIGHT ENTRY FOR FLEXIBLE METAL CONDUIT

Velkor straight connectors secure flexible metal conduit at boxes, cabinets and equipment enclosures. Die casting forms the zinc-alloy body close to its finished shape, reducing the machining needed. A supplied locknut secures the connector at the enclosure entry. The range covers ten metric sizes from 16 to 110 mm.

TYPICAL APPLICATIONS

Commercial buildings

Industrial facilities

Data & power

Specifications

STRAIGHT FLEX CONNECTOR

IEC-470–IEC-479

STRAIGHT FLEXIBLE CONDUIT CONNECTOR — ZINC DIE CAST

Standard

IEC 61386-1

Material

Zinc Die Cast

Finish

Natural Zinc Alloy Finish

Click a row to add it to your inquiry.

Catalog No.	Metric Size	Geometry
IEC-470	16 mm	Straight
IEC-471	20 mm	Straight
IEC-472	25 mm	Straight
IEC-473	32 mm	Straight
IEC-474	40 mm	Straight
IEC-475	50 mm	Straight
IEC-476	63 mm	Straight
IEC-477	75 mm	Straight
IEC-478	90 mm	Straight
IEC-479	110 mm	Straight

CUT SHEET (PDF)

Supplied with a locknut for securing the connector to the enclosure.

For a 90° entry in the same size range, see IEC-490–IEC-499.

Modern Standards for Traditional Products

PRODUCT MATCHING

Source electrical conduits and matching fittings together, with sizes and connection types checked for your order.

CLEAR SPECIFICATIONS

Define material, wall thickness, finish and applicable standards before confirming the order.

PRE-SHIPMENT CHECKS

Check product dimensions, finish, quantities and packing against the agreed order requirements.

ORDER TRACKING

Follow production, inspection and shipment milestones through Velkor’s order tracking system.

CHILE MARKET EXPERIENCE

Conduit systems compliant with applicable IEC 61386 requirements, with support for Chilean SEC certification applications through product specifications and technical documentation.

Manufacturing Center of Excellence

Contact & Inquiry

Let's Make Sourcing Simple.

Send us your specifications, drawings, or project requirements. We’ll help you find the right fit and get things moving. We respond within 8 hours.

Info@velkor.co

China: +86 158-6717-8588

ADDRESS

Puyang Industrial Zone, Hangzhou, Zhejiang, China

NAME COMPANY EMAIL PHONE PRODUCT OF INTEREST MESSAGE

Send Inquiry
