VELKOR STEEL JUNCTION BOXES & COVERS

4-11/16-Inch Square Box Covers

Velkor 4-11/16-Inch Square Box Covers include blank, knockout, single-device and double-device formats.

4-11/16-Inch Square Box Covers Galvanized steel device rings are available flat or raised by 1/4, 1/2 or 3/4 inch. Closure styles include blank and 1/2-inch knockout covers. Device options serve one or two device positions. Three raised heights complement the flat device-ring versions. TYPICAL APPLICATIONS Wiring connections Device mounting Modern Standards for Traditional Products Verified […]

MATERIAL

Steel

FINISH

Galvanized

Catalog No.

72C Series

ADD TO INQUIRY

REQUEST A QUOTE

4-11/16-Inch Square Box Covers

Galvanized steel device rings are available flat or raised by 1/4, 1/2 or 3/4 inch.

TYPICAL APPLICATIONS

Wiring connections

Device mounting

Specifications

4-11/16-Inch Square Box Covers

72C Series

4-11/16-Inch Square Box Covers

Material

Steel

Finish

Galvanized

Click a row to add it to your inquiry.

Catalog No.	Description	RAISED

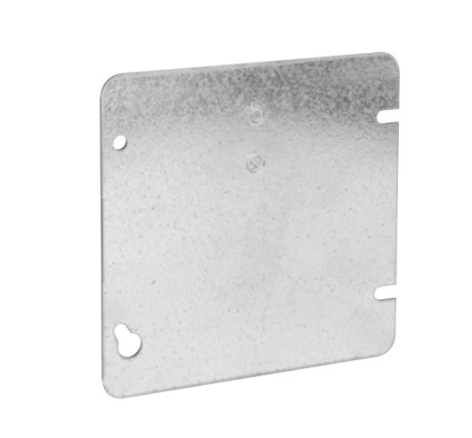

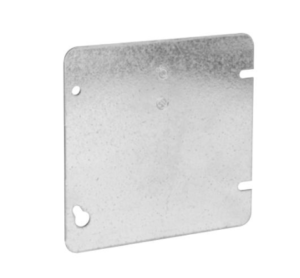

72C1	Flat, Blank	-

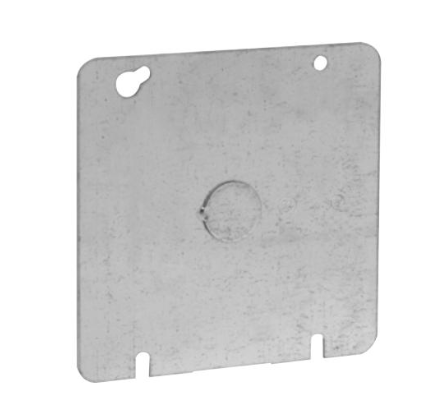

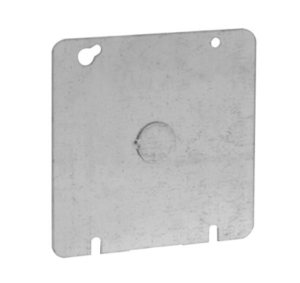

72C6	Flat, 1/2" K.O.	-
72C0	Flat, for one device	-

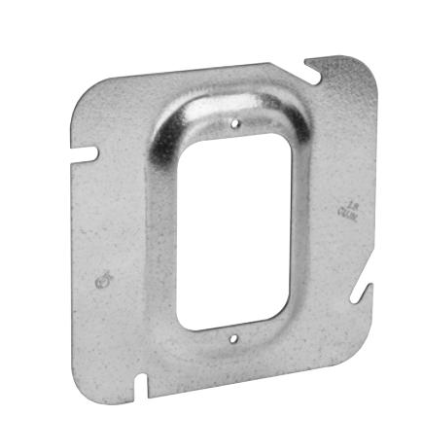

72C62	For one device	1/4"
72C13	For one device	1/2"
72C14	For one device	3/4"
72C00	Flat. for two device	-
72C20	For two device	1/4"

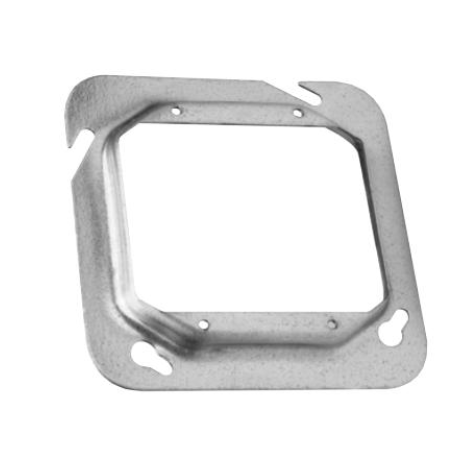

72C17	For two device	1/2"
72C18	For two device	3/4"

CUT SHEET (PDF)

Outside diameter tolerances: ±.005 in (.13 mm) for trade sizes 1/2–2" (16–53 mm); ±.010 in (.25 mm) for 2-1/2" (63 mm); ±.015 in (.38 mm) for 3" (78 mm); ±.020 in (.51 mm) for 3-1/2" and 4" (91–103 mm).

Raised height describes the device-ring projection above the cover base.
