VELKOR WEATHERPROOF BOXES & COVERS

Weatherproof Box Extensions

Velkor Weatherproof Box Extensions add depth to matching single-gang, double-gang and 4-inch round boxes.

Weatherproof Box Extensions Options include plain extension frames and bodies with four or six conduit entries. Three box formats cover single-gang, double-gang and round assemblies. Entry options include zero, four or six openings. Depth choices range from 1 inch to 1.58 inches. TYPICAL APPLICATIONS Box extensions Raceway junctions Modern Standards for Traditional Products Verified Product […]

MATERIAL

Copper-free die-cast aluminum

TRADE SIZES

/, 1/2", 3/4"

Catalog No.

EX1, EXR-2, EXF50-4, EXF75-4, EXF50-6, EXF75-6, EXR50-4, EXR75-4

ADD TO INQUIRY

REQUEST A QUOTE

Weatherproof Box Extensions

Options include plain extension frames and bodies with four or six conduit entries.

TYPICAL APPLICATIONS

Box extensions

Raceway junctions

Specifications

Weatherproof Box Extensions

EX1, EXR-2, EXF50-4, EXF75-4, EXF50-6, EXF75-6, EXR50-4, EXR75-4

Weatherproof Box Extensions

Material

Copper-free die-cast aluminum

Click a row to add it to your inquiry.

Product	Catalog No.	Entry Size	Depth	Outlets

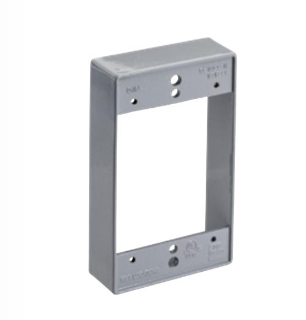

SINGLE GANG EXTENSION	EX1	/	1"	0

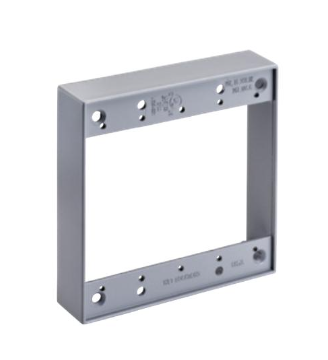

DOUBLE GANG EXTENSION	EXR-2	/	1"	0

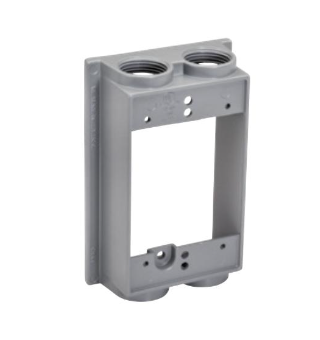

SINGLE GANG EXTENSION 4 HOLE	EXF50-4	1/2"	1.575"	4
SINGLE GANG EXTENSION 4 HOLE	EXF75-4	3/4"	1.575"	4

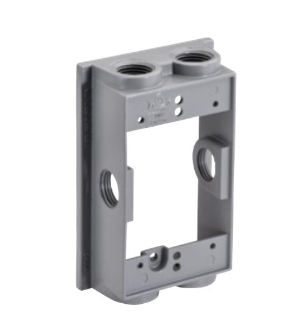

SINGLE GANG EXTENSION 6 HOLE	EXF50-6	1/2"	1.575"	6
SINGLE GANG EXTENSION 6 HOLE	EXF75-6	3/4"	1.575"	6

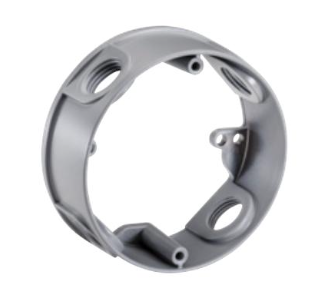

4" ROUND EXTENSION 4 HOLES	EXR50-4	1/2"	1.58"	4
4" ROUND EXTENSION 4 HOLES	EXR75-4	3/4"	1.58"	4

Entry size and depth are model-specific.

CUT SHEET (PDF)

Entry size and depth are model-specific.

Plain EX1 and EXR-2 frames add 1 inch of depth without additional conduit entries.
