VELKOR STEEL JUNCTION BOXES & COVERS

4-11/16-Inch Square Box Extensions

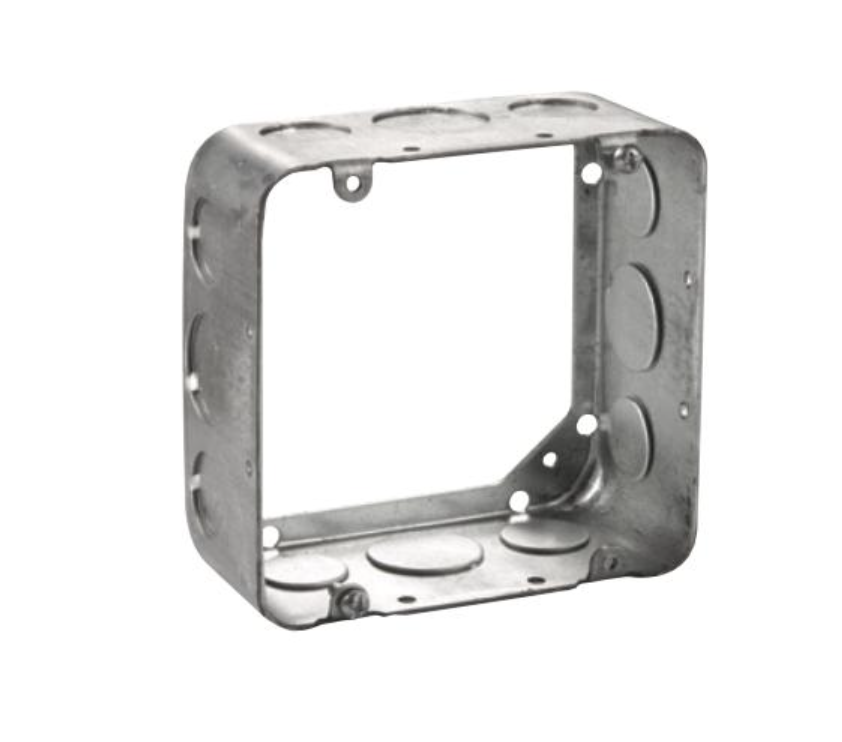

Velkor 4-11/16-Inch Square Box Extensions add 2-1/8 inches of depth to matching boxes.

4-11/16-Inch Square Box Extensions Two galvanized steel models offer mixed 1/2-inch and 3/4-inch openings or 1-inch side openings. Two entry patterns accommodate different conduit sizes. 42-cubic-inch capacity is listed for both models. TYPICAL APPLICATIONS Box extensions Raceway junctions Modern Standards for Traditional Products Verified Product verified against Velkor quality standards before it ships. PRECISE Precision […]

MATERIAL

Steel

FINISH

Galvanized

Catalog No.

73151-1/2&3/4, 73151-1

ADD TO INQUIRY

REQUEST A QUOTE

4-11/16-Inch Square Box Extensions

Two galvanized steel models offer mixed 1/2-inch and 3/4-inch openings or 1-inch side openings.

TYPICAL APPLICATIONS

Box extensions

Raceway junctions

Specifications

4-11/16-Inch Square Box Extensions

73151-1/2&3/4, 73151-1

4-11/16-Inch Square Box Extensions

Material

Steel

Finish

Galvanized

Click a row to add it to your inquiry.

Catalog No.	KNOCKOUTS - SIDES	Depth	Capacity
73151-1/2&3/4	8x1/2"+4x3/4"	2-1/8"	42 cu. in.
73151-1	8x1"	2-1/8"	42 cu. in.

CUT SHEET (PDF)

Outside diameter tolerances: ±.005 in (.13 mm) for trade sizes 1/2–2" (16–53 mm); ±.010 in (.25 mm) for 2-1/2" (63 mm); ±.015 in (.38 mm) for 3" (78 mm); ±.020 in (.51 mm) for 3-1/2" and 4" (91–103 mm).

These extensions are 2-1/8 inches deep.
