VELKOR STEEL JUNCTION BOXES & COVERS

4-Inch Square Box Extensions

Velkor 4-Inch Square Box Extensions increase the depth of a matching square box.

4-Inch Square Box Extensions Galvanized steel models are offered in 1-1/2-inch and 2-1/8-inch depths with side knockout selections. Open-frame construction extends the box above its existing rim. Two depths provide 21 or 30.3 cubic inches of capacity. TYPICAL APPLICATIONS Box extensions Raceway junctions Modern Standards for Traditional Products Verified Product verified against Velkor quality standards […]

MATERIAL

Steel

FINISH

Galvanized

Catalog No.

53151-1/2, 53151-3/4, 53151-1/2&3/4, 53171-1/2, 53171-3/4, 53171-1/2&3/4, 53171-1

ADD TO INQUIRY

REQUEST A QUOTE

4-Inch Square Box Extensions

Galvanized steel models are offered in 1-1/2-inch and 2-1/8-inch depths with side knockout selections.

TYPICAL APPLICATIONS

Box extensions

Raceway junctions

Specifications

4-Inch Square Box Extensions

53151-1/2, 53151-3/4, 53151-1/2&3/4, 53171-1/2, 53171-3/4, 53171-1/2&3/4, 53171-1

4-Inch Square Box Extensions

Material

Steel

Finish

Galvanized

Click a row to add it to your inquiry.

Catalog No.	KNOCKOUTS - SIDES	Depth	Capacity

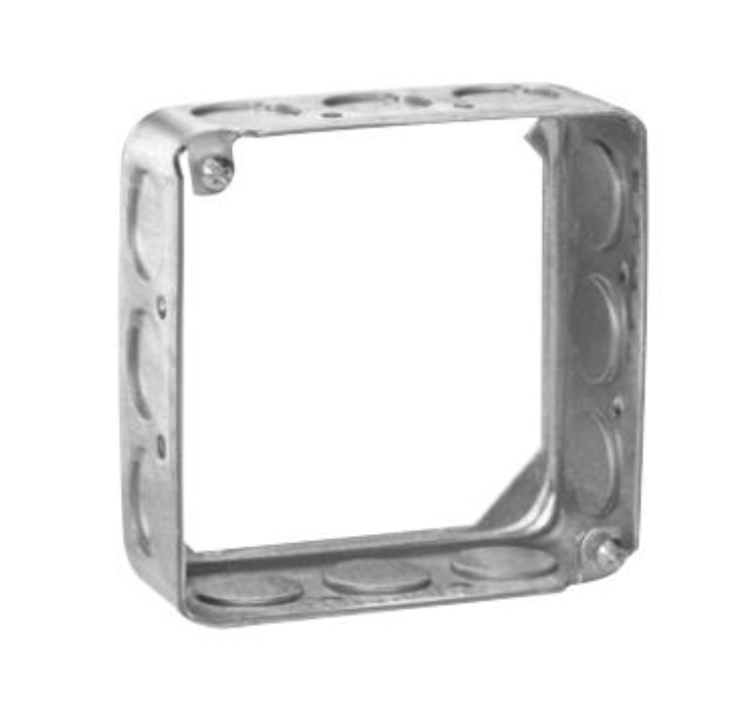

53151-1/2	12x1/2"	1-1/2"	21 cu. in.
53151-3/4	8x3/4"	1-1/2"	21 cu. in.
53151-1/2&3/4	8x1/2"+4x3/4"	1-1/2"	21 cu. in.

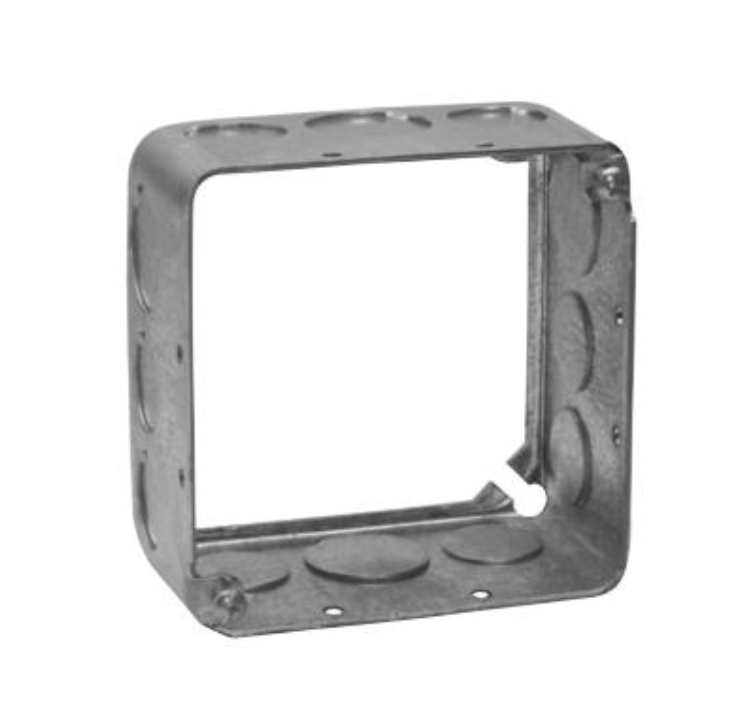

53171-1/2	12x1/2"	2-1/8"	30.3 cu. in.
53171-3/4	8x3/4"	2-1/8"	30.3 cu. in.
53171-1/2&3/4	8x1/2"+4x3/4"	2-1/8"	30.3 cu. in.
53171-1	8x1"	2-1/8"	30.3 cu. in.

CUT SHEET (PDF)

Outside diameter tolerances: ±.005 in (.13 mm) for trade sizes 1/2–2" (16–53 mm); ±.010 in (.25 mm) for 2-1/2" (63 mm); ±.015 in (.38 mm) for 3" (78 mm); ±.020 in (.51 mm) for 3-1/2" and 4" (91–103 mm).

No bottom knockout applies to an open extension.
