VELKOR STEEL JUNCTION BOXES & COVERS

4 x 2-Inch Steel Handy Boxes

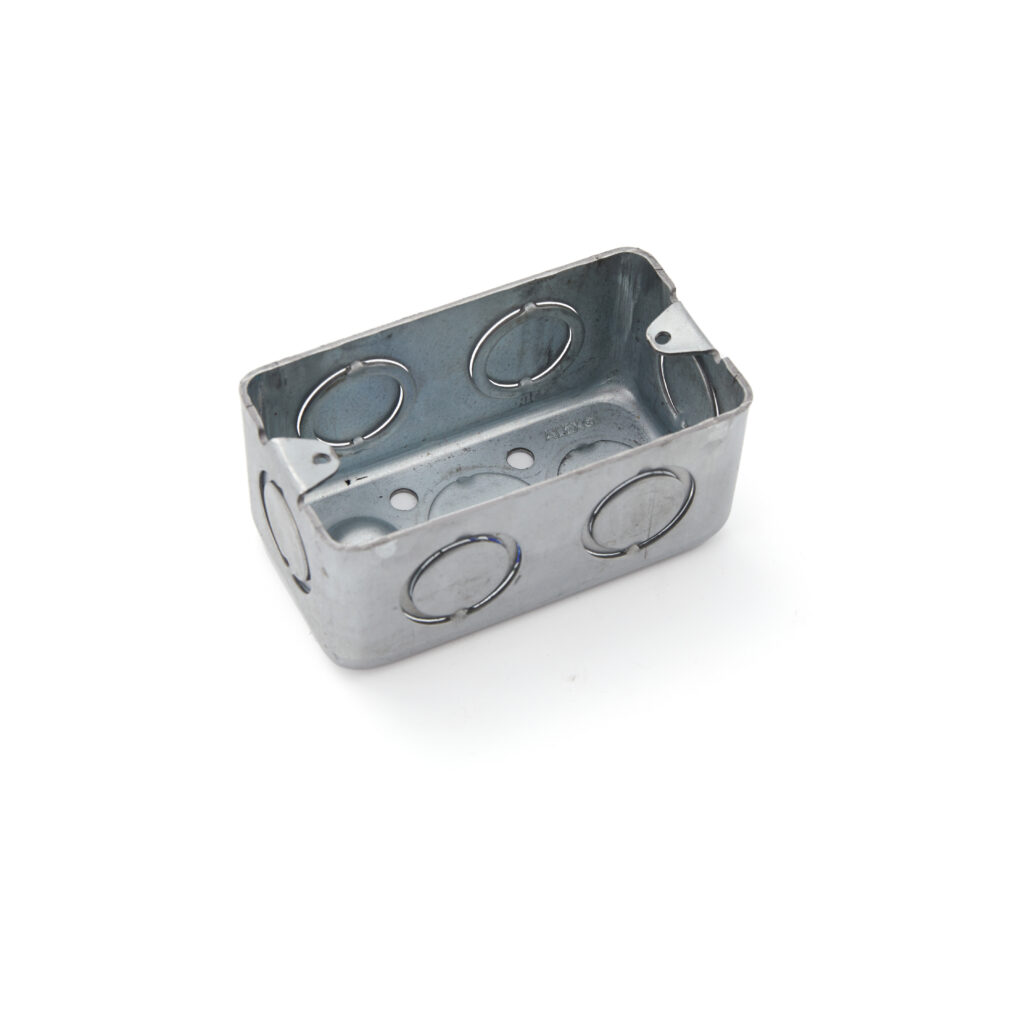

Velkor 4 x 2-Inch Steel Handy Boxes house a device and its wiring connections in a rectangular galvanized steel body.

4 x 2-Inch Steel Handy Boxes Three depth ranges offer different capacities and side, end and bottom knockout patterns. Three depths include 1-1/2, 1-7/8 and 2-1/8 inches. Capacities are 10.3, 13 and 14.5 cubic inches respectively. Grounding variants are listed in the deeper ranges. TYPICAL APPLICATIONS Wiring connections Device mounting Modern Standards for Traditional Products […]

MATERIAL

Steel

FINISH

Galvanized

Catalog No.

58351 / 58361 / 58371 Series

ADD TO INQUIRY

REQUEST A QUOTE

4 x 2-Inch Steel Handy Boxes

Three depth ranges offer different capacities and side, end and bottom knockout patterns.

TYPICAL APPLICATIONS

Wiring connections

Device mounting

Specifications

1-1/2-Inch Deep Boxes

58351 Series

1-7/8-Inch Deep Boxes

58361 Series

2-1/8-Inch Deep Boxes

58371 Series

1-1/2-Inch Deep Boxes

Material

Steel

Finish

Galvanized

Click a row to add it to your inquiry.

Catalog No.	KNOCKOUTS - SIDES	KNOCKOUTS - END	KNOCKOUTS - BOTTOM	Depth	Capacity
58351-1/2	6x1/2"	2x1/2"	3x1/2"	1-1/2"	10.3 cu. in.
58351-3/4	4x3/4"	2x1/2"	2x3/4"	1-1/2"	10.3 cu. in.
58351-1/2&3/4	4x1/2"+2x3/4"	2x1/2"	2x1/2"+1x3/4"	1-1/2"	10.3 cu. in.

CUT SHEET (PDF)

1-7/8-Inch Deep Boxes

Material

Steel

Finish

Galvanized

Click a row to add it to your inquiry.

Catalog No.	KNOCKOUTS - SIDES	KNOCKOUTS - END	KNOCKOUTS - BOTTOM	Depth	Capacity
58361-1/2	6x1/2"	2x1/2"	3x1/2"	1-7/8"	13 cu. in.
58361-3/4	4x3/4"	2x3/4"	2x3/4"	1-7/8"	13 cu. in.
58361-1/2&3/4	4x1/2"+2x3/4"	2x3/4"	2x1/2"+1x3/4"	1-7/8"	13 cu. in.
58361-CKO1	4x1/2"+2xCKO	2xCKO	2x1/2"+1x3/4"	1-7/8"	13 cu. in.
58361-CKO2	4xCKO	2xCKO	2xCKO	1-7/8"	13 cu. in.
58361-1/2P	6x1/2"	2x1/2"	2x1/2"	1-7/8"	13 cu. in.
58361-3/4P	4x3/4"	2x3/4"	1x3/4"	1-7/8"	13 cu. in.
58361-1/2&3/4P	4x1/2"+2x3/4"	2x3/4"	1x1/2"+1x3/4"	1-7/8"	13 cu. in.
58361-CKO1P	4x1/2"+2xCKO	2xCKO	1x1/2"+1xCKO	1-7/8"	13 cu. in.
58361-CKO2P	4xCKO	2xCKO	1x1/2"+1xCKO	1-7/8"	13 cu. in.

CUT SHEET (PDF)

2-1/8-Inch Deep Boxes

Material

Steel

Finish

Galvanized

Click a row to add it to your inquiry.

Catalog No.	KNOCKOUTS - SIDES	KNOCKOUTS - END	KNOCKOUTS - BOTTOM	Depth	Capacity
58371-1/2	6x1/2"	2x1/2"	3x1/2"	2-1/8"	14.5 cu. in.
58371-3/4	4x3/4"	2x3/4"	2x3/4"	2-1/8"	14.5 cu. in.
58371-1/2&3/4	4x1/2"+2x3/4"	2x3/4"	2x1/2"+1x3/4"	2-1/8"	14.5 cu. in.
58371-1	4x1"	2x1"	2x1/2"+1x3/4"	2-1/8"	14.5 cu. in.
58371-CKO	4xCKO	2xCKO	2xCKO	2-1/8"	14.5 cu. in.
58371-1/2P	6x1/2"	2x1/2"	2x1/2"	2-1/8"	14.5 cu. in.
58371-3/4P	4x3/4"	2x3/4"	1x3/4"	2-1/8"	14.5 cu. in.
58371-1/2&3/4P	4x1/2"+2x3/4"	2x3/4"	1x1/2"+1x3/4"	2-1/8"	14.5 cu. in.
58371-1P	4x1"	2x1"	1x1/2"+1x3/4"	2-1/8"	14.5 cu. in.
58371-CKOP	4xCKO	2xCKO	1xCKO	2-1/8"	14.5 cu. in.

CUT SHEET (PDF)

Outside diameter tolerances: ±.005 in (.13 mm) for trade sizes 1/2–2" (16–53 mm); ±.010 in (.25 mm) for 2-1/2" (63 mm); ±.015 in (.38 mm) for 3" (78 mm); ±.020 in (.51 mm) for 3-1/2" and 4" (91–103 mm).

Box depth and cover opening are independent selections.
