VELKOR STEEL JUNCTION BOXES & COVERS

BS-Pattern Switch and Socket Boxes

Velkor BS-Pattern Switch and Socket Boxes provide metal mounting boxes in 3 x 3-inch and 3 x 6-inch formats.

BS-Pattern Switch and Socket Boxes The range shows closed-back and open-frame forms, with depths of 16, 20, 25, 35 and 47 mm. Two face formats serve different device arrangements. Five depths accommodate different wall and wiring layouts. Box and frame forms provide different mounting structures. TYPICAL APPLICATIONS Switch mounting Socket mounting Modern Standards for Traditional […]

MATERIAL

Metal

FINISH

Galvanized

ADD TO INQUIRY

REQUEST A QUOTE

BS-Pattern Switch and Socket Boxes

The range shows closed-back and open-frame forms, with depths of 16, 20, 25, 35 and 47 mm.

TYPICAL APPLICATIONS

Switch mounting

Socket mounting

Specifications

BS-Pattern Switch and Socket Boxes

BS-Pattern Switch and Socket Boxes

Material

Metal

Click a row to add it to your inquiry.

Format	Depth options (mm)	Form

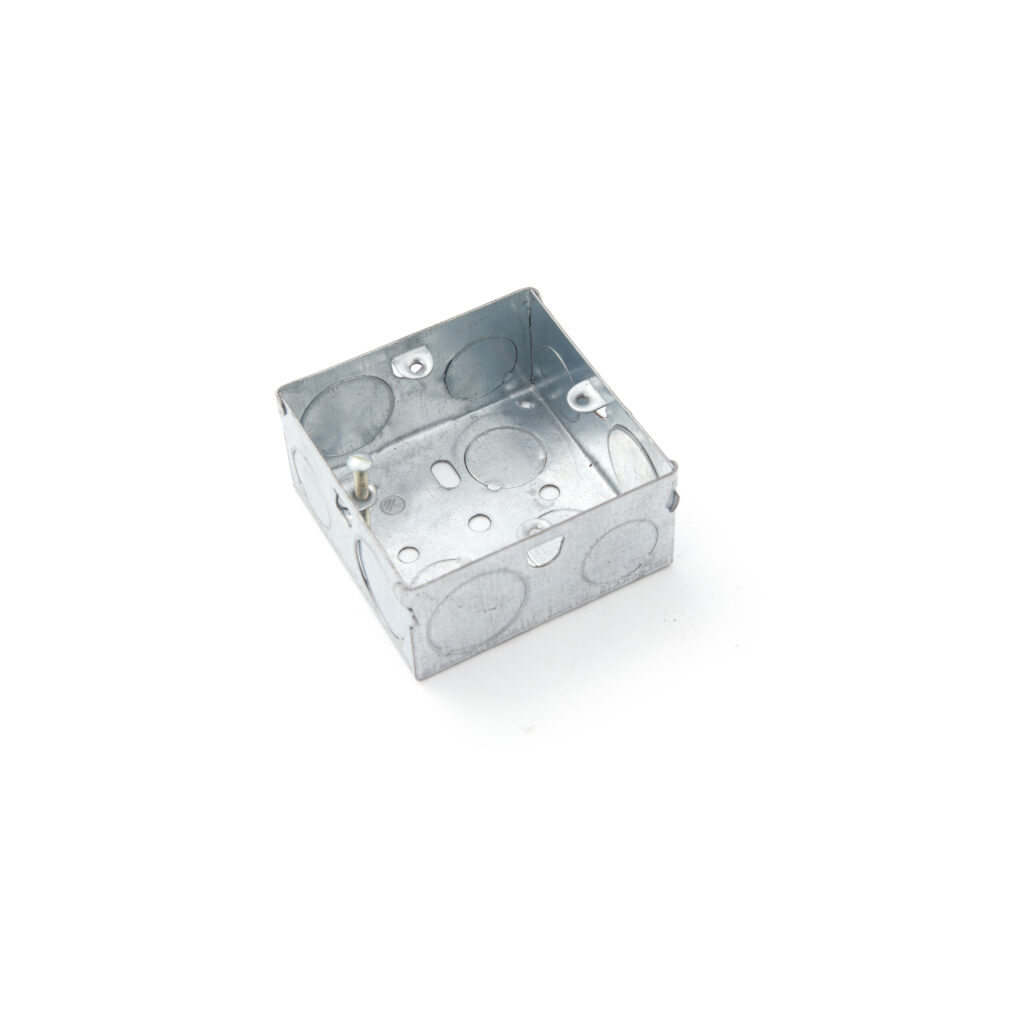

3 x 3 in	16 / 20 / 25 / 35 / 47	Closed-back / open-frame

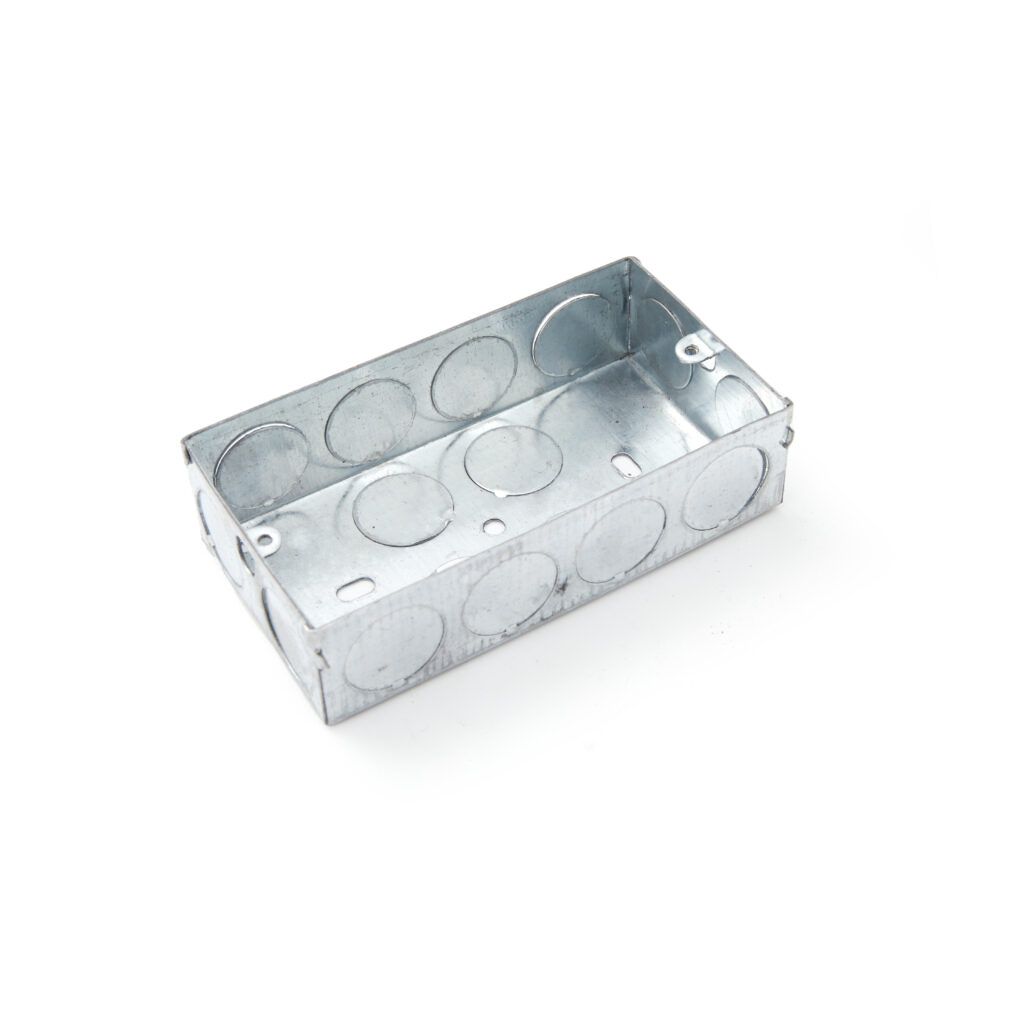

3 x 6 in	16 / 20 / 25 / 35 / 47	Closed-back / open-frame

Nominal face dimensions are in inches; depths are in mm.

CUT SHEET (PDF)

Nominal face dimensions are in inches; depths are in mm.

The box and open-frame versions are distinct products even when their face size is the same.
