BS – Switch and Socket Box – Steel

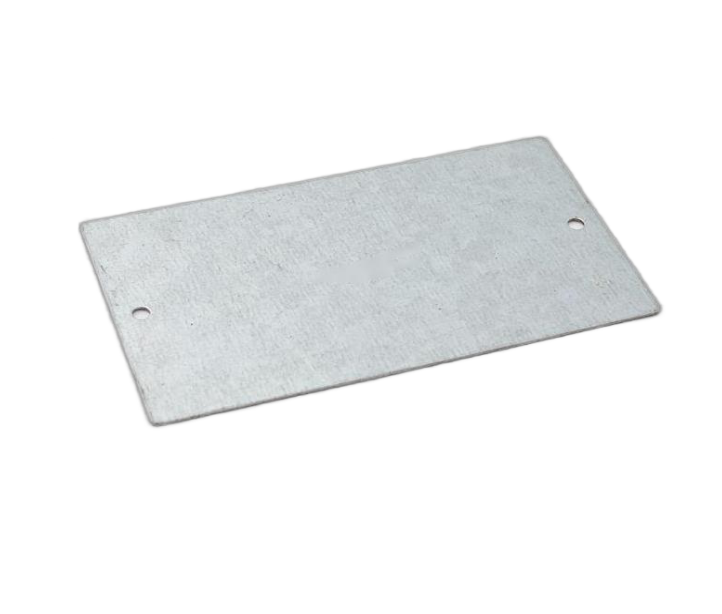

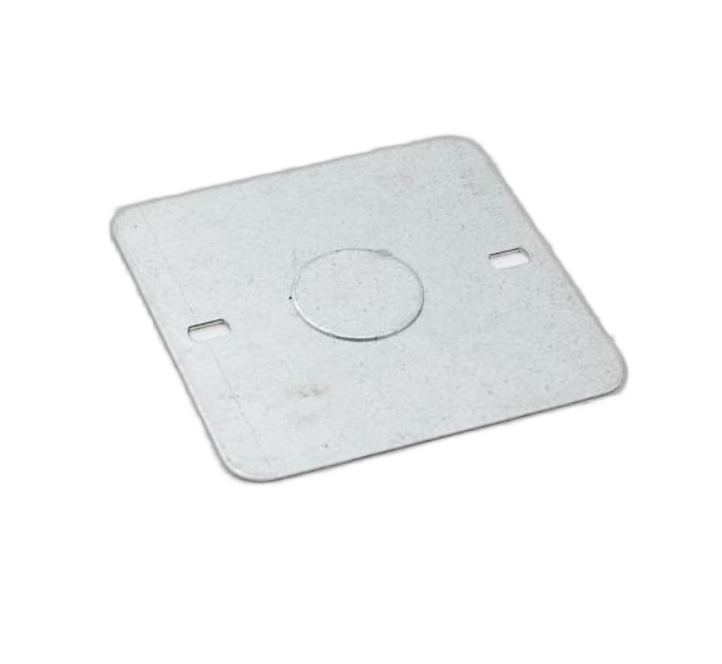

Velkor Metal Box Covers close matching 3 x 3-inch and 3 x 6-inch box formats.

BS-Pattern Metal Box Covers Blank, 20 mm knockout and 25 mm knockout versions are shown. Two cover sizes match the two rectangular box formats. Three opening styles include blank and metric knockout selections. TYPICAL APPLICATIONS Box closure Conduit entries Modern Standards for Traditional Products Verified Product verified against Velkor quality standards before it ships. PRECISE […]

MATERIAL

Metal

ADD TO INQUIRY

REQUEST A QUOTE

BS-Pattern Metal Box Covers

Blank, 20 mm knockout and 25 mm knockout versions are shown.

TYPICAL APPLICATIONS

Box closure

Conduit entries

Specifications

BS-Pattern Metal Box Covers

BS-Pattern Metal Box Covers

Material

Metal

Click a row to add it to your inquiry.

Format	Opening options
3 x 3 in	Blank / 20 mm KO / 25 mm KO
3 x 6 in	Blank / 20 mm KO / 25 mm KO

CUT SHEET (PDF)

Outside diameter tolerances: ±.005 in (.13 mm) for trade sizes 1/2–2" (16–53 mm); ±.010 in (.25 mm) for 2-1/2" (63 mm); ±.015 in (.38 mm) for 3" (78 mm); ±.020 in (.51 mm) for 3-1/2" and 4" (91–103 mm).

The 20 mm and 25 mm measurements identify knockout options, not box depth.
