Home Electrical Boxes & Conduit Bodies 4 x 2-Inch Handy Box Extensions

VELKOR STEEL JUNCTION BOXES & COVERS

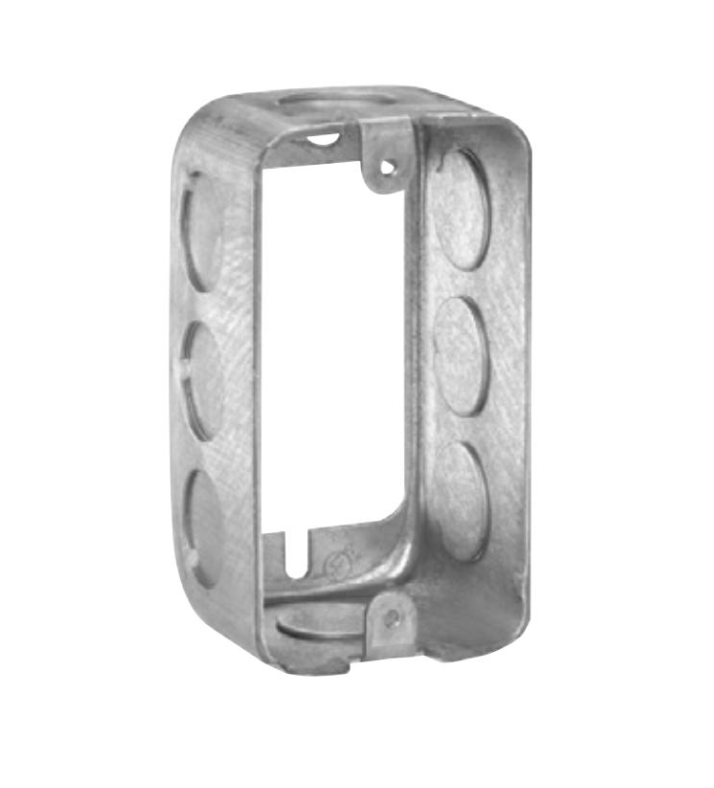

4 x 2-Inch Handy Box Extensions

Velkor Handy Box Extensions add 1-7/8 inches of depth to matching 4 x 2-inch boxes.

4 x 2-Inch Handy Box Extensions Galvanized steel frames are available with three combinations of side and end knockouts. Rectangular frame follows the handy-box format. 12.8-cubic-inch capacity applies to the three listed extensions. TYPICAL APPLICATIONS Box extensions Raceway junctions Modern Standards for Traditional Products Verified Product verified against Velkor quality standards before it ships. PRECISE […]

MATERIAL

Steel

FINISH

Galvanized

Catalog No.

59361-1/2, 59361-3/4, 59361-1/2&3/4

ADD TO INQUIRY

REQUEST A QUOTE

4 x 2-Inch Handy Box Extensions

Galvanized steel frames are available with three combinations of side and end knockouts.

TYPICAL APPLICATIONS

Box extensions

Raceway junctions

Specifications

4 x 2-Inch Handy Box Extensions

59361-1/2, 59361-3/4, 59361-1/2&3/4

4 x 2-Inch Handy Box Extensions

Material

Steel

Finish

Galvanized

Click a row to add it to your inquiry.

Catalog No.	KNOCKOUTS - SIDES	KNOCKOUTS - END	Depth	Capacity
59361-1/2	6x1/2"	2x1/2"	1-7/8"	12.8 cu. in.
59361-3/4	4x3/4"	2x3/4"	1-7/8"	12.8 cu. in.
59361-1/2&3/4	4x1/2"+2x3/4"	2x3/4"	1-7/8"	12.8 cu. in.

CUT SHEET (PDF)

Outside diameter tolerances: ±.005 in (.13 mm) for trade sizes 1/2–2" (16–53 mm); ±.010 in (.25 mm) for 2-1/2" (63 mm); ±.015 in (.38 mm) for 3" (78 mm); ±.020 in (.51 mm) for 3-1/2" and 4" (91–103 mm).

Extension depth: 1-7/8 in.
