VELKOR STEEL JUNCTION BOXES & COVERS

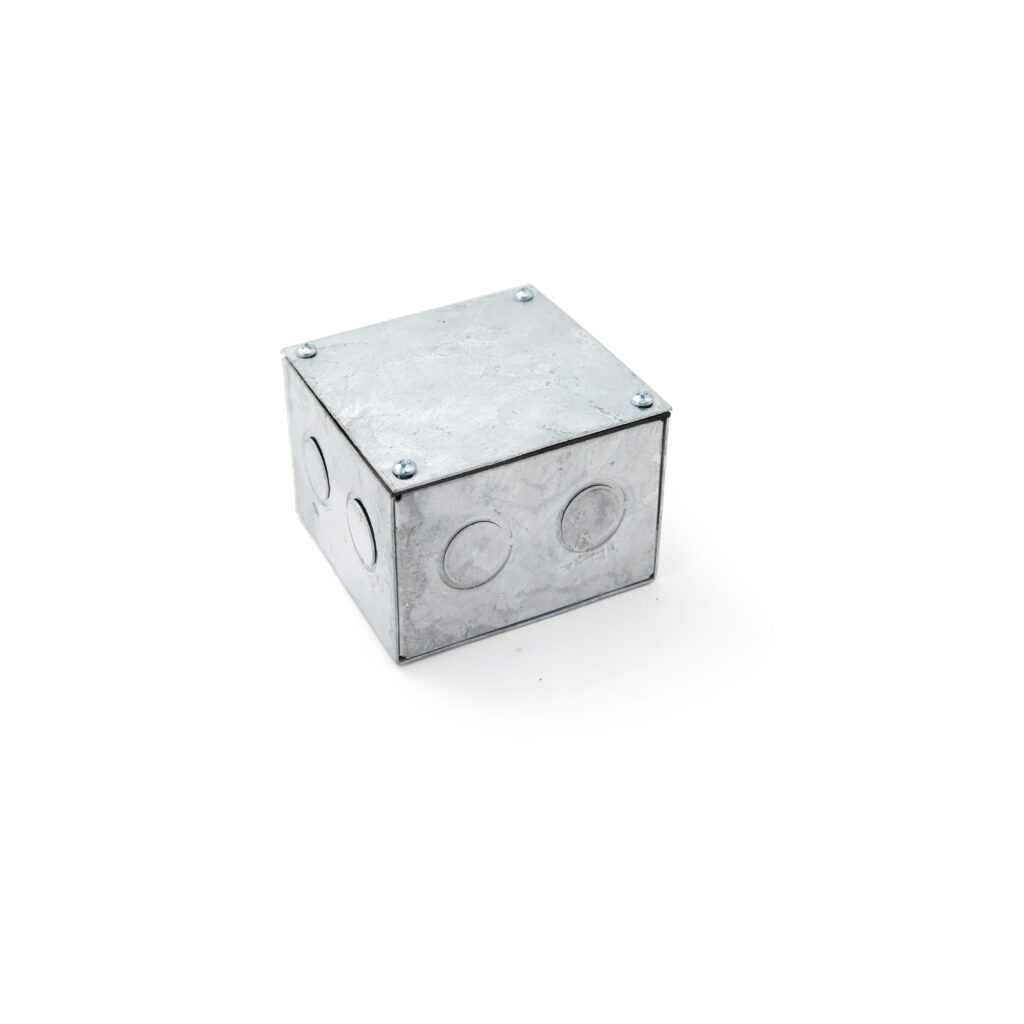

Hot-Dip Galvanized Junction Boxes

Velkor Hot-Dip Galvanized Junction Boxes enclose electrical wiring connections in steel bodies for the Chile-market range.

Hot-Dip Galvanized Junction Boxes Nine sizes cover compact junction points and larger wiring layouts, with standard steel-sheet thicknesses of 1.00 or 1.20 mm. Nine dimensions range from 100 x 65 x 65 mm to 400 x 300 x 150 mm. Hot-dip galvanized finish is standard. Alternative supply includes pre-galvanized finish and other project thicknesses. TYPICAL […]

MATERIAL

Steel

FINISH

Hot-dip galvanized; pre-galvanized option

Catalog No.

VK-A01, VK-A11, VK-B12, VK-B15, VK-B22, VK-B23, VK-B34, VK-C23, VK-C34

ADD TO INQUIRY

REQUEST A QUOTE

Hot-Dip Galvanized Junction Boxes

Nine sizes cover compact junction points and larger wiring layouts, with standard steel-sheet thicknesses of 1.00 or 1.20 mm.

TYPICAL APPLICATIONS

Conduit junctions

Wiring connections

Specifications

Hot-Dip Galvanized Junction Boxes

VK-A01, VK-A11, VK-B12, VK-B15, VK-B22, VK-B23, VK-B34, VK-C23, VK-C34

Hot-Dip Galvanized Junction Boxes

Material

Steel

Finish

Hot-dip galvanized; pre-galvanized option

Click a row to add it to your inquiry.

Catalog No.	SIZE (mm)	Standard steel thickness (mm)
VK-A01	100 x 65 x 65	1.00
VK-A11	100 x 100 x 65	1.00
VK-B12	200 x 100 x 100	1.00
VK-B15	150 x 150 x 100	1.00
VK-B22	200 x 200 x 100	1.00
VK-B23	300 x 200 x 100	1.20
VK-B34	400 x 300 x 100	1.20
VK-C23	300 x 200 x 150	1.20
VK-C34	400 x 300 x 150	1.20

Dimensions are L x W x H in mm.

CUT SHEET (PDF)

Dimensions are L x W x H in mm.

VK-B15 measures 150 x 150 x 100 mm.
