VELKOR ENCLOSURES & DISTRIBUTION BOXES

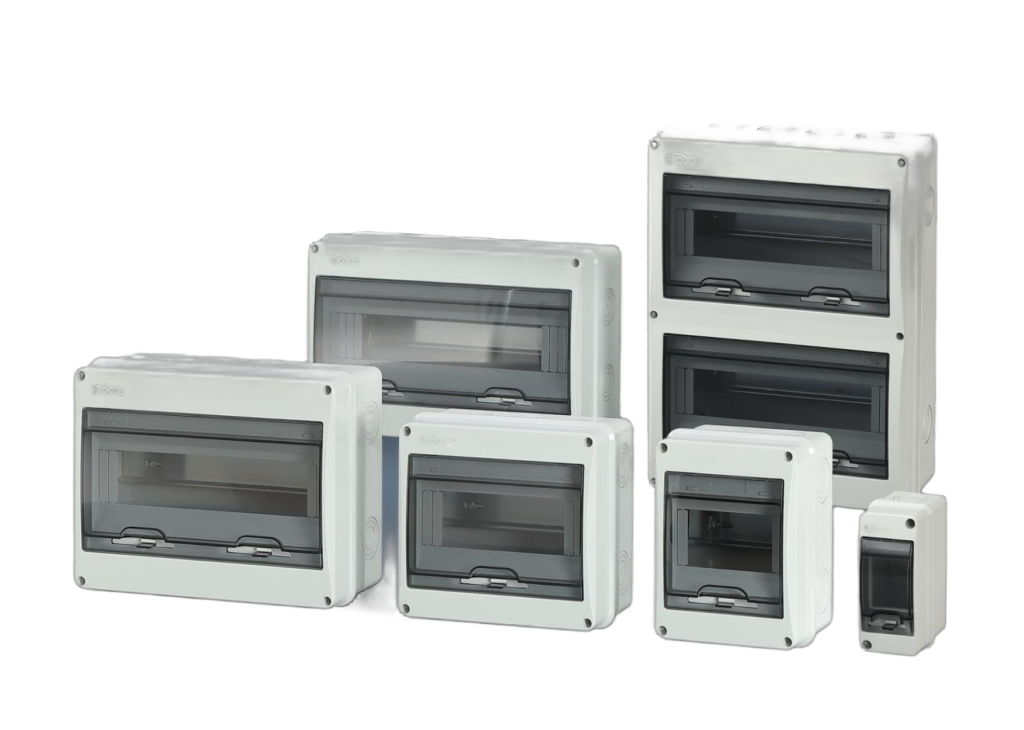

HT-Series Distribution Boxes

Velkor HT-Series Distribution Boxes provide ABS or PS enclosures for distribution components.

HT-Series Distribution Boxes Seven cabinet sizes are available with a front access cover. Seven sizes span the HT-02 to HT-24 range. Front cover provides access to the component area. Material options include ABS or PS. TYPICAL APPLICATIONS Distribution components Electrical assemblies Modern Standards for Traditional Products Verified Product verified against Velkor quality standards before it […]

MATERIAL

ABS or PS

Catalog No.

HT-02, HT-05, HT-08, HT-12, HT-15, HT-18, HT-24

ADD TO INQUIRY

REQUEST A QUOTE

HT-Series Distribution Boxes

Seven cabinet sizes are available with a front access cover.

TYPICAL APPLICATIONS

Distribution components

Electrical assemblies

Specifications

HT-Series Distribution Boxes

HT-02, HT-05, HT-08, HT-12, HT-15, HT-18, HT-24

HT-Series Distribution Boxes

Material

ABS or PS

Click a row to add it to your inquiry.

Catalog No.	L (mm)	W (mm)	H (mm)
HT-02	56	125	88
HT-05	129	170	95
HT-08	183	170	95
HT-12	255	200	105
HT-15	309	200	105
HT-18	363	200	110
HT-24	270	360	110

Dimensions are L x W x H in mm.

CUT SHEET (PDF)

Dimensions are L x W x H in mm.

Choose the enclosure dimensions together with the component layout.
