VELKOR STEEL JUNCTION BOXES & COVERS

Octagon Side-Drawn Steel Boxes

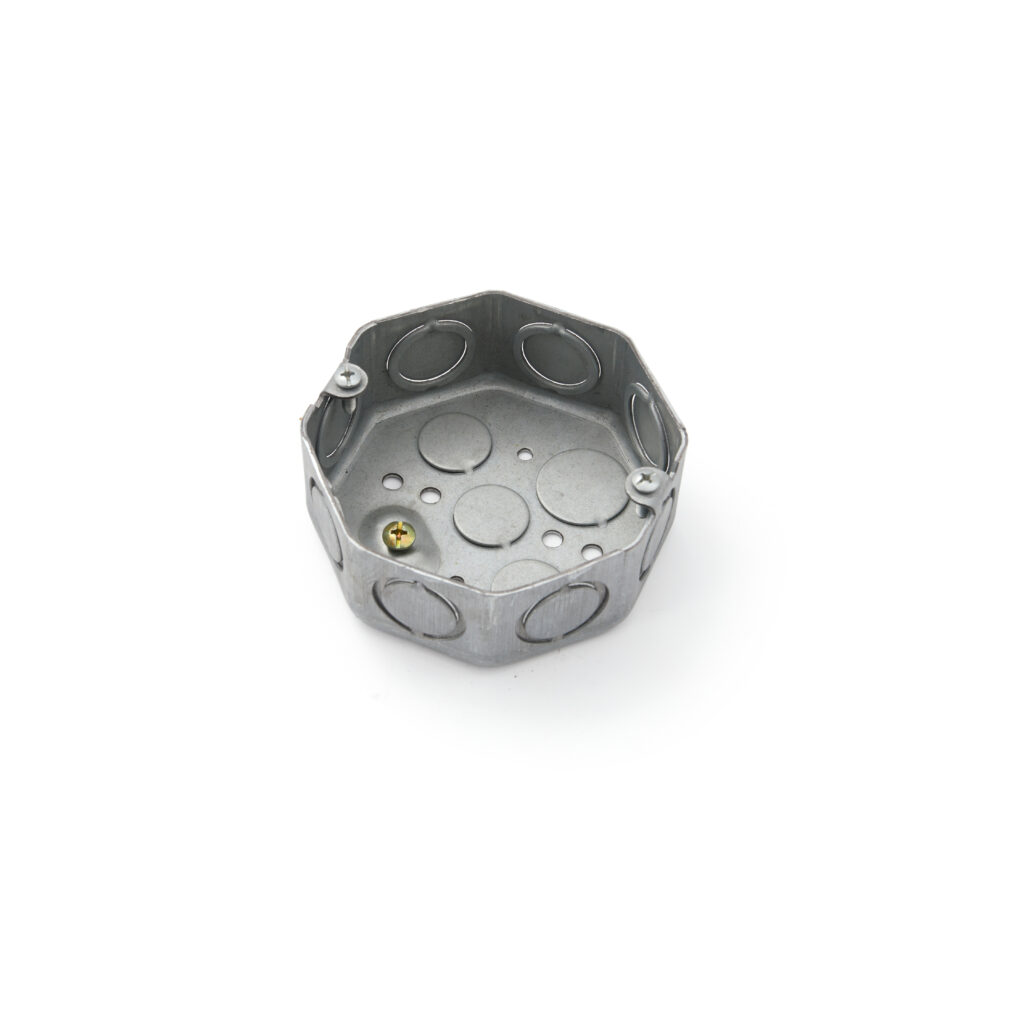

Velkor Octagon Side-Drawn Steel Boxes combine a 1-1/2-inch-deep galvanized steel body with eight side combination knockouts.

Octagon Side-Drawn Steel Boxes Two versions provide different bottom knockout arrangements. Eight side CKO openings provide multiple conduit entry positions. 22.8-cubic-inch capacity is listed for both models. TYPICAL APPLICATIONS Lighting connections Wiring connections Modern Standards for Traditional Products Verified Product verified against Velkor quality standards before it ships. PRECISE Precision in every detail, from engineering […]

MATERIAL

Steel

FINISH

Galvanized

Catalog No.

58151-CKO, 58151-CKOP

ADD TO INQUIRY

REQUEST A QUOTE

Octagon Side-Drawn Steel Boxes

Two versions provide different bottom knockout arrangements.

TYPICAL APPLICATIONS

Lighting connections

Wiring connections

Specifications

Octagon Side-Drawn Steel Boxes

58151-CKO, 58151-CKOP

Octagon Side-Drawn Steel Boxes

Material

Steel

Finish

Galvanized

Click a row to add it to your inquiry.

Catalog No.	KNOCKOUTS - SIDES	KNOCKOUTS - BOTTOM	Depth	Capacity
58151-CKO	8xCKO	3x1/2"+2x3/4"	1-1/2"	22.8 cu. in.
58151-CKOP	8xCKO	2x1/2"+2x3/4"	1-1/2"	22.8 cu. in.

CUT SHEET (PDF)

Outside diameter tolerances: ±.005 in (.13 mm) for trade sizes 1/2–2" (16–53 mm); ±.010 in (.25 mm) for 2-1/2" (63 mm); ±.015 in (.38 mm) for 3" (78 mm); ±.020 in (.51 mm) for 3-1/2" and 4" (91–103 mm).

58151-CKO and 58151-CKOP have different bottom knockout counts.
