VELKOR ENCLOSURES & DISTRIBUTION BOXES

Plastic Junction Boxes

Velkor Plastic Junction Boxes provide enclosures for wiring connections.

Plastic Junction Boxes The R-series table includes eleven size entries with four to sixteen entry holes, covering compact round-format and larger rectangular boxes. RA boxes use flexible entry plugs; RT boxes have molded knockouts. Eleven sizes accommodate different connection layouts. Entry-hole counts range from four to sixteen. Material options include ABS or PS. Two entry […]

MATERIAL

ABS or PS

Catalog No.

R-series

ADD TO INQUIRY

REQUEST A QUOTE

Plastic Junction Boxes

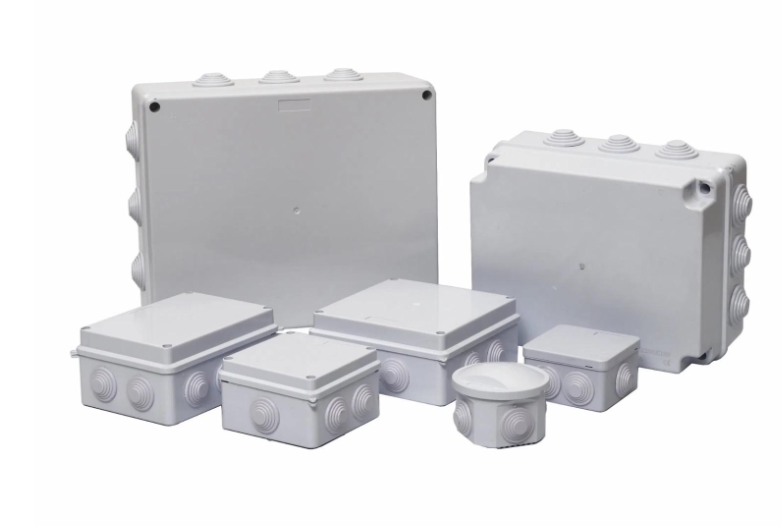

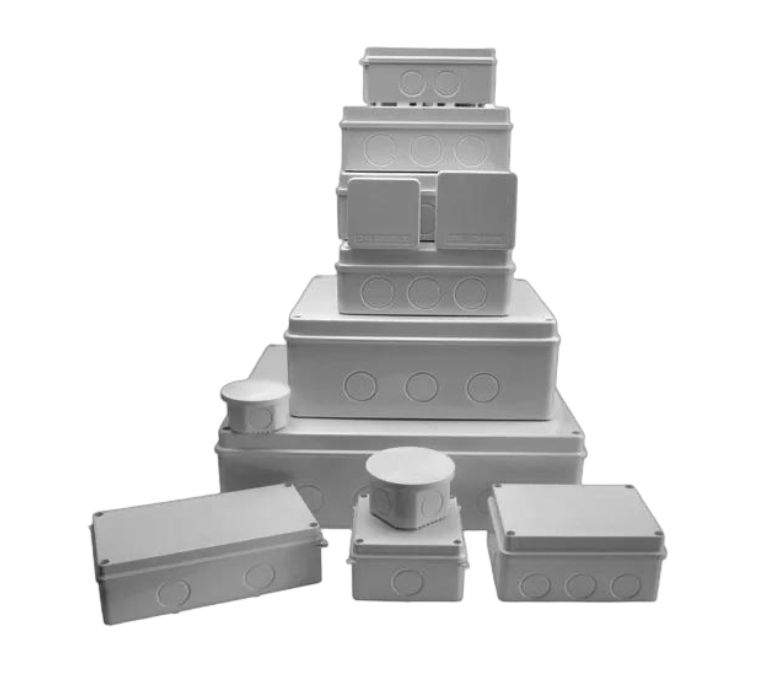

The R-series table includes eleven size entries with four to sixteen entry holes, covering compact round-format and larger rectangular boxes. RA boxes use flexible entry plugs; RT boxes have molded knockouts.

TYPICAL APPLICATIONS

Wiring connections

Cable junctions

Specifications

Plastic Junction Boxes

R-series

Plastic Junction Boxes

Material

ABS or PS

Click a row to add it to your inquiry.

Catalog No.	L (mm)	W (mm)	H (mm)	HOLES
R5050	50	-	50	4
R8050	80	-	50	4
R858550	85	85	50	7
R1001070	100	100	70	7
R15011070	150	110	70	10
R15015070	150	150	70	8
R20015580	200	155	80	8
R20010070	200	100	70	10
R25520080	255	200	80	12
R300250120	300	250	120	12
R400350120	400	350	120	16

Dimensions are in mm. R5050 and R8050 have no separate W value in the table.

CUT SHEET (PDF)

Dimensions are in mm. R5050 and R8050 have no separate W value in the table.

ABS and PS are different material options; this range should not be labeled PVC.
