Steel Enclosures with Mounting Plate

Velkor Steel Enclosures with Mounting Plate provide a cabinet body, front door and internal mounting surface for electrical components.

Steel Enclosures with Mounting Plate Thirteen dimensions range from 300 x 200 x 150 mm to 1400 x 1000 x 400 mm. Internal mounting plate provides a surface for equipment mounting. Polyurethane door gasket follows the door perimeter. Door construction includes formed corners and removable hinges on selected sizes. TYPICAL APPLICATIONS Control equipment Electrical assemblies […]

MATERIAL

Steel

FINISH

Epoxy polyester powder coating

Catalog No.

VK-3215 to VK-141040

ADD TO INQUIRY

REQUEST A QUOTE

Steel Enclosures with Mounting Plate

Thirteen dimensions range from 300 x 200 x 150 mm to 1400 x 1000 x 400 mm.

TYPICAL APPLICATIONS

Control equipment

Electrical assemblies

Specifications

Steel Enclosures with Mounting Plate

VK-3215 to VK-141040

Steel Enclosures with Mounting Plate

Material

Steel

Finish

Epoxy polyester powder coating

Click a row to add it to your inquiry.

Catalog No.	H - MM	W - MM	D - MM
VK-3215	300	200	150
VK-4315	400	300	150
VK-4320	400	300	200
VK-5415	500	400	150
VK-5420	500	400	200
VK-6420	600	400	200
VK-6425	600	400	250
VK-8620	800	600	200
VK-8625	800	600	250
VK-10830	1000	800	300
VK-12830	1200	800	300
VK-12840	1200	800	400
VK-141040	1400	1000	400

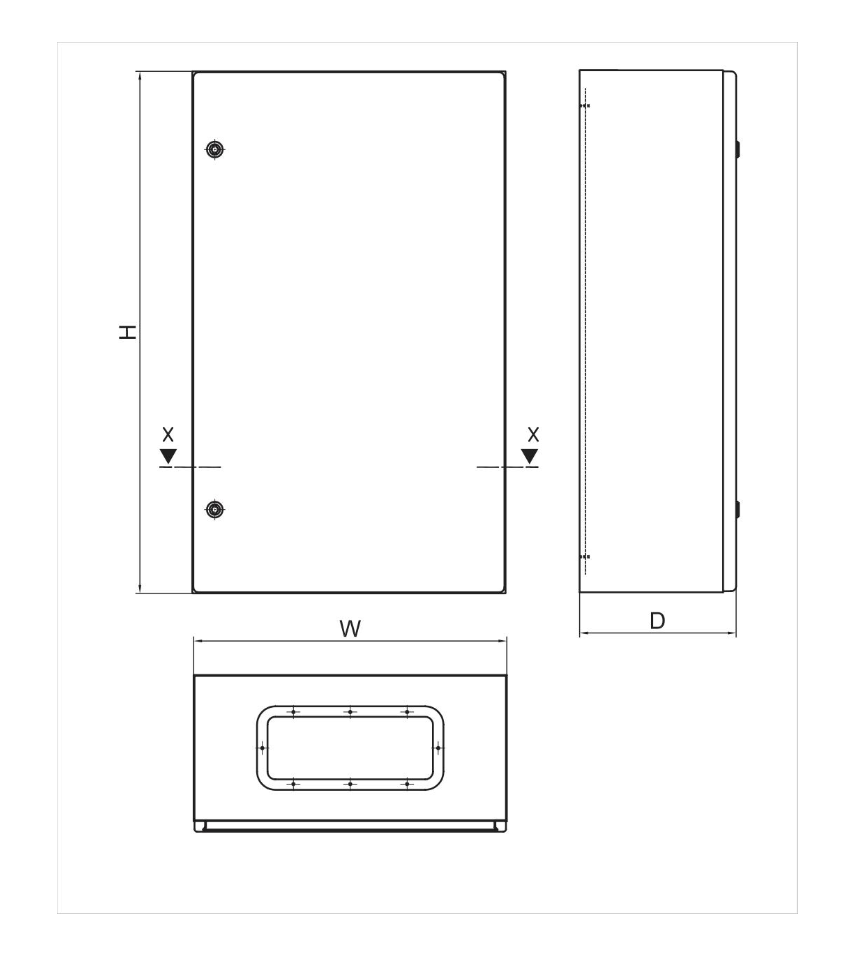

Dimensions are H x W x D in mm.

CUT SHEET (PDF)

Dimensions are H x W x D in mm.

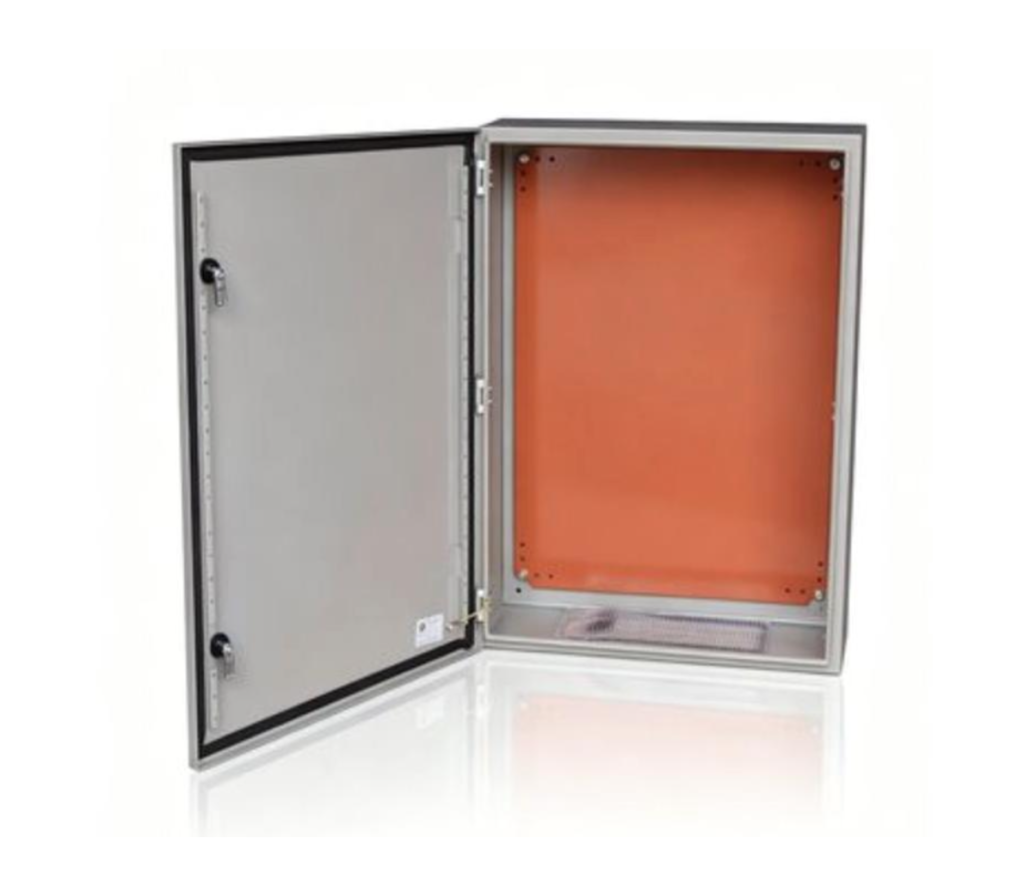

A mounting plate provides the component mounting surface inside the cabinet.
