VELKOR FLEXIBLE CONDUIT SYSTEM

Flexible Metal Conduit – Square Lock

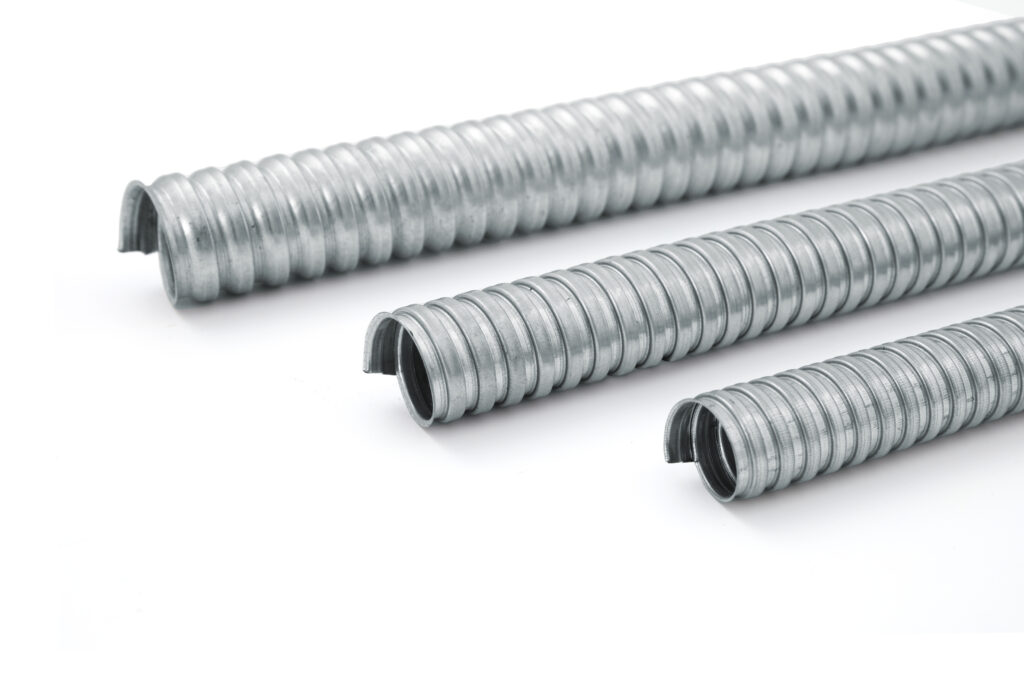

Velkor Flexible Metal Conduit – Square Lock provides a square-lock metallic raceway for flexible conductor routing.

SQUARE-LOCK CONSTRUCTION FOR FLEXIBLE ROUTING This uncoated square-lock conduit forms a flexible metal pathway around changes in route. Its diameter table differs from the Greenfield series, so connector fit should be checked against the square-lock size data rather than assumed from a shared nominal size. The square-lock steel flexible conduit is also known as British […]

MATERIAL

Galvanized steel

FINISH

Galvanized

TRADE SIZES

1/2", 3/4", 1", 1 1/4", 1 1/2", 2", 2 1/2", 3", 4"

Catalog No.

VK-4101B – VK-4110B

ADD TO INQUIRY

REQUEST A QUOTE

Need technical details? Download Spec Sheet (PDF, 1 MB)

SQUARE-LOCK CONSTRUCTION FOR FLEXIBLE ROUTING

This uncoated square-lock conduit forms a flexible metal pathway around changes in route. Its diameter table differs from the Greenfield series, so connector fit should be checked against the square-lock size data rather than assumed from a shared nominal size.

The square-lock steel flexible conduit is also known as British standard flexible conduit. Many people call it light-duty steel flexible conduit. Unlike the greenfield steel flexible conduit, which is heavy-duty and it provides stronger protection to the wire.

Flexible Metal Conduit – Greenfield

TYPICAL APPLICATIONS

Equipment connections

Offset routing

Conductor routing

Specifications

Flexible Metal Conduit – Square Lock

VK-4101B – VK-4110B

Flexible Metal Conduit – Square Lock

Material

Galvanized steel

Finish

Galvanized

Click a row to add it to your inquiry.

Catalog No.	Trade size	ID min (mm)	ID max (mm)	OD min (mm)	OD max (mm)
VK-4101B	1/2"	12.20	12.80	15.00	15.80
VK-4102B	3/4"	18.60	19.50	21.50	22.50
VK-4103B	1"	24.60	25.60	28.00	28.80
VK-4104B	1 1/4"	31.50	32.30	36.60	38.00
VK-4105B	1 1/2"	37.80	38.50	41.60	43.00
VK-4106B	2"	49.80	50.60	55.20	56.20
VK-4107B	2 1/2"	62.50	63.50	69.40	70.80
VK-4108B	3"	75.50	76.50	82.50	83.80
VK-4110B	4"	101.50	102.50	108.00	109.10

CUT SHEET (PDF)

Outside diameter tolerances: ±.005 in (.13 mm) for trade sizes 1/2–2" (16–53 mm); ±.010 in (.25 mm) for 2-1/2" (63 mm); ±.015 in (.38 mm) for 3" (78 mm); ±.020 in (.51 mm) for 3-1/2" and 4" (91–103 mm).

Select connectors by the actual conduit construction and diameter range, not nominal size alone.
