VELKOR FLEXIBLE CONDUIT SYSTEM

Liquid-Tight Flexible Metal Conduit – Interlock

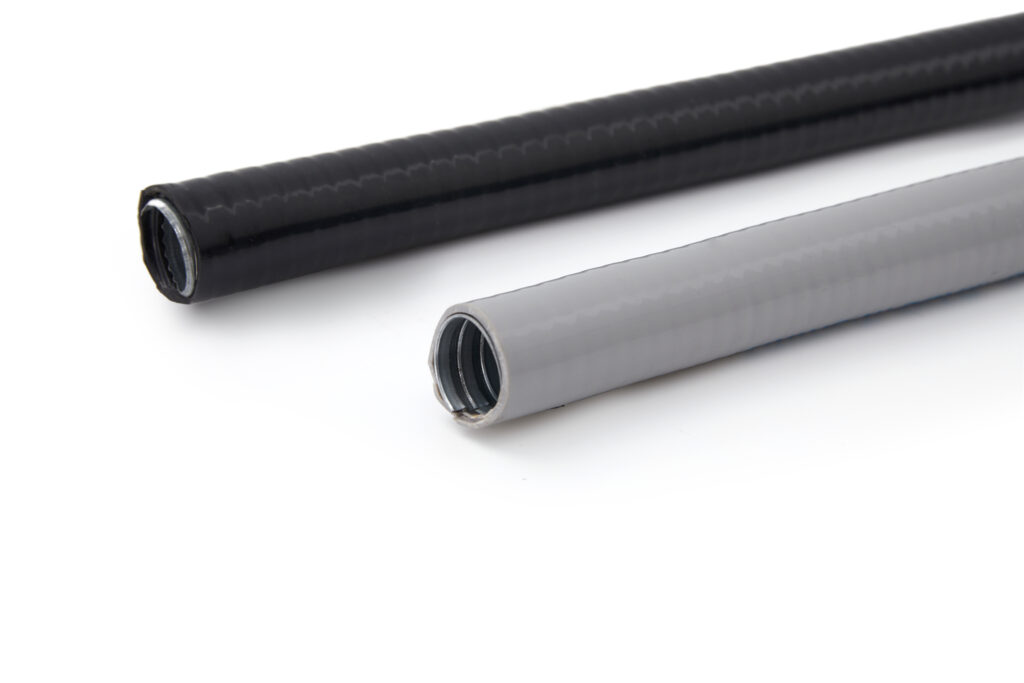

Velkor interlocked flexible metal conduit combines a metallic core and outer jacket for flexible connections to equipment and enclosures.

AN INTERLOCKED CORE WITH AN OUTER JACKET The interlock construction distinguishes this jacketed metal conduit from the unjacketed Greenfield and square-lock ranges. Normally, interlock design has better performance, it is stronger tha regular square lock design, but what it has to lose is flexibility. It is not as flexible as the square lock, and the […]

MATERIAL

Metal core with outer jacket

TRADE SIZES

1/2"–4"

Catalog No.

VK6101-VK6110

ADD TO INQUIRY

REQUEST A QUOTE

AN INTERLOCKED CORE WITH AN OUTER JACKET

The interlock construction distinguishes this jacketed metal conduit from the unjacketed Greenfield and square-lock ranges. Normally, interlock design has better performance, it is stronger tha regular square lock design, but what it has to lose is flexibility. It is not as flexible as the square lock, and the bending radius is smaller than others. Its flexible form accommodates changes in route between fixed conduit and equipment. The conduit and connector must be selected together for the intended installation.

This range combines an interlocked metallic core with an outer jacket. By comparison, Greenfield flexible metal conduit and uncoated square-lock conduit expose the metal conduit surface, while PVC-coated square-lock conduit combines a different core construction with a covering. The choice involves both the core and the outer layer; a similar appearance or shared nominal size does not establish the same connector fit or environmental performance.

Flexible Metal Conduit – Greenfield

TYPICAL APPLICATIONS

Equipment connections

Enclosure approaches

Flexible links

Specifications

Liquid-Tight Flexible Metal Conduit – Interlock

VK6101-VK6110

Liquid-Tight Flexible Metal Conduit – Interlock

Material

Metal core with outer jacket

Click a row to add it to your inquiry.

VELKOR CAT#	TRADE SIZE	INSIDE DIAMETER (MM)		OUTSIDE DIAMETER (MM)
VELKOR CAT#	TRADE SIZE	MIN	MAX	MIN	MAX
VK-6101	1/2"	12.30	12.80	17.50	18.00
VK-6102	3/4"	15.80	16.30	20.80	21.30
VK-6103	1"	20.70	21.20	26.20	26.70
VK-6104	1 1/4"	26.20	26.80	32.70	33.40
VK-6105	1 1/2"	34.80	35.40	41.40	48.30
VK-6106	2"	51.30	51.90	59.40	60.30
VK-6107	2 1/2"	63.00	63.60	72.10	73.00
VK-6108	3"	78.00	78.80	87.90	88.90
VK-6110	4"	101.60	102.60	113.20	114.30

CUT SHEET (PDF)

Outside diameter tolerances: ±.005 in (.13 mm) for trade sizes 1/2–2" (16–53 mm); ±.010 in (.25 mm) for 2-1/2" (63 mm); ±.015 in (.38 mm) for 3" (78 mm); ±.020 in (.51 mm) for 3-1/2" and 4" (91–103 mm).

Specify the conduit construction, required size and matching connector together when requesting a quotation.
