BM Function Modules

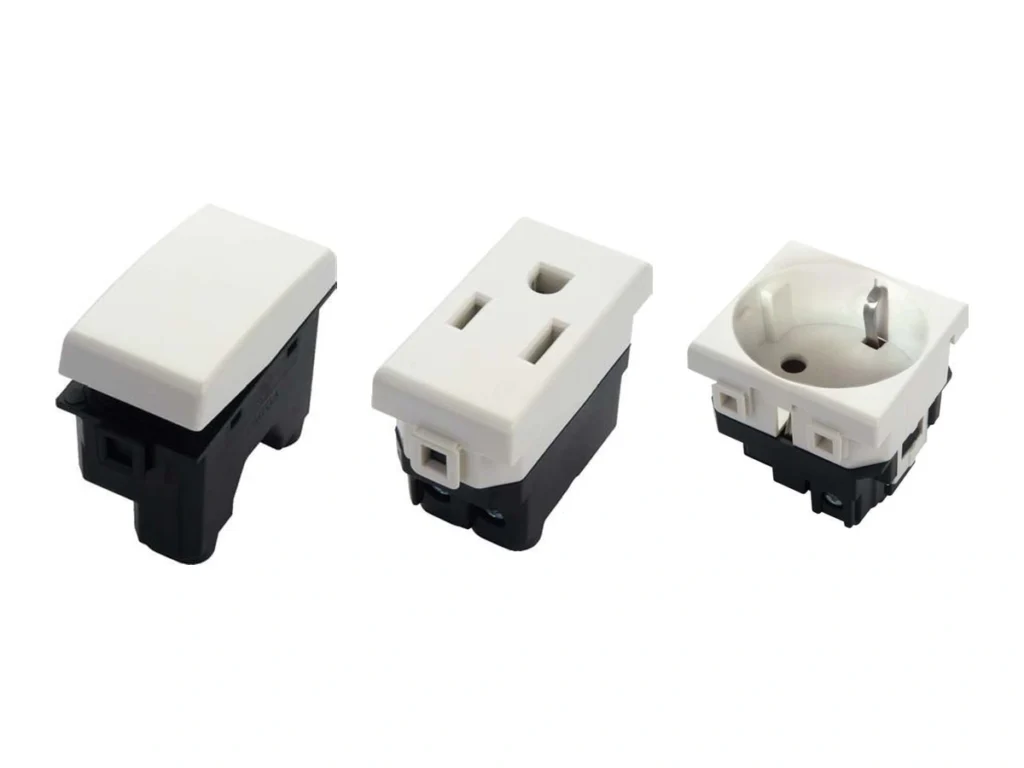

BM function modules are the individual components used to build the range of wall controls and outlets. The selection includes rocker switches, bell controls, power sockets, USB outlets, communication connectors and a blanking module.

Select the component before the finished panel BM100 and BM100G are bell-switch modules. Socket modules have different front openings and ratings, while BM125 and BM128 provide one and two visible USB ports. BM111 provides a plain blanking face. Start with the required electrical or communication function, then confirm the module layout, mounting frame and faceplate […]

FINISH

White face

TRADE SIZES

Individual function modules

Catalog No.

BM100–BM159 / L01 / L02; see model table

ADD TO INQUIRY

REQUEST A QUOTE

Need technical details? Download Spec Sheet (PDF, 4 MB)

Select the component before the finished panel

BM100 and BM100G are bell-switch modules. Socket modules have different front openings and ratings, while BM125 and BM128 provide one and two visible USB ports. BM111 provides a plain blanking face.

Start with the required electrical or communication function, then confirm the module layout, mounting frame and faceplate as one assembly. Similar front openings alone do not establish interchangeability. For USB models, request confirmation of the output allocation before specifying simultaneous charging.

Coordinate these components with mounting frames and decorative faceplates. Compare assemblies without faceplates for frame-mounted units.

https://velkor.co/product/bm-decorative-faceplates/

TYPICAL APPLICATIONS

Panel assembly

Module selection

Specifications

FUNCTION MODULES

BM / L modules

BM FUNCTION MODULES

Finish

White face

Click a row to add it to your inquiry.

Model	Configuration	Catalogue rating	Finish
BM100	Bell switch	10A/120-250V	White face
BM101	Rocker switch	10A/120-250V	White face
BM101.3W	Rocker switch (.3W)	10A/120-250V	White face
BM100G	Bell switch, G model	10A/120-250V	White face
BM101G	Rocker switch, G model	10A/120-250V	White face
BM101G.3W	Rocker switch, G model (.3W)	10A/120-250V	White face
BM102	Socket	15A/120-250V	White face
BM102TR	Socket with shutter	15A/120-250V	White face
BM103	Socket	15A/125V	White face
BM107	Socket	16A/250V	White face
BM117	Recessed socket	16A/250V	White face
BM127	Recessed socket	16A/250V	White face
BM112	Socket	10A/250V	White face
BM120	Socket	15A/120-250V	White face
BM153	Arrow-marked control	10A/120-250V	White face
BM104	Two-hole socket; 4mm label	10A/250V	White face
BM105	Two-hole socket; 5mm label	16A/250V	White face
BM111	Blanking module	—	White face
BM151	I/O-marked rocker	16A/120-250V	White face
BM106	Socket	15A/120-250V	White face
BM136	Two-outlet module	15A/120-250V	White face
BM138	Two-outlet module	15A/120-250V	White face
BM137	Two-outlet module	15A/120-250V	White face
BM139	Three-outlet module	15A/120-250V	White face
BM125	Single USB outlet	2.1A/5V	White face
BM128	Two USB outlets	2.1A/5V	White face
BM159	Bell	—	White face
BM126	TV outlet	—	White face
BM109	Telephone outlet	—	White face
BM118	LAN outlet	—	White face
BM108	TV outlet	—	White face
L01	Accessory	110V	—
L02	Accessory	220V	—

Select the complete model reference and finish when adding an item to your inquiry.

CUT SHEET (PDF)

A function module is a component; select the corresponding mounting frame and faceplate separately from the finished-unit models.

Specify the complete model reference and finish in your inquiry.
