Home IEC 61386 Conduit System 90° Metric EMT Conduit Elbow – Steel

Factory-Formed Direction Change for Metric EMT Routes

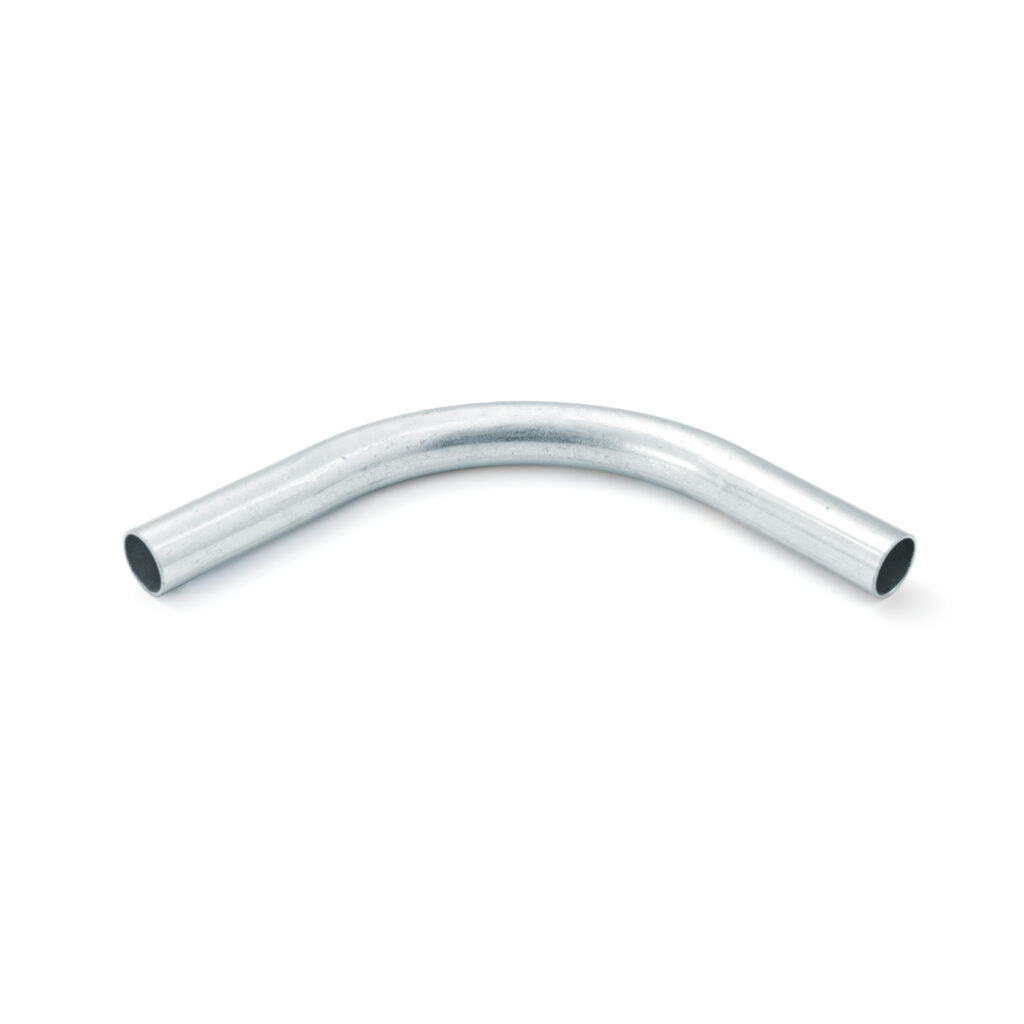

90° Metric EMT Conduit Elbow – Steel

Velkor 90° Metric EMT Steel Elbows provide a curved direction change between conduit sections. Five sizes from 20 to 50 mm allow the route to turn through 90 degrees without forming that bend from straight conduit on site. Complies with IEC 61386-1 and IEC 61386-21.

PRE-FORMED 90° BENDS FOR METRIC EMT This steel elbow provides a ready-made 90° turn in an EMT run. Using a pre-formed bend removes the need to make that bend on site and gives repeated corners the same angle. The curved steel tube keeps the conductors enclosed through the change in direction. Pre-formed 90° angle reduces […]

MATERIAL

Steel

FINISH

Electro-galvanized

TRADE SIZES

20–50 mm

Catalog No.

IEC-81–IEC-85

ADD TO INQUIRY

REQUEST A QUOTE

PRE-FORMED 90° BENDS FOR METRIC EMT

This steel elbow provides a ready-made 90° turn in an EMT run. Using a pre-formed bend removes the need to make that bend on site and gives repeated corners the same angle. The curved steel tube keeps the conductors enclosed through the change in direction.

TYPICAL APPLICATIONS

Wall-to-ceiling turns

equipment approaches

planned right-angle changes in metric EMT routes

Specifications

90° EMT ELBOW

IEC-81–IEC-85

90° METRIC EMT STEEL ELBOW

Standard

IEC 61386-1; IEC 61386-21

Material

Steel

Finish

Electro-galvanized

Click a row to add it to your inquiry.

Catalog No.	Metric Conduit Size	Angle
IEC-81	20 mm	90°
IEC-82	25 mm	90°
IEC-83	32 mm	90°
IEC-84	40 mm	90°
IEC-85	50 mm	90°

CUT SHEET (PDF)

Every size in this table is a pre-formed 90° steel elbow.

The five sizes are 20, 25, 32, 40 and 50 mm
