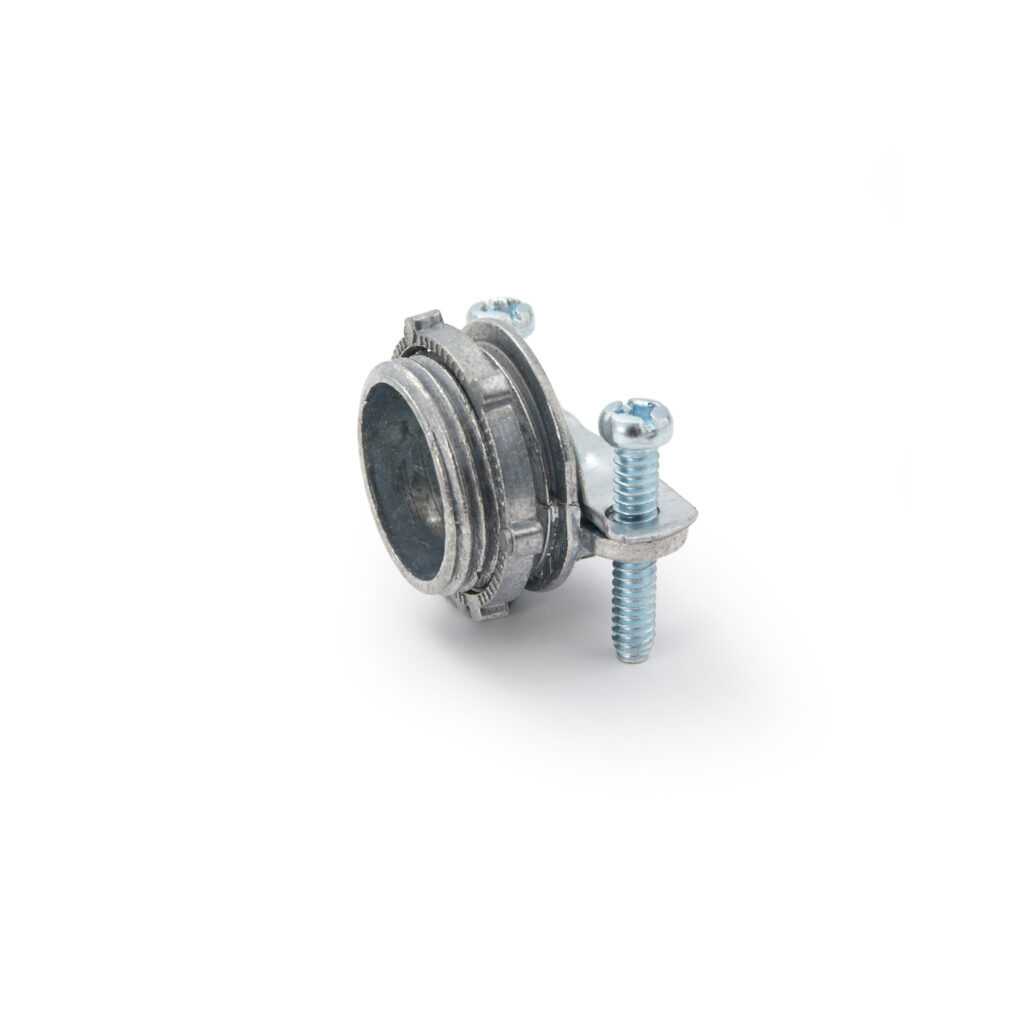

Clamp-Type BX/MC Cable Connector – Zinc Die Cast

Velkor zinc die-cast clamp-type cable connectors provide a clamping connection at an enclosure entry. Match the model to the specified cable and opening.

A CLAMP CONNECTION AT THE ENCLOSURE ENTRY This zinc die-cast connector uses a clamp arrangement to retain cable at an enclosure entry. Designed for BX and MC cable. “BX is a historical brand name for Armored Cable (AC), while MC stands for Metal-Clad cable.” Selection depends on the cable construction and allowable clamping range, as […]

MATERIAL

Zinc die cast

FINISH

Natural Zinc Alloy Finish

Catalog No.

VK-191 – VK-196

ADD TO INQUIRY

REQUEST A QUOTE

A CLAMP CONNECTION AT THE ENCLOSURE ENTRY

This zinc die-cast connector uses a clamp arrangement to retain cable at an enclosure entry. Designed for BX and MC cable.

“BX is a historical brand name for Armored Cable (AC), while MC stands for Metal-Clad cable.”

Selection depends on the cable construction and allowable clamping range, as well as the enclosure opening.

This product retains cable at an enclosure entry, whereas the liquid-tight straight conduit connector terminates a compatible flexible conduit system. These are different selection tasks: cable retention depends on cable construction and clamping range, while conduit termination depends on the conduit and connector interface. The zinc die-cast body alone does not identify the permitted cable type.

Liquid-Tight Straight Connector – Zinc Die Cast

TYPICAL APPLICATIONS

Cable entries

Panel connections

Cable termination

SPECIFICATIONS

Clamp-Type Cable Connector – Zinc Die Cast

VK-191 – VK-196

Clamp-Type Cable Connector – Zinc Die Cast

Material

Zinc die cast

Finish

Natural Zinc Alloy Finish

CUT SHEET (PDF)

Outside diameter tolerances: ±.005 in (.13 mm) for trade sizes 1/2–2" (16–53 mm); ±.010 in (.25 mm) for 2-1/2" (63 mm); ±.015 in (.38 mm) for 3" (78 mm); ±.020 in (.51 mm) for 3-1/2" and 4" (91–103 mm).

Provide the cable type, outside diameter and enclosure opening so the correct connector can be selected.
