Home Flexible Conduit System Non-Metallic Liquid-Tight 90° Connector – PVC

VELKOR FLEXIBLE CONDUIT SYSTEM

Non-Metallic Liquid-Tight 90° Connector – PVC

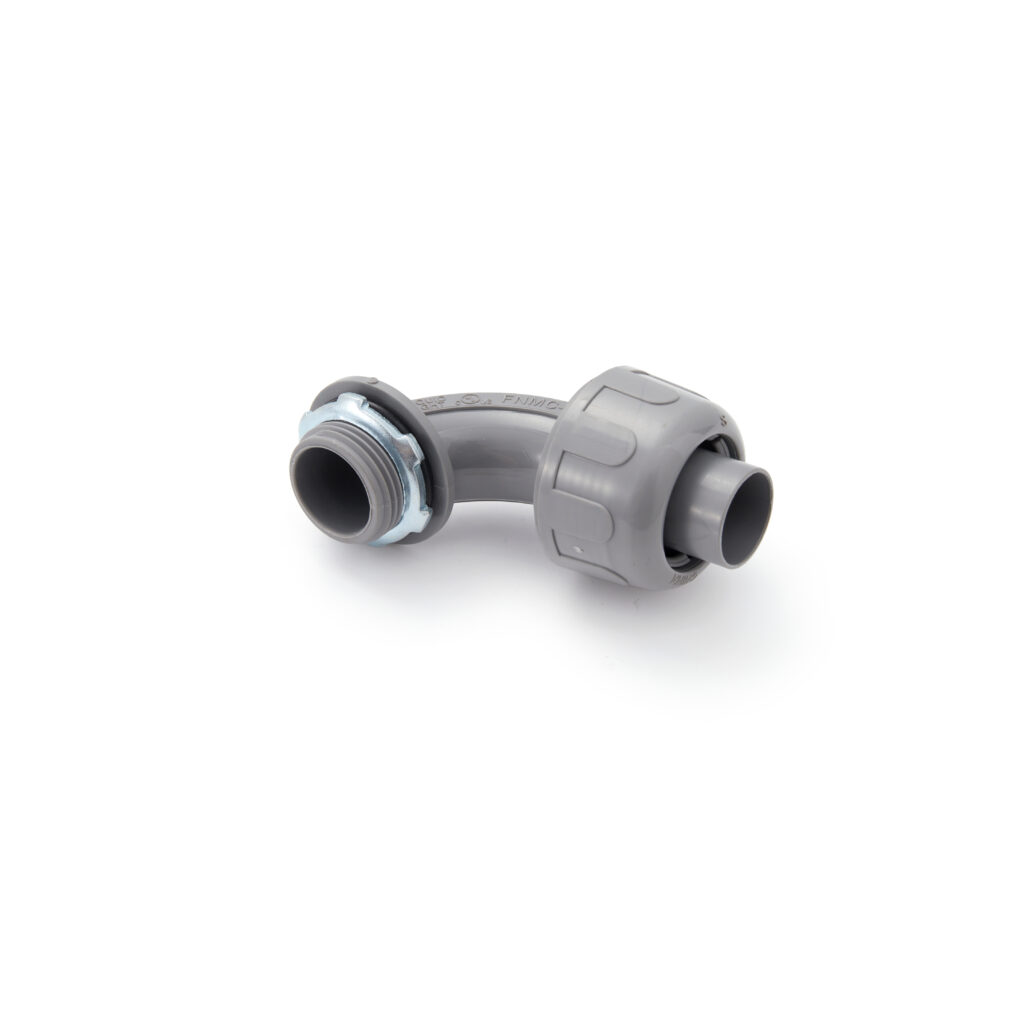

Velkor Non-Metallic Liquid-Tight 90° Connector – PVC connects non-metallic liquid-tight flexible conduit to an enclosure at a 90-degree angle.

TURN NON-METALLIC CONDUIT AT THE ENCLOSURE The 90-degree PVC connector turns compatible non-metallic liquid-tight flexible conduit at the enclosure entry. This arrangement brings the conduit alongside the panel instead of continuing straight out from its face. This PVC version turns compatible non-metallic flexible conduit at the enclosure, while the straight PVC version keeps the approach […]

MATERIAL

PVC

TRADE SIZES

1/2", 3/4", 1", 1 1/4", 1 1/2", 2"

Catalog No.

VK-P491 – VK-P496

ADD TO INQUIRY

REQUEST A QUOTE

TURN NON-METALLIC CONDUIT AT THE ENCLOSURE

The 90-degree PVC connector turns compatible non-metallic liquid-tight flexible conduit at the enclosure entry. This arrangement brings the conduit alongside the panel instead of continuing straight out from its face.

This PVC version turns compatible non-metallic flexible conduit at the enclosure, while the straight PVC version keeps the approach aligned with the opening. The zinc die-cast liquid-tight 90-degree connector offers a similar entry direction in a different material and connector family. The angle solves the routing question; the actual conduit construction and diameter determine the appropriate connection.

Liquid-Tight 90° Connector – Zinc Die Cast

TYPICAL APPLICATIONS

Equipment entries

Panel connections

Angled approaches

SPECIFICATIONS

Non-Metallic Liquid-Tight 90° Connector – PVC

VK-P491 – VK-P496

Non-Metallic Liquid-Tight 90° Connector – PVC

Material

PVC

Click a row to add it to your inquiry.

VELKOR ITEM NO.	SIZE
VK-P491	1/2"
VK-P492	3/4"
VK-P493	1"
VK-P494	1 1/4"
VK-P495	1 1/2"
VK-P496	2"

CUT SHEET (PDF)

Outside diameter tolerances: ±.005 in (.13 mm) for trade sizes 1/2–2" (16–53 mm); ±.010 in (.25 mm) for 2-1/2" (63 mm); ±.015 in (.38 mm) for 3" (78 mm); ±.020 in (.51 mm) for 3-1/2" and 4" (91–103 mm).

Confirm conduit construction, outside diameter and enclosure entry before choosing the connector; no IP or NEMA rating is specified.
