Single and multiple outlet layouts

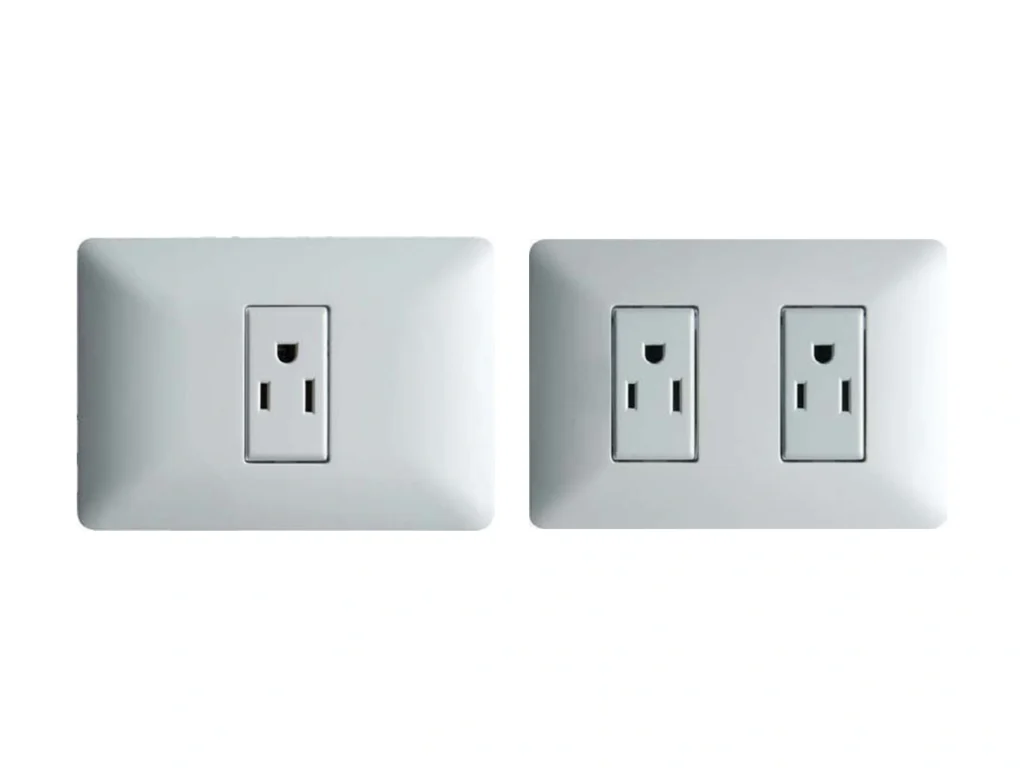

BM Power Sockets

BM power sockets combine different outlet layouts with the BM rectangular faceplate. The range includes single outlets, paired outlets and wider multi-outlet configurations.

Match the outlet layout and rating Select the outlet face required by the connected plug, then check both the current and voltage rating for that exact reference. BM1103 is listed at 15A/125V, while BM1107 is listed at 16A/250V. Single, paired and wider layouts are listed separately so buyers can compare the connection arrangement before choosing […]

FINISH

White, Silver, Champagne and Wood-effect

TRADE SIZES

Single, paired and multiple outlet layouts

Catalog No.

BM1102 / BM1103 / BM1107 and listed models

ADD TO INQUIRY

REQUEST A QUOTE

Need technical details? Download Spec Sheet (PDF, 4 MB)

Match the outlet layout and rating

Select the outlet face required by the connected plug, then check both the current and voltage rating for that exact reference. BM1103 is listed at 15A/125V, while BM1107 is listed at 16A/250V. Single, paired and wider layouts are listed separately so buyers can compare the connection arrangement before choosing a finish.

Compare BM GFCI Receptacles when the specification calls for a ground-fault device. For additional functions at the same wall position, see BM USB Outlets or BM Switch and Socket Combinations.

BM Switch and Socket Combinations

TYPICAL APPLICATIONS

Power outlets

Wall panels

Specifications

POWER SOCKETS

BM POWER SOCKETS

BM POWER SOCKETS

Finish

White, Silver, Champagne and Wood-effect

Click a row to add it to your inquiry.

Model	Configuration	Catalogue rating	Finish
BM1102	Single outlet	15A/120-250V	White
BM1103	Single outlet	15A/125V	White
BM1107	Single outlet	16A/250V	White
BM1117	Recessed single outlet	16A/250V	White
BM1127	Recessed single outlet	16A/250V	White
BM1102.SLV	Single outlet	15A/120-250V	Silver
BM1103.SLV	Single outlet	15A/125V	Silver
BM1107.SLV	Single outlet	16A/250V	Silver
BM1117.SLV	Recessed single outlet	16A/250V	Silver
BM1127.SLV	Recessed single outlet	16A/250V	Silver
BM1206.SLV	Two-outlet face	15A/120-250V	Silver
BM1208.SLV	Two-outlet face	15A/120-250V	Silver
BM1102.CHP	Single outlet	15A/120-250V	Champagne
BM1103.CHP	Single outlet	15A/125V	Champagne
BM1107.CHP	Single outlet	16A/250V	Champagne
BM1117.CHP	Recessed single outlet	16A/250V	Champagne
BM1127.CHP	Recessed single outlet	16A/250V	Champagne
BM1206.CHP	Two-outlet face	15A/120-250V	Champagne
BM1208.CHP	Two-outlet face	15A/120-250V	Champagne
BM1102.WOD	Single outlet	15A/120-250V	Wood-effect
BM1103.WOD	Single outlet	15A/125V	Wood-effect
BM1107.WOD	Single outlet	16A/250V	Wood-effect
BM1117.WOD	Recessed single outlet	16A/250V	Wood-effect
BM1127.WOD	Recessed single outlet	16A/250V	Wood-effect
BM1206.WOD	Two-outlet face	15A/120-250V	Wood-effect
BM1208.WOD	Two-outlet face	15A/120-250V	Wood-effect
BM1115	Single two-round-hole outlet	16A/250V	White
BM1112	Single outlet	10A/250V	White
BM1223	Single outlet	15A/120-250V	White
BM1202	Two separate outlets	15A/120-250V	White
BM1203	Two separate outlets	15A/125V	White
BM1209	Three-outlet face	15A/120-250V	White
BM1204	Two-outlet face	15A/120-250V	White
BM1208	Two-outlet face	15A/120-250V	White
BM1206	Two-outlet face	15A/120-250V	White
BM1205	Two separate two-round-hole outlets	10A/250V	White

Select the complete model reference and finish when adding an item to your inquiry.

CUT SHEET (PDF)

Include the required plug interface, supply voltage and complete model reference in your inquiry. A matching faceplate or higher current figure alone does not establish interchangeability.

Select the complete model reference and confirm the required interface before ordering.
