VELKOR FLEXIBLE CONDUIT SYSTEM

Flex-to-Rigid Connectors – Zinc Die Cast

Velkor zinc die-cast flex-to-rigid connectors join flexible and rigid conduit, with three-screw hexagon and one-screw quincunx versions.

CHOOSE THE FLEX-TO-RIGID CONNECTION CONFIGURATION These fittings join a flexible conduit section to rigid conduit. The three-screw hexagon and one-screw quincunx configurations have separate catalog references, allowing buyers to specify the body and fastening arrangement with the trade size. Choose this fitting when the transition is between flexible conduit and a rigid conduit section. The […]

MATERIAL

Zinc die cast

FINISH

Natural Zinc Alloy Finish

TRADE SIZES

1/2", 3/4", 1", 1 1/4", 1 1/2", 2", 2 1/2", 3", 4"

Catalog No.

VK-141R – VK-150R / VK-151R – VK-160R

ADD TO INQUIRY

REQUEST A QUOTE

CHOOSE THE FLEX-TO-RIGID CONNECTION CONFIGURATION

These fittings join a flexible conduit section to rigid conduit. The three-screw hexagon and one-screw quincunx configurations have separate catalog references, allowing buyers to specify the body and fastening arrangement with the trade size.

Choose this fitting when the transition is between flexible conduit and a rigid conduit section. The EMT-to-flex connector is the alternative family when the fixed side is EMT, while a straight enclosure connector ends the flexible run at a box. Within this flex-to-rigid range, the three-screw hexagon and one-screw quincunx versions retain separate ordering references so the fastening arrangement can be specified explicitly. Please remember both of the connectors are designed for liquid-tight and PVC-coated flexible conduits, not for steel flexible conduit.

EMT-to-Flex Connector – Zinc Die Cast

TYPICAL APPLICATIONS

Raceway transitions

Flexible links

Equipment approaches

SPECIFICATIONS

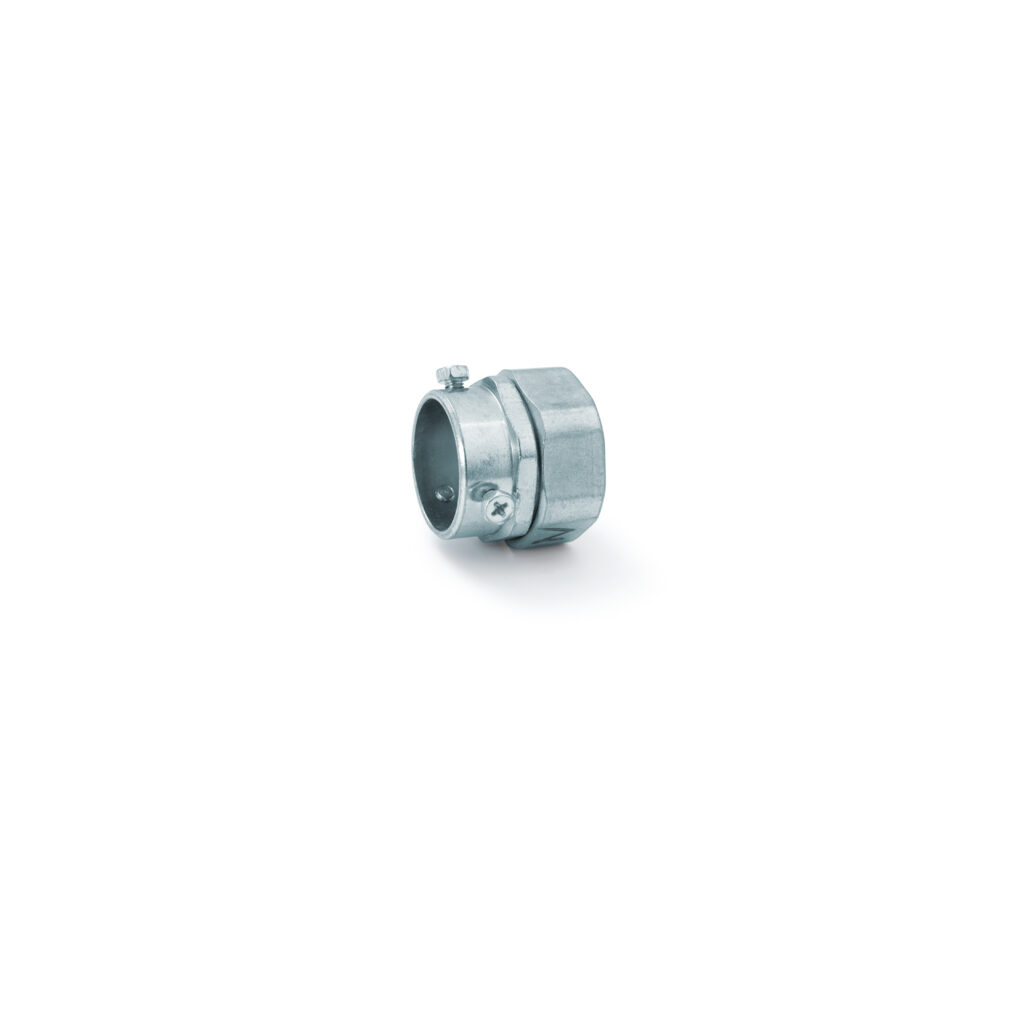

Flex-to-Rigid Connector – Three-Screw Hexagon

VK-141R – VK-150R

Flex-to-Rigid Connector – One-Screw Quincunx

VK-151R – VK-160R

Flex-to-Rigid Connector – Three-Screw Hexagon

Material

Zinc die cast

Finish

Natural Zinc Alloy Finish

Click a row to add it to your inquiry.

VELKOR ITEM NO.	SIZE
VK-141R	1/2"
VK-142R	3/4"
VK-143R	1"
VK-144R	1 1/4"
VK-145R	1 1/2"
VK-146R	2"
VK-147R	2 1/2"
VK-148R	3"
VK-150R	4"

CUT SHEET (PDF)

Flex-to-Rigid Connector – One-Screw Quincunx

Material

Zinc die cast

Finish

Natural Zinc Alloy Finish

Click a row to add it to your inquiry.

VELKOR ITEM NO.	SIZE
VK-151R	1/2"
VK-152R	3/4"
VK-153R	1"
VK-154R	1 1/4"
VK-155R	1 1/2"
VK-156R	2"
VK-157R	2 1/2"
VK-158R	3"
VK-160R	4"

CUT SHEET (PDF)

Outside diameter tolerances: ±.005 in (.13 mm) for trade sizes 1/2–2" (16–53 mm); ±.010 in (.25 mm) for 2-1/2" (63 mm); ±.015 in (.38 mm) for 3" (78 mm); ±.020 in (.51 mm) for 3-1/2" and 4" (91–103 mm).

Confirm both conduit constructions and connection sizes before selecting a transition.
