VELKOR IMC / RMC CONDUIT SYSTEM

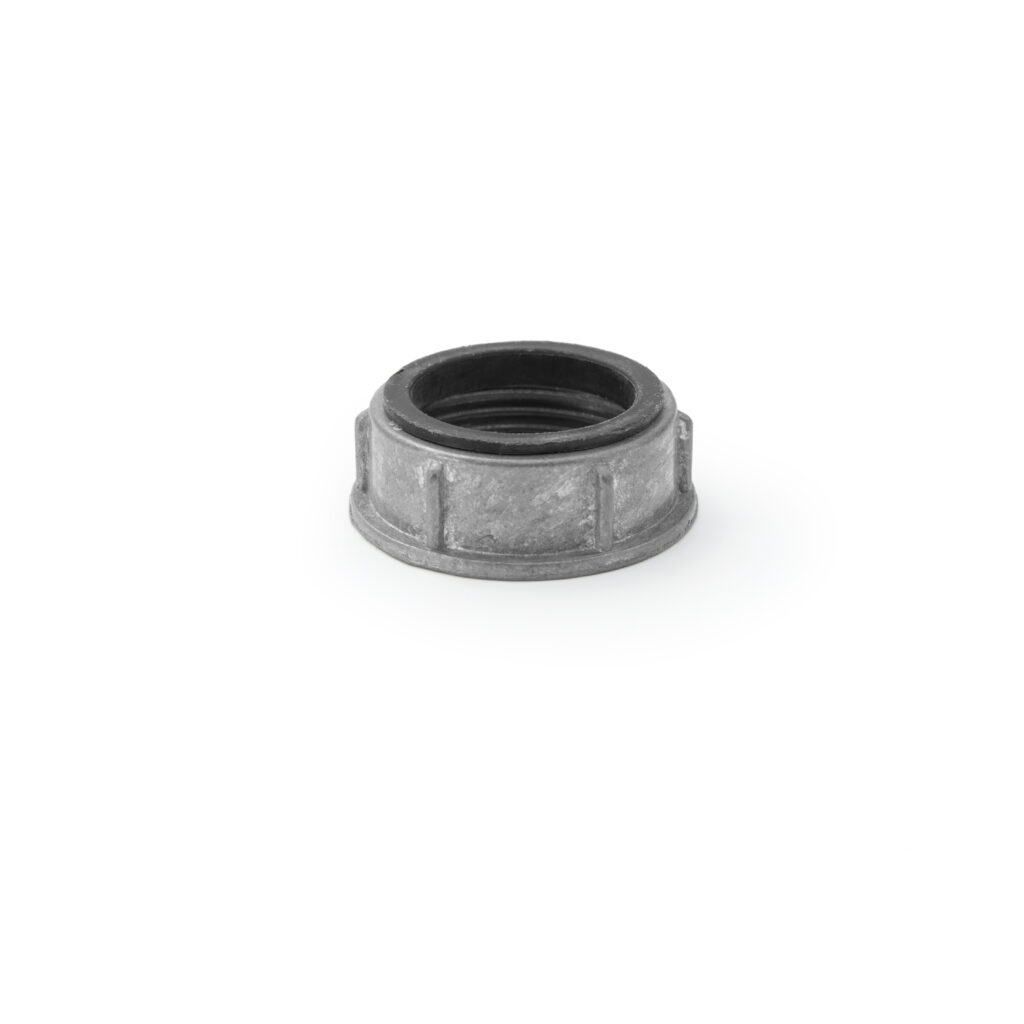

Insulated Rigid Conduit Bushing – Zinc Die Cast

Velkor Insulated Rigid Conduit Bushing – Zinc Die Cast adds an insulated entry surface at a threaded conduit end.

AN INSULATED SURFACE AT THE CONDUCTOR ENTRY Compared with a plain metal bushing, this version adds an insulating surface where conductors pass the threaded conduit end. It is an entry-protection component for the RMC or IMC system, while the grounding insulated version adds a separate lug for a bonding-conductor connection. Select the lug-equipped version when […]

MATERIAL

Zinc die cast

FINISH

Natural Zinc Alloy Finish

TRADE SIZES

1/2", 3/4", 1", 1 1/4", 1 1/2", 2", 2 1/2", 3", 4"

Catalog No.

VK-311 – VK-320

ADD TO INQUIRY

REQUEST A QUOTE

AN INSULATED SURFACE AT THE CONDUCTOR ENTRY

Compared with a plain metal bushing, this version adds an insulating surface where conductors pass the threaded conduit end. It is an entry-protection component for the RMC or IMC system, while the grounding insulated version adds a separate lug for a bonding-conductor connection. Select the lug-equipped version when that connection point is part of the design; insulation alone does not provide the same feature.

Rigid Metal Conduit – Hot-Dip Galvanized Steel

TYPICAL APPLICATIONS

Conduit ends

Conductor entries

Panel wiring

Specifications

Insulated Rigid Conduit Bushing – Zinc Die Cast

VK-311 – VK-320

Insulated Rigid Conduit Bushing – Zinc Die Cast

Material

Zinc die cast

Finish

Natural Zinc Alloy Finish

Click a row to add it to your inquiry.

VELKOR ITEM NO.	SIZE
VK-311	1/2"
VK-312	3/4"
VK-313	1"
VK-314	1 1/4"
VK-315	1 1/2"
VK-316	2"
VK-317	2 1/2"
VK-318	3"
VK-320	4"

CUT SHEET (PDF)

Select the insulation and temperature requirements for the installed conductors; no insulation temperature rating is claimed here.

Length: 10 ft (3.05 m) with a tolerance of ±.25 in (6.35 mm). Kwik-Fit™ EMT available on request.
