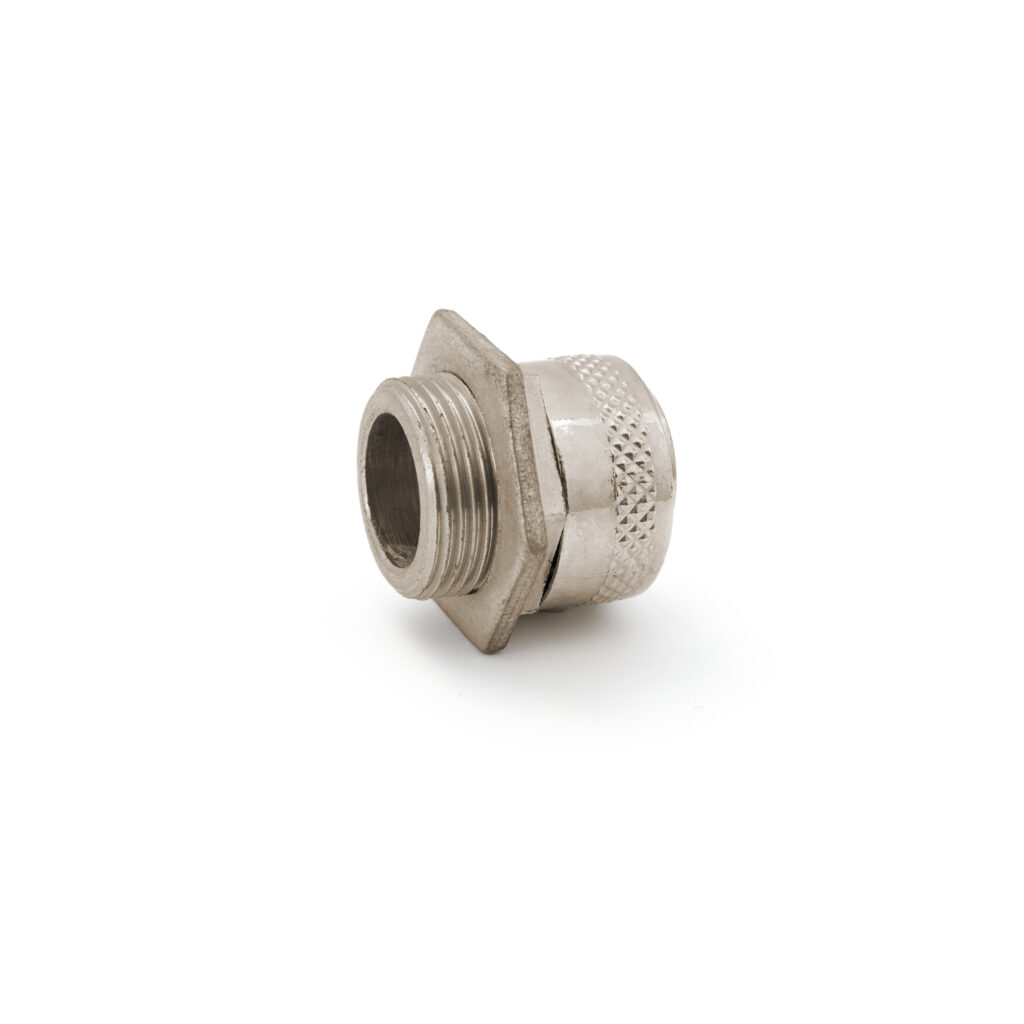

Three-Piece Flexible Conduit Connector – Zinc Die Cast

Velkor Three-Piece Flexible Conduit Connectors provide a zinc die-cast enclosure connection in metric sizes from 16 to 63 mm.

A THREE-PIECE METRIC CONDUIT CONNECTION The three-piece assembly connects compatible flexible conduit to a box or enclosure. Select the catalog reference together with the actual conduit construction and enclosure-entry thread; the metric reference alone does not define those interfaces. The three-piece assembly and metric ordering references distinguish this range from the liquid-tight straight connector range. […]

MATERIAL

Zinc die cast

FINISH

Natural Zinc Alloy Finish

TRADE SIZES

16MM, 20MM, 25MM, 32MM, 40MM, 50MM, 63MM

Catalog No.

VK-16TP – VK-63TP

ADD TO INQUIRY

REQUEST A QUOTE

A THREE-PIECE METRIC CONDUIT CONNECTION

The three-piece assembly connects compatible flexible conduit to a box or enclosure. Select the catalog reference together with the actual conduit construction and enclosure-entry thread; the metric reference alone does not define those interfaces.

The three-piece assembly and metric ordering references distinguish this range from the liquid-tight straight connector range. That comparison identifies different product formats, not interchangeable connections: the actual conduit construction and enclosure-entry thread still determine which fitting is suitable. A 16–63 mm catalog reference should not be treated as a direct replacement for an inch trade size.

TYPICAL APPLICATIONS

Flexible conduit

Box entries

Panel connections

SPECIFICATIONS

Three-Piece Flexible Conduit Connector – Zinc Die Cast

VK-16TP – VK-63TP

Three-Piece Flexible Conduit Connector – Zinc Die Cast

Material

Zinc die cast

Finish

Natural Zinc Alloy Finish

Click a row to add it to your inquiry.

VELKOR ITEM NO.	SIZE
VK-16TP	16MM
VK-20TP	20MM
VK-25TP	25MM
VK-32TP	32MM
VK-40TP	40MM
VK-50TP	50MM
VK-63TP	63MM

CUT SHEET (PDF)

Outside diameter tolerances: ±.005 in (.13 mm) for trade sizes 1/2–2" (16–53 mm); ±.010 in (.25 mm) for 2-1/2" (63 mm); ±.015 in (.38 mm) for 3" (78 mm); ±.020 in (.51 mm) for 3-1/2" and 4" (91–103 mm).

Specify the actual conduit construction, outside diameter and enclosure-entry thread with the catalog size.
