VELKOR IMC / RMC CONDUIT SYSTEM

Grounding Insulated Bushing – Zinc Die Cast

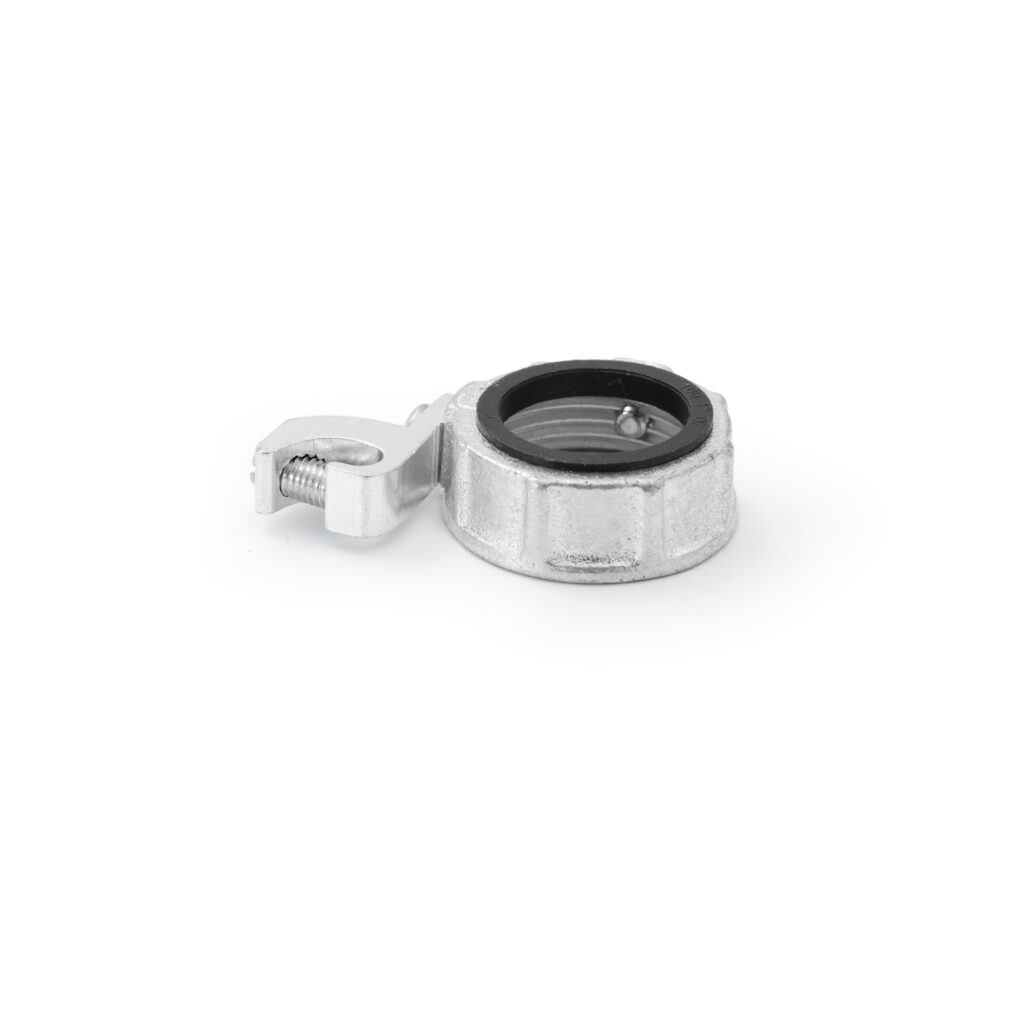

Velkor Grounding Insulated Bushing – Zinc Die Cast combines an insulated conductor entry with a grounding lug at a threaded conduit end.

INSULATED ENTRY WITH A DEDICATED BONDING POINT This version combines two features at the end of an IMC or RMC run: an insulated conductor-entry surface and a grounding lug. A plain metal bushing provides the entry surface without insulation, while an insulated bushing without a lug does not provide this dedicated bonding-conductor connection point. The […]

MATERIAL

Zinc die cast

FINISH

Natural Zinc Alloy Finish

TRADE SIZES

1/2", 3/4", 1", 1 1/4", 1 1/2", 2", 2 1/2", 3", 4"

Catalog No.

VK-321 – VK-330

ADD TO INQUIRY

REQUEST A QUOTE

INSULATED ENTRY WITH A DEDICATED BONDING POINT

This version combines two features at the end of an IMC or RMC run: an insulated conductor-entry surface and a grounding lug. A plain metal bushing provides the entry surface without insulation, while an insulated bushing without a lug does not provide this dedicated bonding-conductor connection point. The grounding version is the relevant choice when the design calls for both features, with lug capacity matched to the specified conductor.

The threaded body mounts at the matching conduit end. Confirm the installation requirements against the project design before selecting the bushing.

Intermediate Metal Conduit

TYPICAL APPLICATIONS

Bonding connections

Panel entries

Conduit ends

Specifications

Grounding Insulated Bushing – Zinc Die Cast

VK-321 – VK-330

Grounding Insulated Bushing – Zinc Die Cast

Material

Zinc die cast

Finish

Natural Zinc Alloy Finish

Click a row to add it to your inquiry.

VELKOR ITEM NO.	SIZE
VK-321	1/2"
VK-322	3/4"
VK-323	1"
VK-324	1 1/4"
VK-325	1 1/2"
VK-326	2"
VK-327	2 1/2"
VK-328	3"
VK-330	4"

CUT SHEET (PDF)

Confirm the lug conductor range and installation requirements before ordering; the lug size is not defined by conduit trade size alone.

Length: 10 ft (3.05 m) with a tolerance of ±.25 in (6.35 mm). Kwik-Fit™ EMT available on request.
